Apache Tomcat Download and Installation

To install Apache Tomcat:

  1. (Optional) It is recommended to update the system with latest security patch.

›_ Console

# dnf -y update

  1. Install OpenJDK For java 8:

›_ Console

# dnf install java-1.8.0-openjdk java-1.8.0-openjdk-devel

For java 11:

›_ Console

# dnf -y install java-11-openjdk java-11-openjdk-devel

  1. Create a non-root user and set its password.

›_ Console

# useradd tomcat
# passwd tomcat

  1. Download Tomcat 10.

›_ Console

# wget https://dlcdn.apache.org/tomcat/tomcat-10/v10.0.27/bin/apache-tomcat-
10.0.27.tar.gz

  1. Create a directory.

›_ Console

# mkdir -p /opt/tomcat

  1. Extract the archived file to /opt/tomcat directory.

›_ Console

# tar -xvf apache-tomcat-10.0.27.tar.gz -C /opt/tomcat --strip-components=1

  1. Change ownership of the /opt/directory to tomcat user.

›_ Console

# chown -R tomcat:tomcat /opt/tomcat

  1. Set executable permissions to scripts.

›_ Console

# chmod +x /opt/tomcat/bin/*.sh

  1. Create Apache Tomcat Systemd file /etc/systemd/system/tomcat.service to manage tomcat service through systemctl and add below lines.

›_ Console

[Unit]
Description=Apache Tomcat Web Application Container
Wants=network.target
After=network.target

[Service]
Type=forking

Environment=JAVA_HOME=/usr/lib/jvm/jre

Environment=CATALINA_PID=/opt/tomcat/temp/tomcat.pid
Environment=CATALINA_HOME=/opt/tomcat
Environment='CATALINA_OPTS=-Xms512M -Xmx1G -Djava.net.preferIPv4Stack=true'
Environment='JAVA_OPTS=-Djava.awt.headless=true'

ExecStart=/opt/tomcat/bin/startup.sh
ExecStop=/opt/tomcat/bin/shutdown.sh
SuccessExitStatus=143

User=tomcat
Group=tomcat
UMask=0007
RestartSec=10
Restart=always

[Install]
WantedBy=multi-user.target


Change the values according to your system configuration.

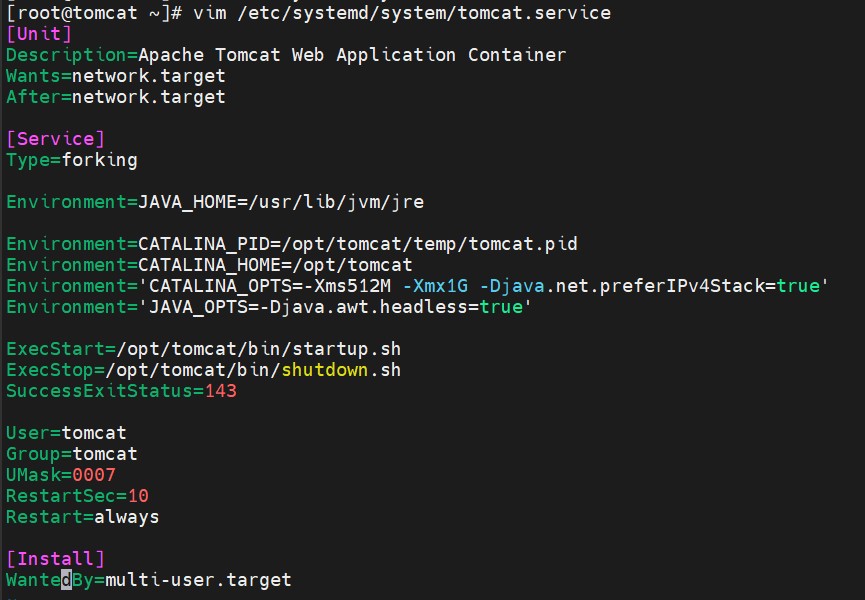

/etc/systemd/system/tomcat.service file output

  1. Reload the daemon using:

›_ Console

# systemctl daemon-reload

  1. Start and Enable Tomcat Service.

›_ Console

# systemctl start tomcat
# systemctl enable tomcat

  1. Confirm Tomcat status that it is running using:

›_ Console

# systemctl status status tomcat

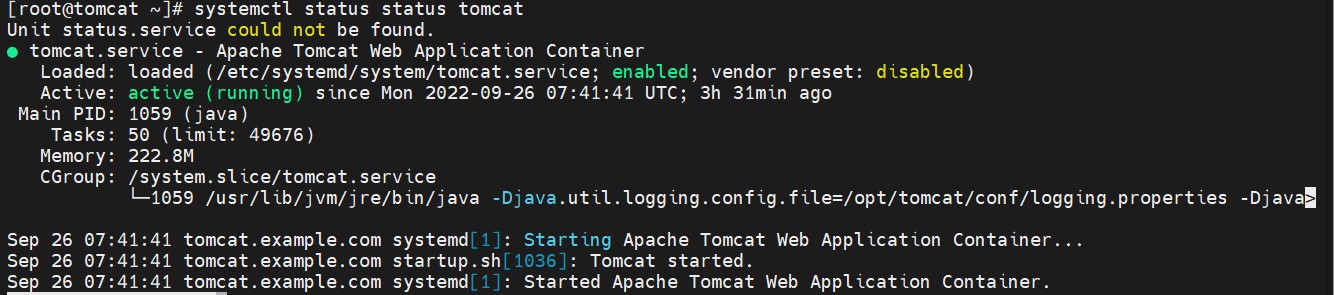

Tomcat service status

13. Open http://<apache_tomcat_-server-ip>:8080 in any web browser and verify if Apache tomcat page is visible.

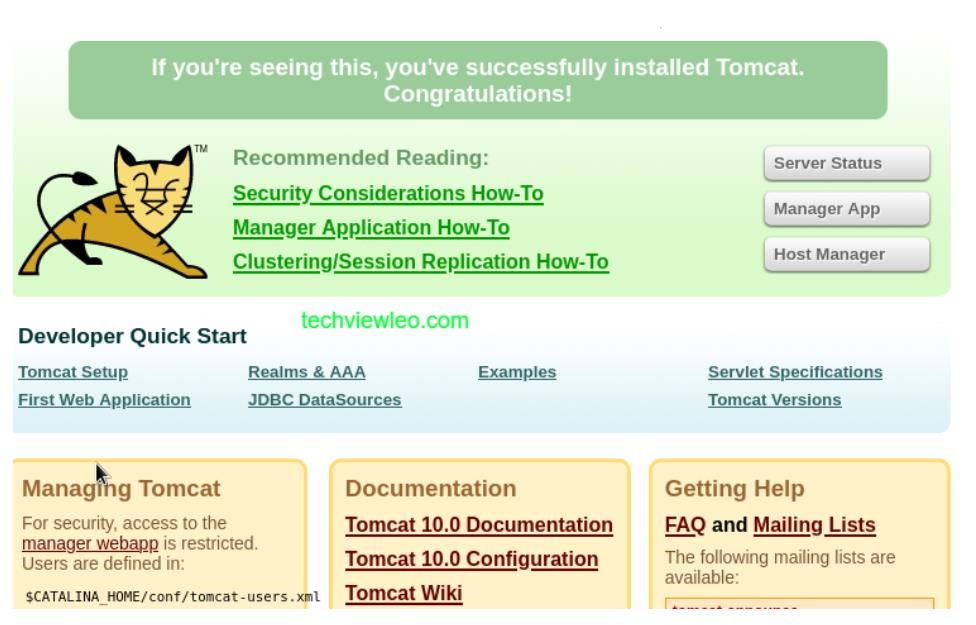

Browser output over page 8080
