Integration Steps on the Ascertia ADSS Server

Follow the steps below to configure the Utimaco u.trust GP HSM as a Crypto Source within the Ascertia ADSS Server.

1. Access the ADSS Server Unity Console as an operator with permission to manage crypto sources.

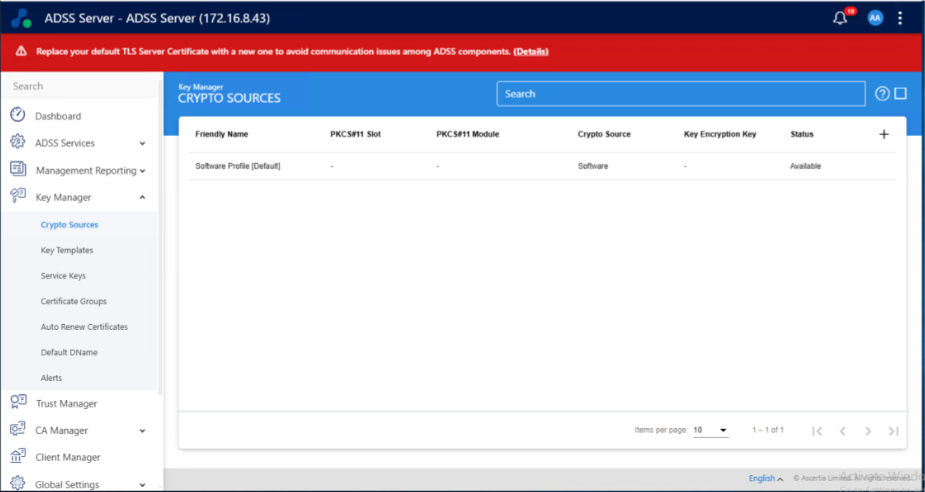

2. Navigate to Key Manager > Crypto Sources, and click + to add a new Crypto Source.

Crypto Sources

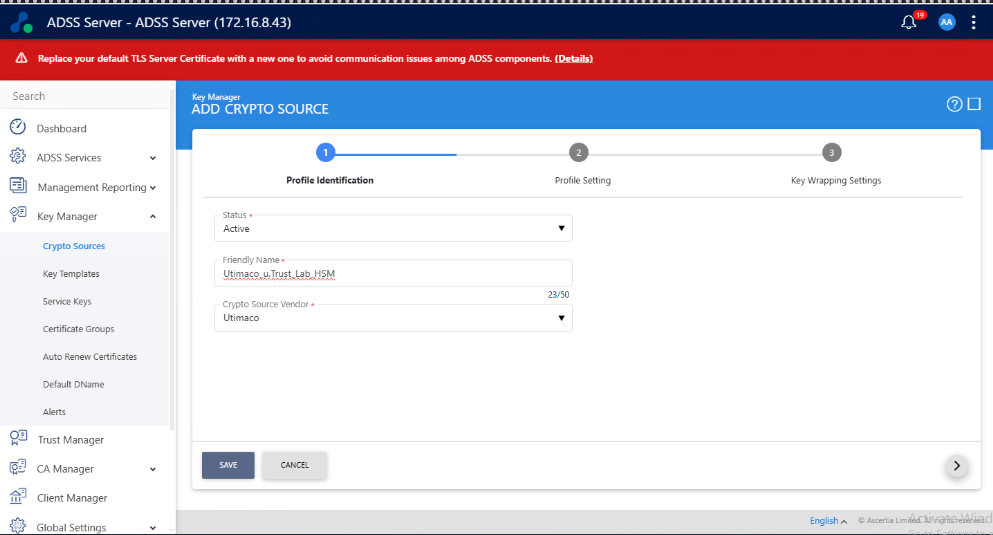

3. The Add Crypto Profile – Profile Identification page will display; enter a friendly name for the new crypto profile. Click > to proceed to the next step.

Add crypto profile – profile identification

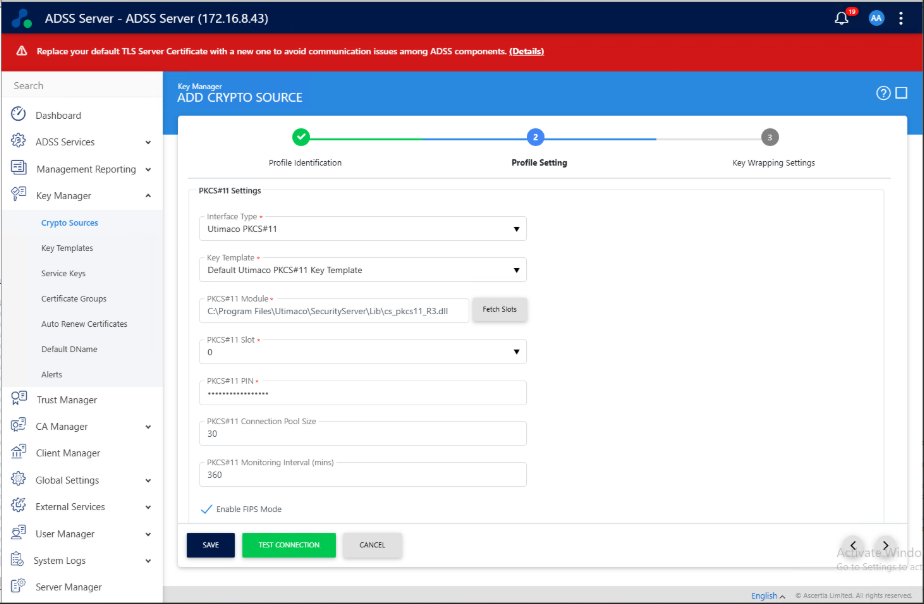

4. The Add Crypto Profile – Profile Setting page will display. In the PKCS#11 Module field, enter the path to the PKCS#11 dll supplied with the Utimaco HSM; by default this is:

   • Windows : C:\Program Files\Utimaco\SecurityServer\Lib\cs_pkcs11_R3.dll

   • Linux: Software/Linux/Crypto_APIs/PKCS11_R3/lib/libcs_pkcs11_R3.so in u.trust GP HSM bundle.

5. Click Fetch Slots.

6. Set the PKCS#11 slot that was initialized earlier.

7. Enter the PKCS#11 PIN created when the normal Crypto User was created.

8. Click the Test Connection button.

9. Click the > button to proceed to the next step.

Add crypto profile – profile setting

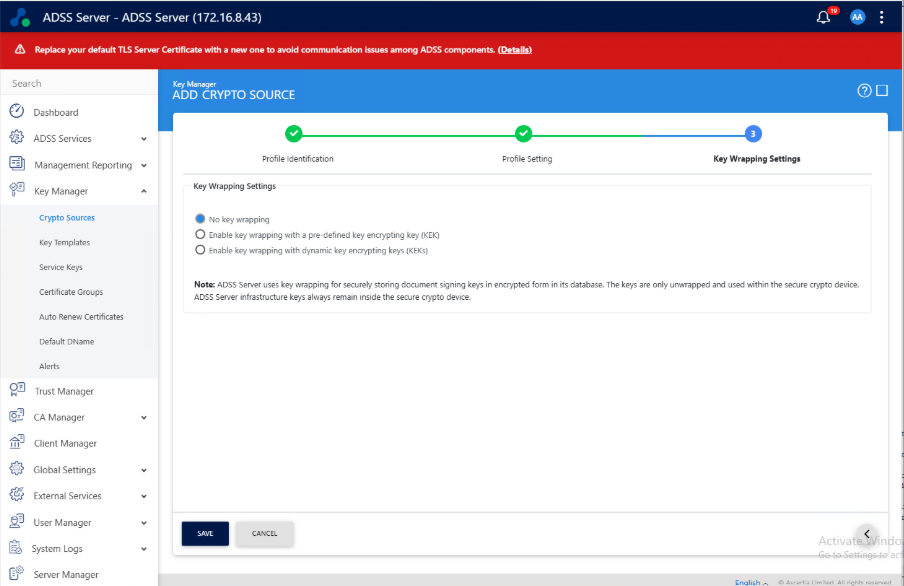

10. The Add Crypto Profile – Key Wrapping Settings page will display. Accept the default of No key Wrapping. Click Save.

Add crypto profile – key wrapping settings

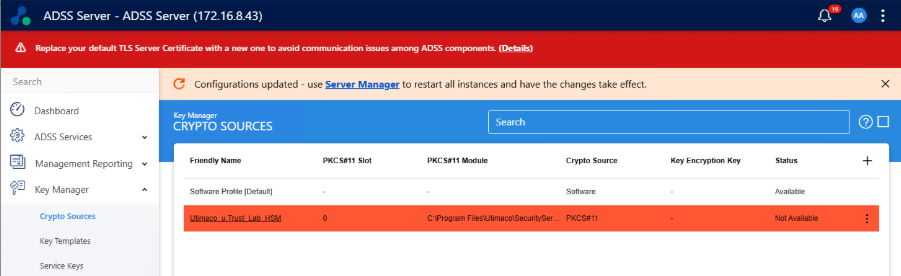

11. You will be returned to the Crypto Sources page. Click the link to use the Server Manager to restart the ADSS Server instances.

Crypto sources

12. The Server Manager page will display. Click the Restart All Instances button.

13. Once the ADSS Server services have restarted, return to Key Manager > Crypto Sources. You will see that the new Utimaco HSM is now an available Crypto Source.

14. Refer to the ADSS Server Product Documentation to configure the services you wish to use with this new HSM.
