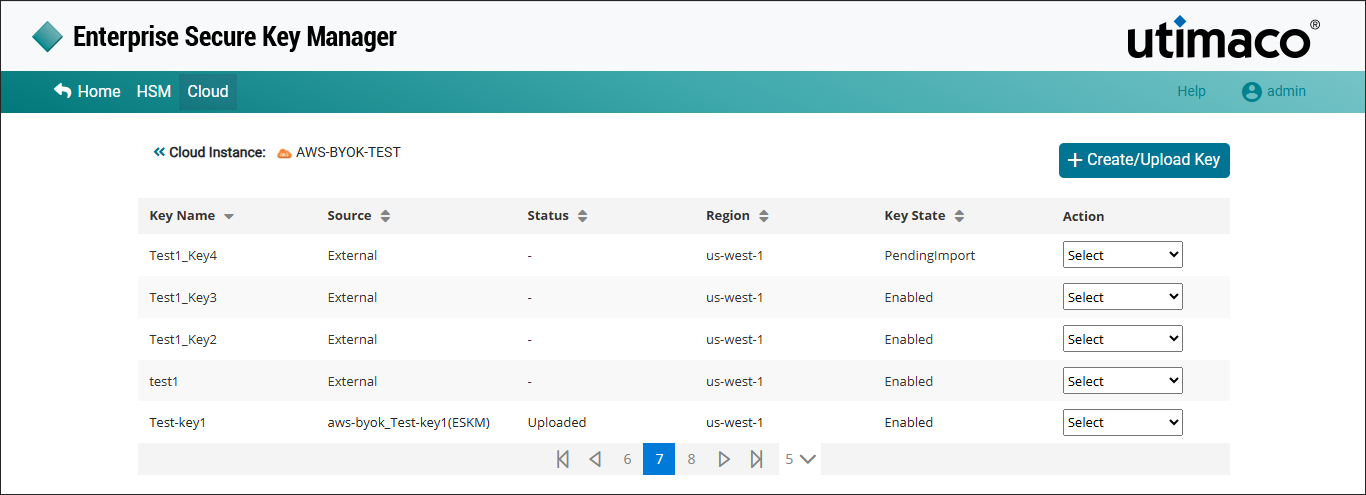

Viewing AWS-BYOK Key Dashboard

Key Name

Name of the key which is created in the AWS-BYOK cloud instance.

Source

The key source indicates where key is generated. If the key was created in the ESKM, the format will be Instance Name_Key Name(ESKM). If the key is created in the cloud, it will appear as external.

Status

Status of the key such as Uploaded or Not Uploaded.

Region

Select the regions to which the key needs to be imported.

Key State

key State such as Enabled, Disabled and Pending Import.

Action

It contains various key actions such as Edit, Delete and
Upload.

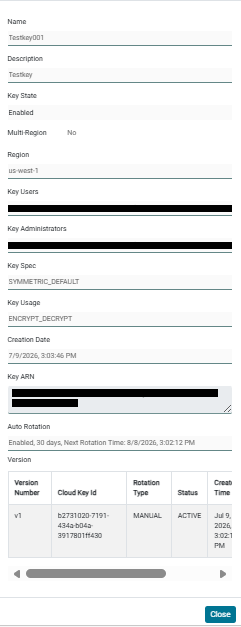

Key Name

Name of the Key created in AWS-BYOK.

Description

Detailed information about the key.

Region

Regions to which the key is imported.

Key Users

The AWS IAM users who is responsible and has the access to create the key in AWS BYOK.

Key Administrators

The AWS IAM users who has the right to delete the key in AWS-BYOK.

Multi Region

Enable the Multi Region checkbox if the key to be replicated into other Regions.

Key Spec

The key spec determines whether the KMS key is symmetric or asymmetric.

Key Usage

Cryptographic operations supported by the key such as ENCRYPT_DECRYPT, SIGN_VERIFY, or GENERATE_VERIFY_MAC .

Creation Date

The date on which AWS-BYOK key is created.

Key ARN

Amazon Resource Name (ARN) of the KMS key. It is used to identify an AWS KMS key.

Key State

Status of the key such as Enabled or Disabled.

Auto Rotation

Displays the Auto Rotation status for the key. When enabled, the configured rotation interval and the next scheduled rotation time are displayed.

Version

Displays the available key versions along with version details such as Version Number, Cloud Key Id, Rotation Type, Status, Creation Time and Uploaded Time. Versions created through Auto Rotation are displayed as AUTO, while manually created versions are displayed as MANUAL.
