Configuration on BIG-IP

  1. To start, log in to the Configuration utility of F5 BIG-IP from the browser.

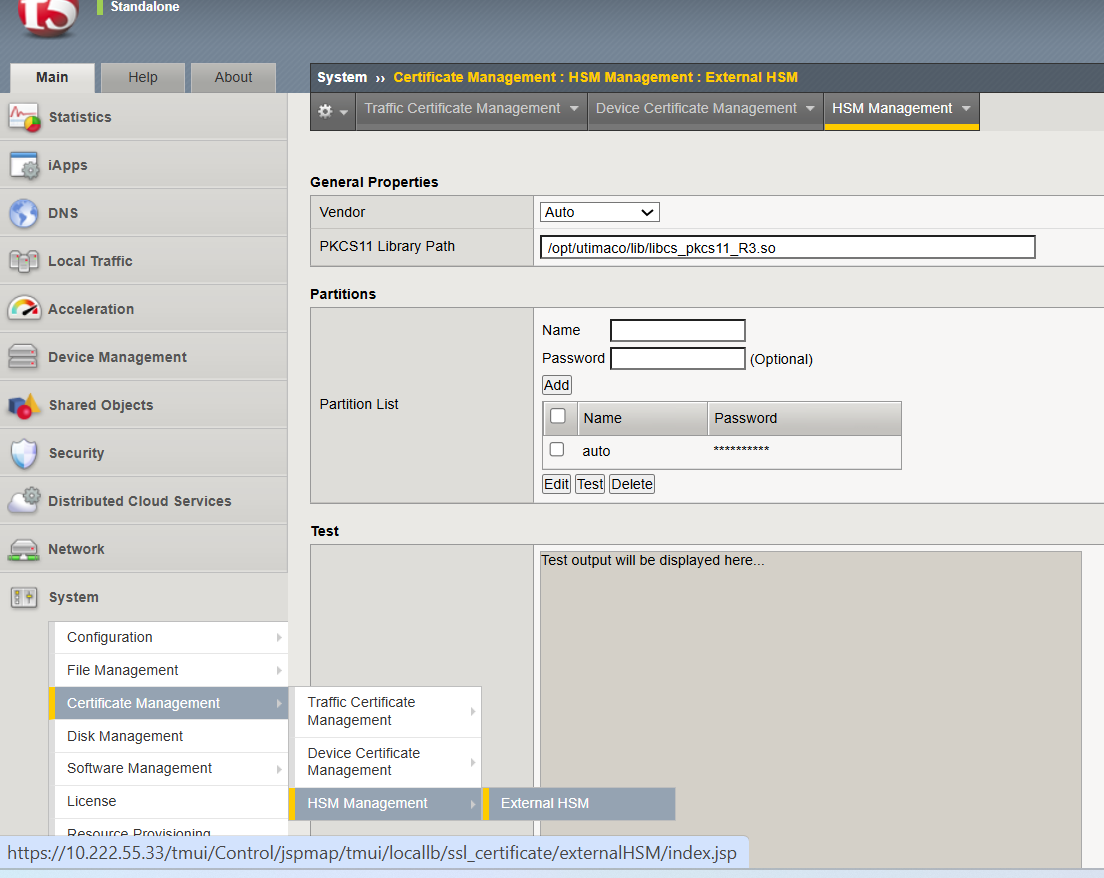

  2. On the Left Pane, go to System > Certificate Management > HSM Management > External HSM.

  3. In the General Properties, click on the dropdown and select the Vendor as auto, and set the PKCS11 Library Path to /opt/utimaco/lib/libcs_pkcs11_R3.so.

  4. In the Partitions, create a new Partition with the Name as auto and Password as 12345678.

  5. Click on Add to save credentials button and then click on the Finished button at the bottom.



External HSM Management
