Deleting a Key from the BIG-IP

  1. In the BIG-IP configuration utility, select System > Certificate Management > Traffic Certificate Management. The Traffic Certificate Management screen opens.

  2. The Traffic Certificate Management screen opens.

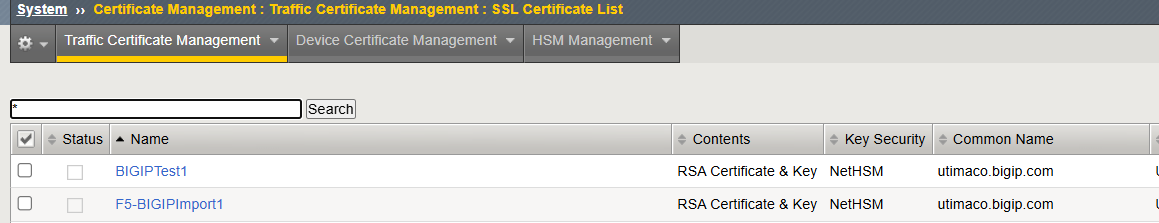

  3. From the SSL Certificate List, select the key to delete.

  4. Click on the Delete button.

  5. The key selected is only deleted from BIG-IP.

 # ./p11tool2 LoginUser=12345678 ListObjects

   CKA_KEY_TYPE                   = CKK_RSA
  CKA_UNIQUE_ID                  = 44A64C8C-FA89-4676-9CF2-46F92A9B90D9
  CKA_SENSITIVE                  = CK_TRUE
  CKA_EXTRACTABLE                = CK_FALSE
  CKA_LABEL                      = F5-BIGIPImport1
  CKA_ID                         =
                0x63343839 35616633 65333438 34383762 |c4895af3e348487b|
                  32656165 32656536 63356634 65663635 |2eae2ee6c5f4ef65|

  CKA_KEY_TYPE                   = CKK_RSA
  CKA_UNIQUE_ID                  = 709BEDBE-5200-47CC-92E7-4A639C9AB0BC
  CKA_SENSITIVE                  = CK_TRUE
  CKA_EXTRACTABLE                = CK_FALSE
  CKA_LABEL                      = BIGIPTest1___03c9f2fd
  CKA_ID                         =
                0x38303137 31316435 65323265 36383931 |801711d5e22e6891|
                  38343330 66376334 30336339 66326664 |8430f7c403c9f2fd|

  1. Try to create a new Certificate and Key with the same name. BIG-IP will return an error.

  1. Delete the key from HSM.

 # ./p11tool2 LoginUser=12345678 Label=F5-BIGIPImport1  DeleteObject
2 Objects deleted

  1. Create a new Key through System > Certificate Management > Traffic Certificate Management.



New Key Created

  1. Verify the object in the HSM.

     # ./p11tool2 LoginUser=12345678 ListObjects


CKO_PRIVATE_KEY:

+ 1.1
  CKA_KEY_TYPE                   = CKK_RSA
  CKA_UNIQUE_ID                  = 56860D8C-A6C6-481D-82AC-C2110F652C61
  CKA_SENSITIVE                  = CK_TRUE
  CKA_EXTRACTABLE                = CK_FALSE
  CKA_LABEL                      = F5-BIGIPImport1___5119ac99
  CKA_ID                         =
                0x64336432 65363731 31346635 62363931 |d3d2e67114f5b691|
                  64373836 35316433 35313139 61633939 |d78651d35119ac99|
