Configuration

To configure HA Proxy to use with the CryptoServer create or adjust the /etc/haproxy/haproxy.cfg file. The next configuration includes a setup of web GUI (e.g. HTTP port 9090) and socket for the CryptoServer load sharing (e.g. TCP 3100). It is possible to run HAProxy without web GUI but the current transfer statistics and status of the CryptoServer can be seen here.

global

log /dev/log local0

log /dev/log local1 notice

chroot /var/lib/haproxy

user haproxy

group haproxy

daemon

defaults

log global

mode http

option tcplog

option dontlognull

timeout connect 5000

timeout client 50000

timeout server 50000

errorfile 400 /etc/haproxy/errors/400.http

errorfile 403 /etc/haproxy/errors/403.http

errorfile 408 /etc/haproxy/errors/408.http

errorfile 500 /etc/haproxy/errors/500.http

errorfile 502 /etc/haproxy/errors/502.http

errorfile 503 /etc/haproxy/errors/503.http

errorfile 504 /etc/haproxy/errors/504.http

listen stats :9090

balance

mode http

stats enable

stats auth admin:admin

listen CryptoServerCluster :3100

balance leastconn

mode tcp

option tcp-check

tcp-check send-binary 9C00001400830100436865636B204865616C7468

tcp-check expect binary 9A00001068746C616548206B63656843

server Erebos 192.168.0.10:288 check

server Aphrodite 192.168.0.11:288 check

server Apollo 192.168.0.12:288 check

server Eros 192.168.0.13:288 check

The cluster of CryptoServer that is used here is defined in the section CryptoServerCluster. Besides the ip address of CryptoServer it is possible to assign a name for this device. This name is then shown in the statistics overview. The communication mode for the CryptoServer connection is tcp. As load sharing method leastconn (lowest number of connections) has been chosen for this guide.

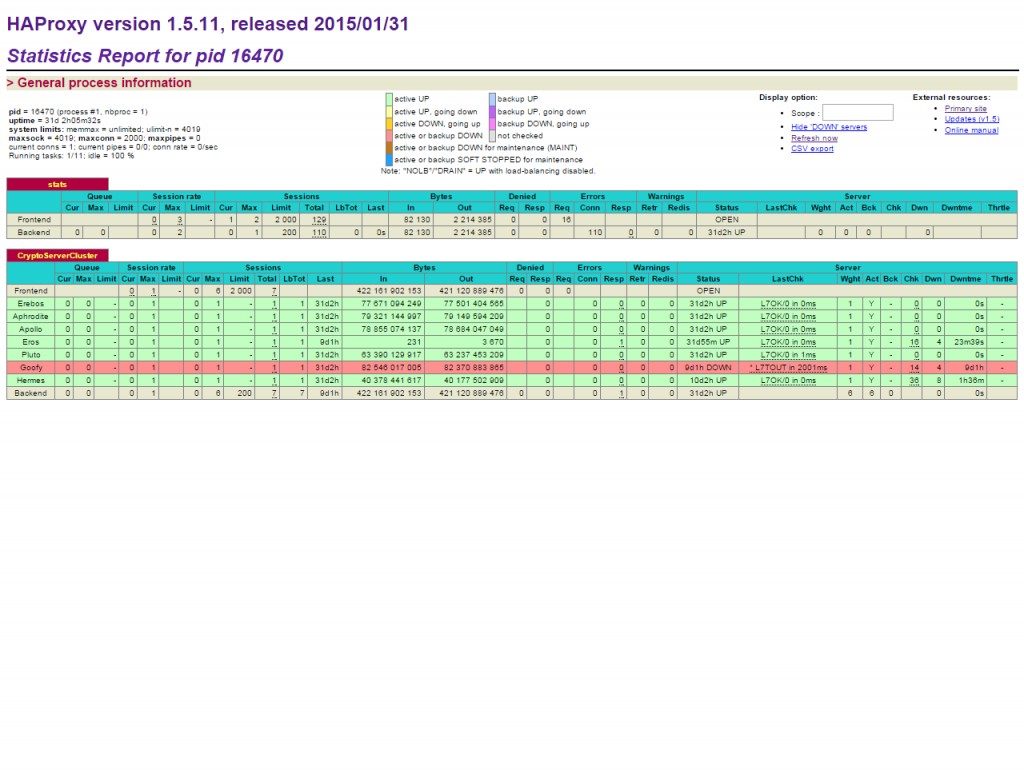

General process information

There are also other strategies available like roundrobin, static-rr and first. After editing the /etc/haproxy/haproxy.cfg configuration file you need to restart HA Proxy to get new settings effective.

# /etc/init.d/haproxy restart

To monitor the health of a CryptoServer device you can use the tcp-check send-binary and tcp-check expect binary feature of HA Proxy. HA Proxy sends a binary tcp request to a CryptoServer with tcpcheck send-binary and checks the answer of the CryptoServer with tcp-check expect binary. If the answer of the CryptoServer does not match the pattern 9A00001068746C616548206B63656843, HA Proxy does recognize the device as a faulty device. In this case the load is shared with the available other CryptoServer devices. If the faulty device is coming back properly checks from HA Proxy does run successfully then it will be integrated again in the cluster.

The cluster of CryptoServer device is presented as single CryptoServer device from HA Proxy to a calling API or application. To address the cluster for first test you can use csadm to check the availability of the cluster.

# csadm dev=3100@10.17.72.9 GetState
mode = Operational Mode
state = INITIALIZED (0x00100004)
temp = 31.2 [C]
alarm = OFF
bl_ver = 3.00.0.3 (Model: Se-Series)
uid = cc000011 0c519501 | Q
adm1 = 53653130 30302020 43533431 33303431 | Se1000 CS413041
adm2 = 5554494d 41434f20 43533431 33303431 | UTIMACO CS413041
adm3 = 4d455247 45440000 00000000 00000000 | MERGED
# csadm dev=3100@10.17.72.9 GetState
mode = Operational Mode
state = OPERATIONAL (0x00000005)
temp = 35.0 [C]
alarm = OFF
bl_ver = 2.00.2.5 (Model: C/S-Series (Classic))
hw_ver = 2.00.2.0
uid = 81000010 5ec05101 | ^ Q
adm1 = 53313020 20202020 43533331 32363733 | S10 CS312673
adm2 = 53656375 72697479 53657276 65720000 | SecurityServer
adm3 = 496e6974 2d446576 2d312d4b 65790000 | Init-Dev-1-Key

In this example we called csadm to show that HA Proxy is sharing the load accordingly to our chosen load sharing strategy.
