With EC key (Self Signed Certificate)

1. Generate an EC keypair on Utimaco HSM.

# keytool -genkey -alias ibmec -keyalg EC -keystore NONE -storetype PKCS11IMPLKS -providername IBMPKCS11Impl-CryptoServer

Provide information when prompted Here:

• EC is the key algorithm

• NONE is the keystore for HSM

• PKCS11IMPLKS is the storetype

• IBMPKCS11Impl-CryptoServer is the provider name

• ibmec is the key name that will be generated on Utimaco HSM

Provide the keystore password when prompted

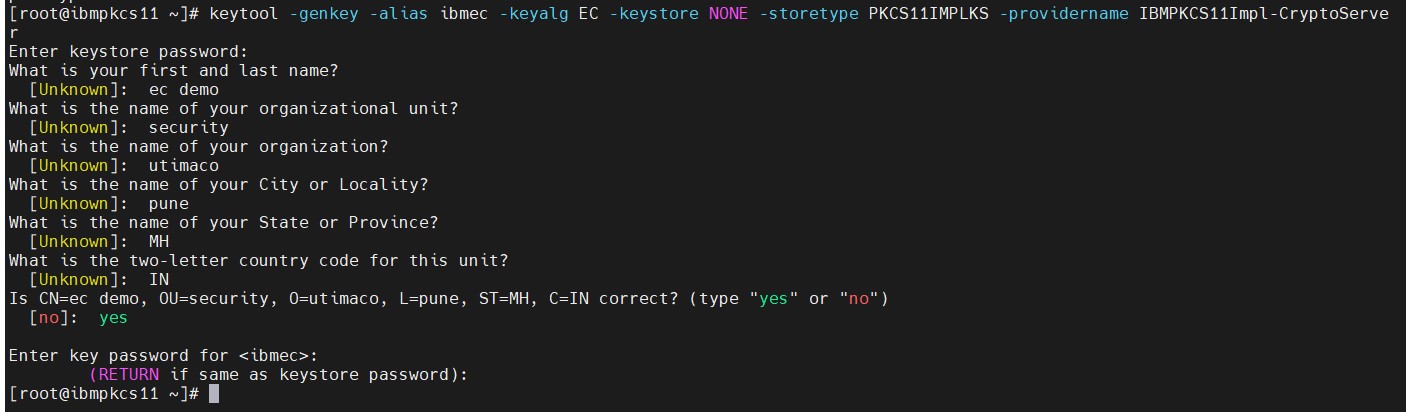

Keytool command to generate keys

2. Verify the entry with same alias name is generated.

# keytool -list -keystore NONE -storetype PKCS11IMPLKS -providername IBMPKCS11Impl-CryptoServer

Here:

• NONE is the keystore for HSM

• PKCS11IMPLKS is the storetype

• IBMPKCS11Impl-CryptoServer is the provider’s name

Provide the keystore password when prompted

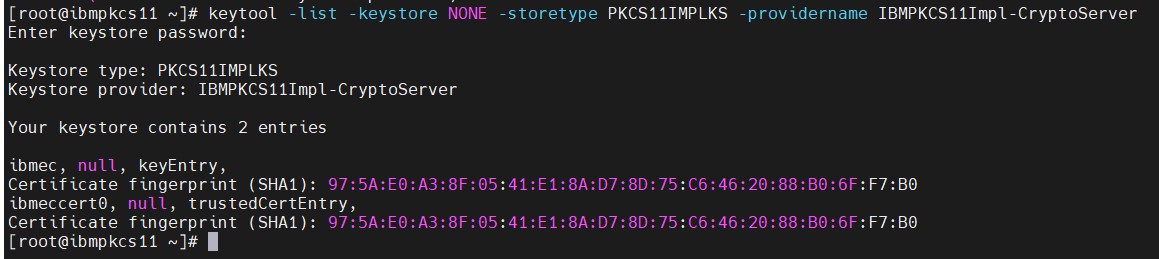

Listkeys output

3. List the objects using p11tool2.

# p11tool2 Slot=0 LoginUser=ask ListObjects

Enter user PIN when prompted

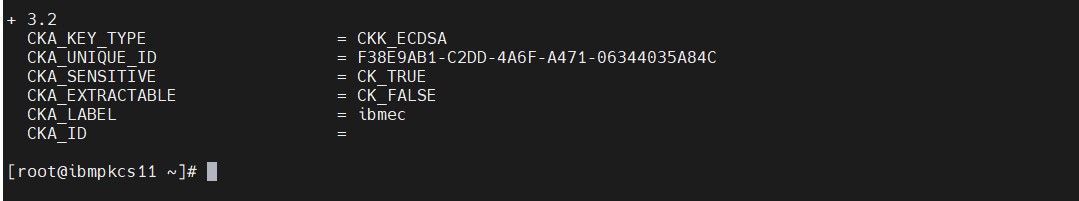

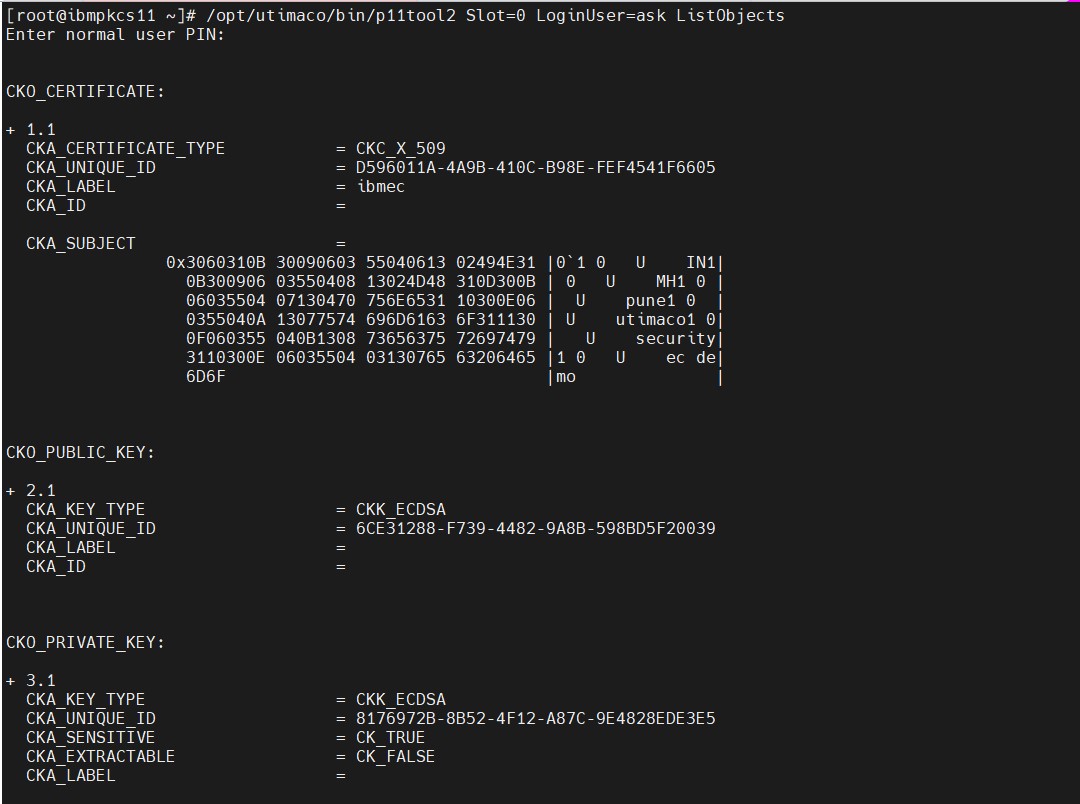

List keys output using p11tool2

4. Sign any sample jar file using jarsigner tool.

# jarsigner -tsa http://timestamp.digicert.com -keystore NONE -storetype PKCS11IMPLKS -providername IBMPKCS11Impl-CryptoServer -signedjar sample_output.jar samples.jar ibmec

Here:

• http://timestamp.digicert.com is URL of timestamp server

• Here NONE is the keystore for HSM

• PKCS11IMPLKS is the storetype

• IBMPKCS11Impl-CryptoServer is the provider’s name

• sample_output.jar is the new output signed jar file that will be generated

• samples.jar is the jar file to be signed

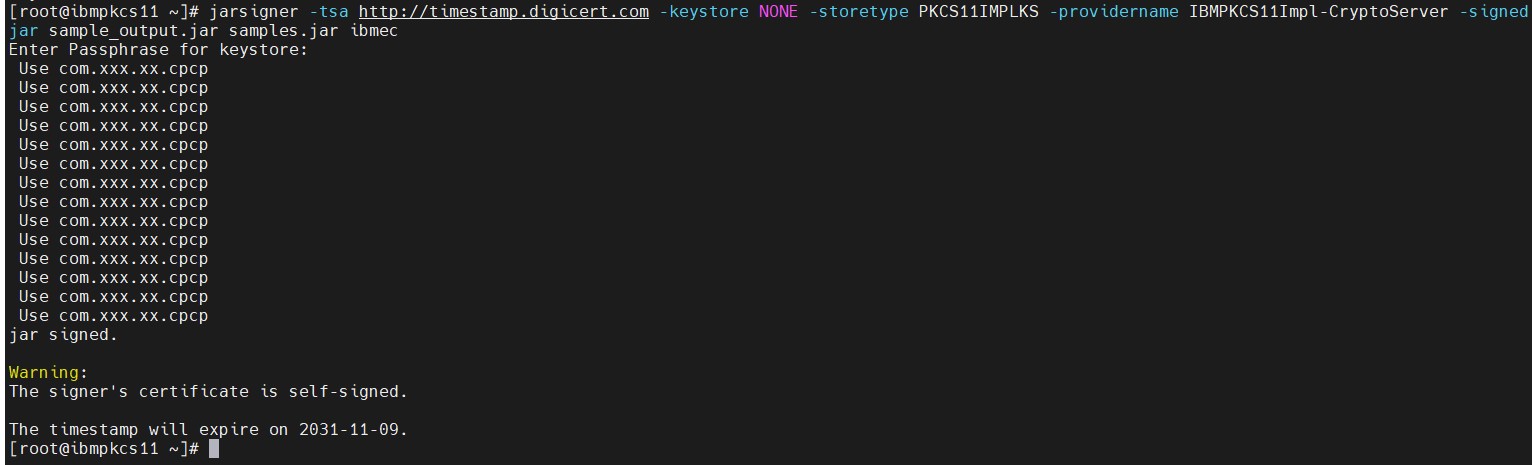

Signing the jar using jarsigner command

5. Verify the signed jar.

# jarsigner -verify sample_output.jar -keystore NONE -storetype PKCS11IMPLKS -storepass 12345678 -providername IBMPKCS11Impl-CryptoServer

Here sample_output.jar is the newly generated signed jar file

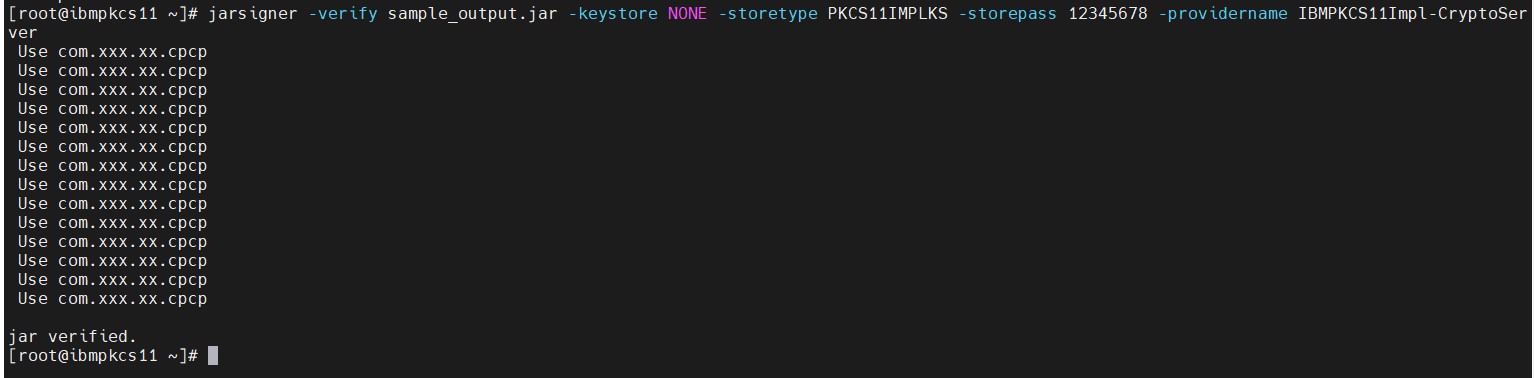

Verifying signed jar
