Generate CSR by GUI Tool

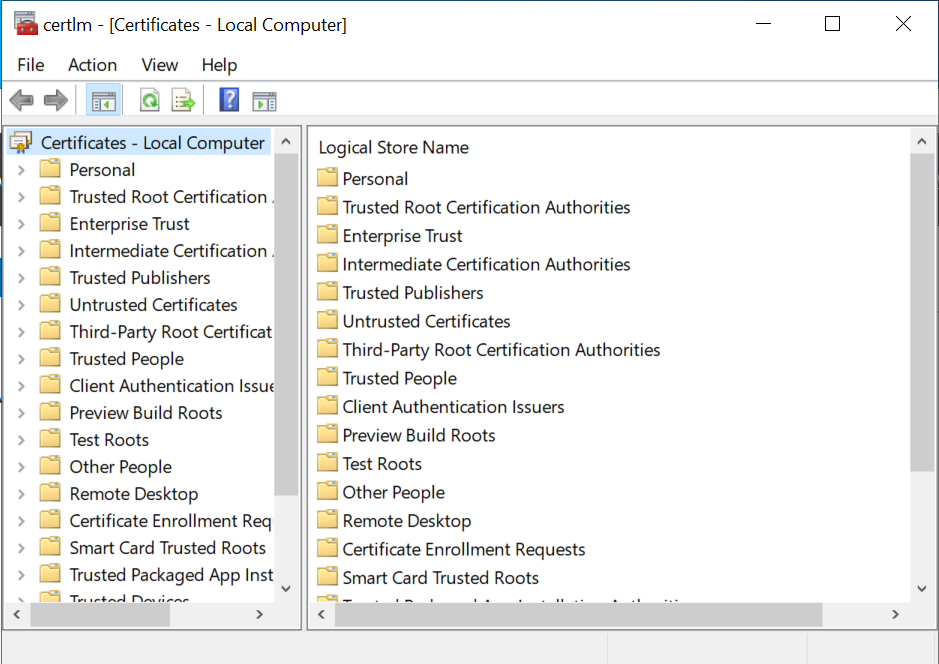

  1. Open Run and use certlm.msc command


Local Computer - Certificates

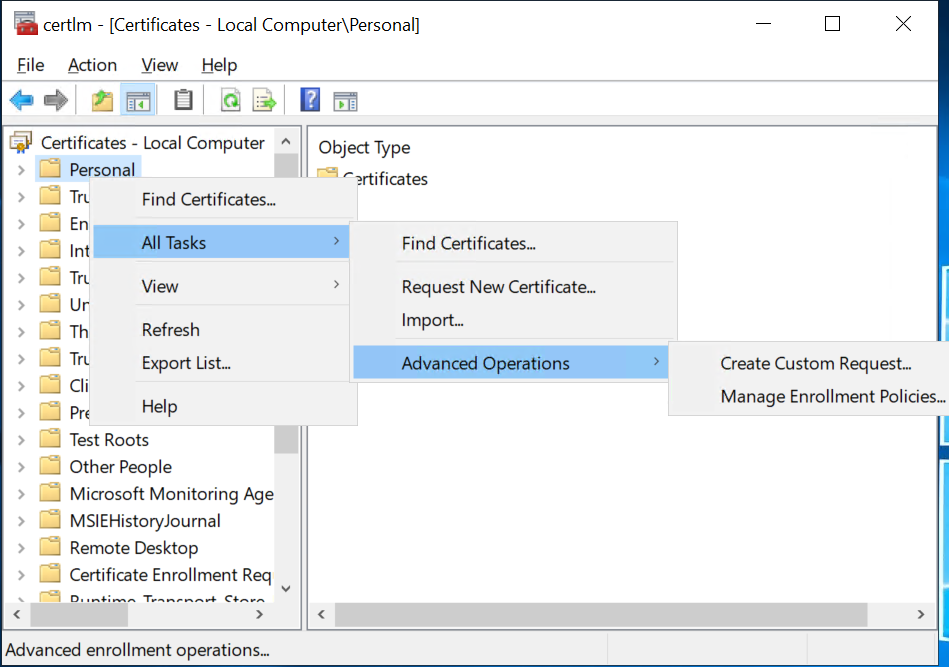

  1. Right click on Personal → All Tasks → Advanced Operations → Create custom requests


Create Custom Request

  1. Click Next button on Before you begin wizard screen

  2. Click Next on Select Certificate Enrollment Policy wizard

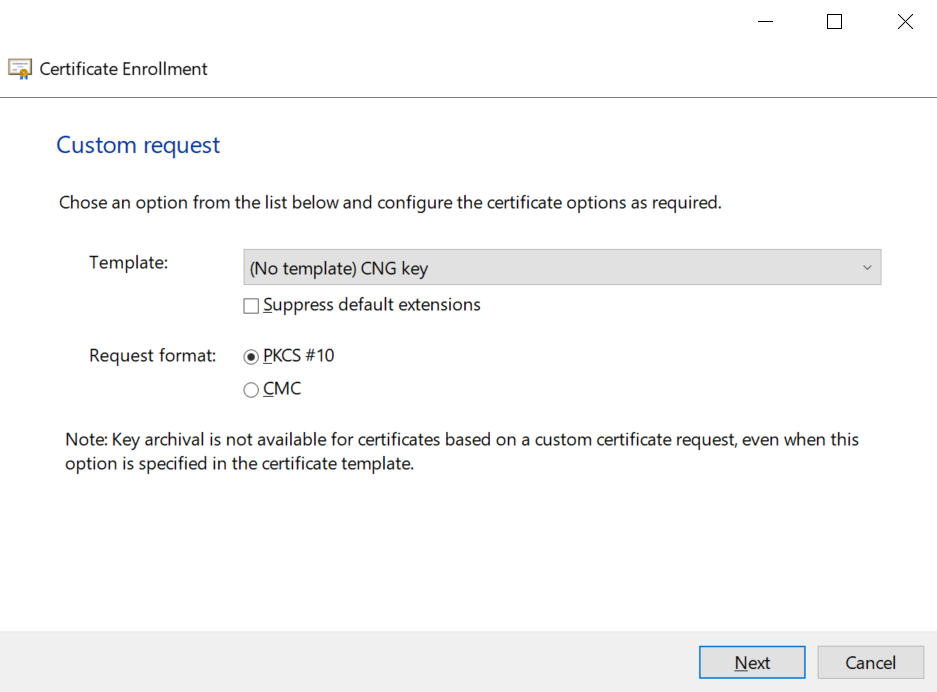

  3. On Custom Request wizard, use Template → (No Template) CNG Key and Request format PKCS #10, and click Next


Certificate Enrollment - Custom request

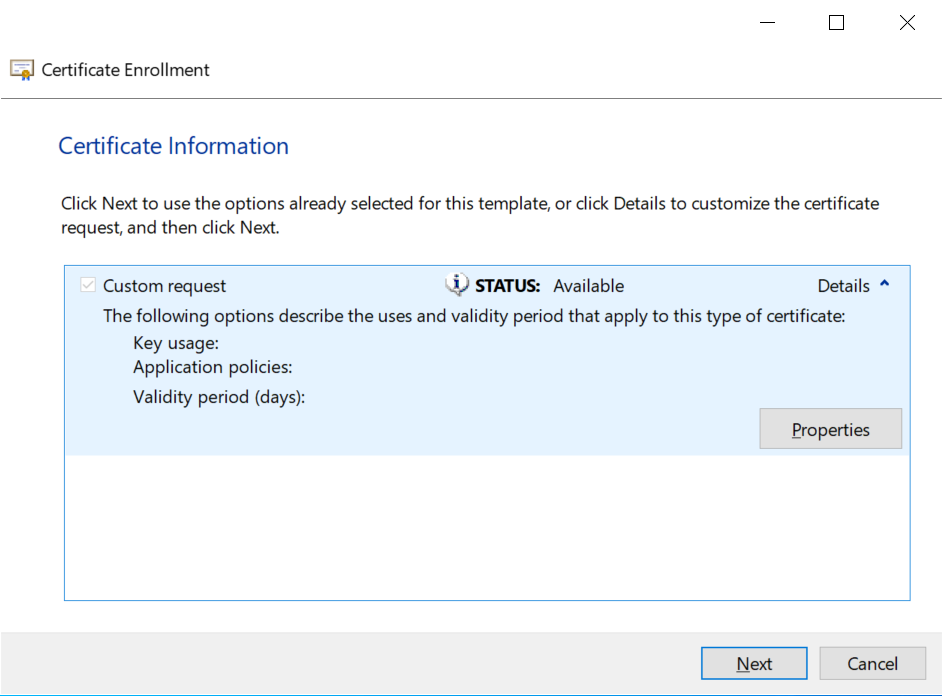

  1. Select Details and click on Properties button


Certificate Information

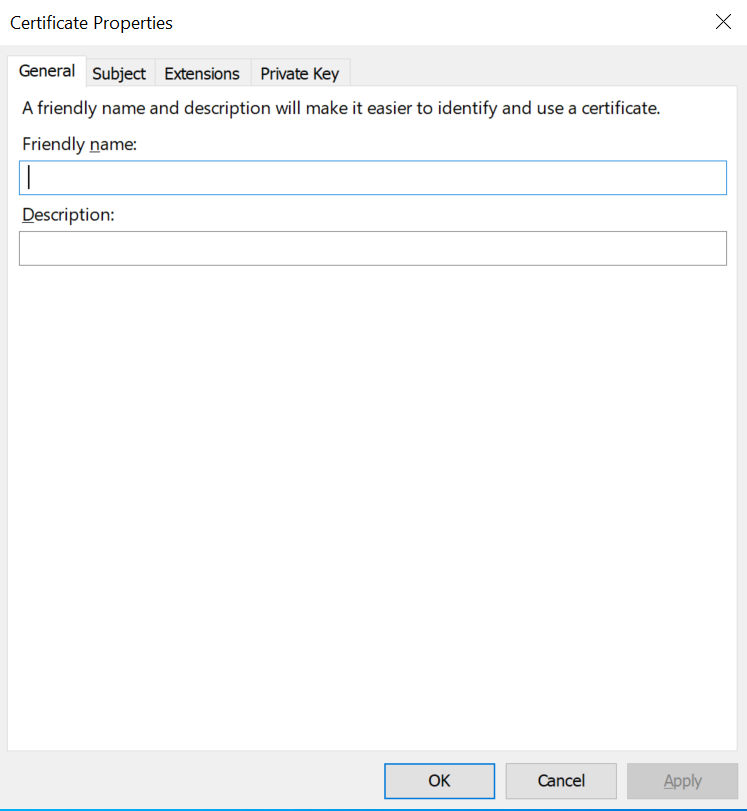

  1. On Certificate Properties, Assign Friendly name and Description


Certificate Properties - Friendly Name and Description

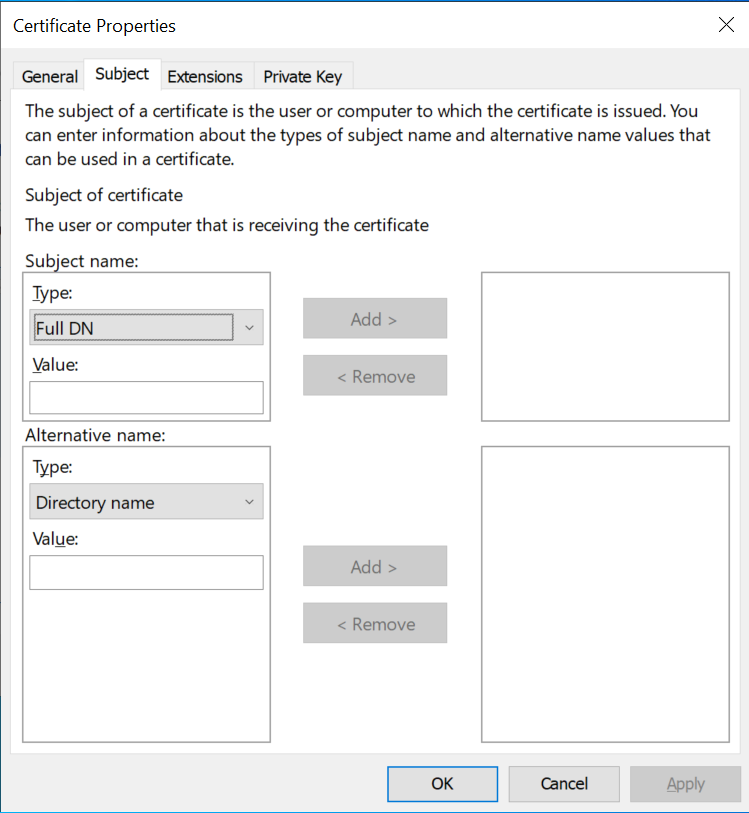

  1. On Subject tab, select Subject Name Type and enter information for Full DN, Common Name, Country, Email, Given Name, Locality, Organization, Organization Unit, State etc.,


Certificate Properties – Subject

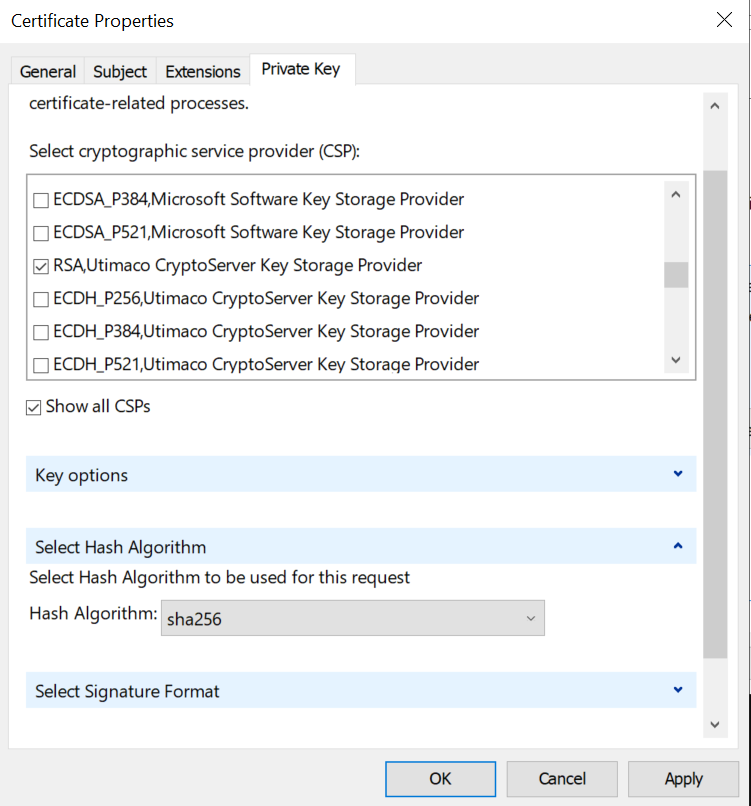

  1. On Private Key Tab, Click on Cryptographic Service Provider and unselect the RSA, Microsoft Software Key Storage Provider and Select RSA, Utimaco CryptoServer Key Storage Provider

  2. On select Hash Algorithm, select sha256

If RSA, Utimaco CryptoServer is not available by default, enable Show all CSPs checkbox


Certificate Properties - Private Key

  1. Click Apply and OK

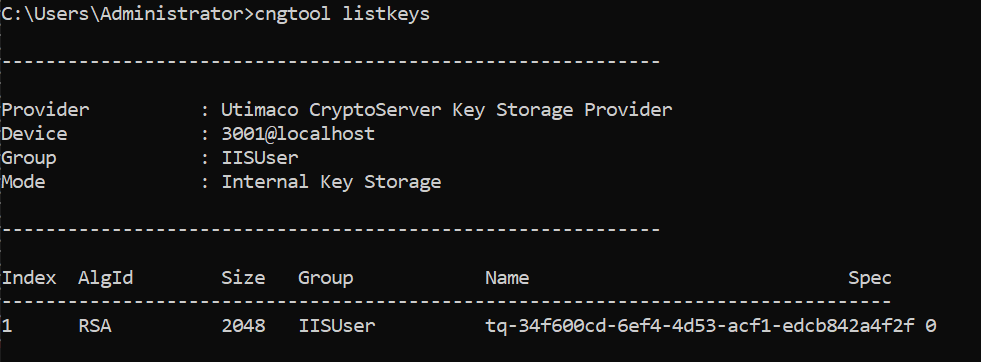

  2. Check on HSM using below command that Certificate/Key is generated

> cngtool ListKeys



Key Listing
