Installing Failover Clustering Feature on the Cluster Nodes

Please execute the following steps on the cluster nodes:

1. Log in to the cluster node as a user with Administrative privileges.

2. Select Start and then Server Manager to open Server Manager.

3. Under Configure this Local Server, click Add Roles and Features. The Add Roles and Features Wizard displays. Click Next.

4. Select the radio button for Role-based or feature-based installation and click Next.

5. Select the radio button for Select a server from the server pool option, select the cluster node from the Server Pool, and click Next.

6. In the section Server Roles, click Next.

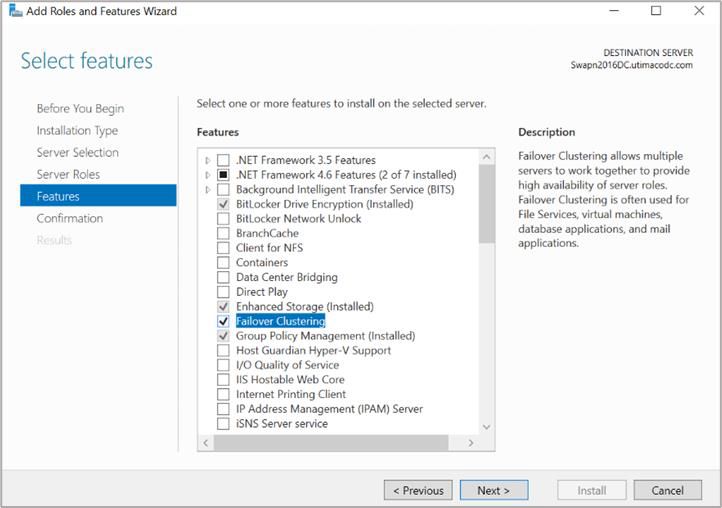

7. From the list of available features, select the Failover Clustering check box and click Next.

"Select Installation Type" Window

8. A display pops up, stating Add features that are required for Failover Clustering? To add a feature, click the Add Features button.

9. Click Next.

10. Click Install.

11. Once the Feature installation is complete, click Close. Similarly, configure it with the available nodes in the cluster.
