Enabling Encryption on a New Volume

  1. Create a new volume and specify whether encryption is enabled on the volume. If the new volume is in an NAE aggregate, by default the volume will be an NAE volume:

›_ Console


Cluster1::> volume create -vserver SVM_name -volume volume_name aggregate aggregate_name

Example
Cluster1::> volume create -vserver svm1 -volume vol0 -aggregate aggr1

Creating a new volume

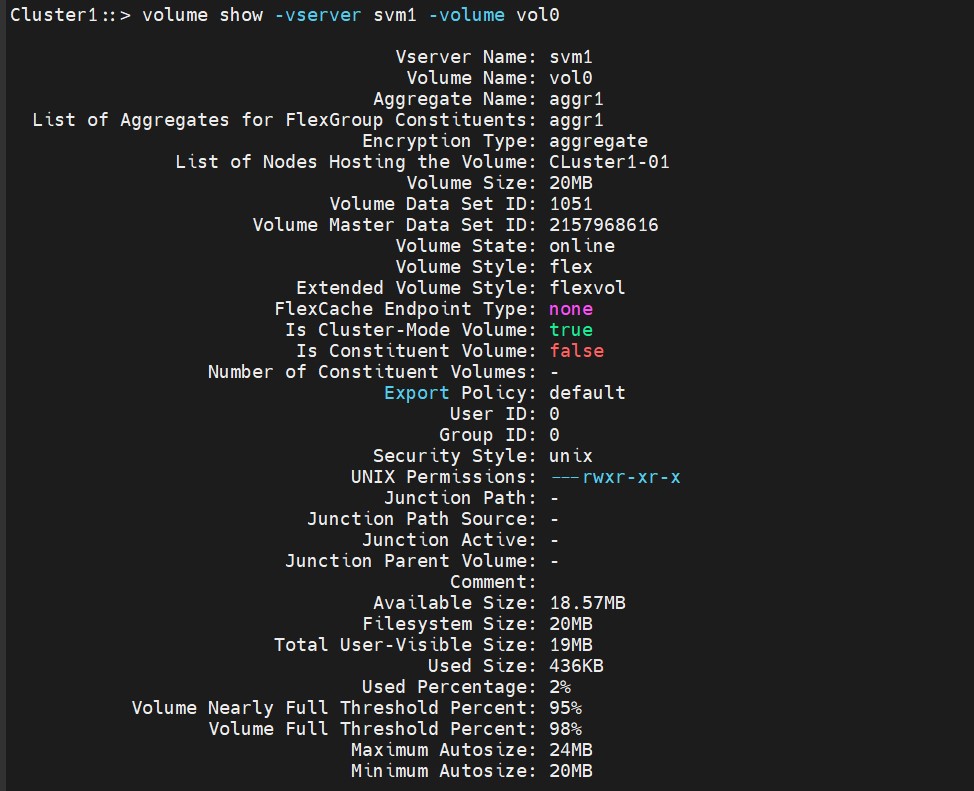

  1. View the newly created NAE volume.

›_ Console


Cluster1::> volume show -vserver svm1 -volume vol0

Volume show output

  1. Create an NVE volume.

›_ Console


Cluster1::>  volume create -vserver SVM_name -volume volume_name aggregate aggregate_name -encrypt true

Example:
Cluster1::> volume create -vserver svm1 -volume vol1 -aggregate aggr1 encrypt true

Creating an NVE volume

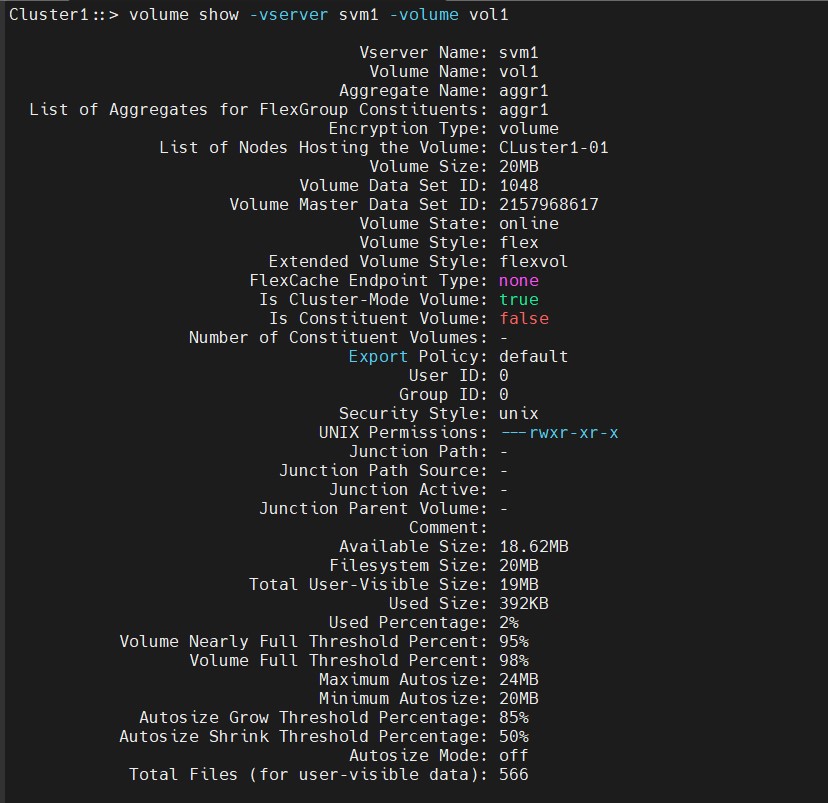

  1. View the newly created NVE Volume.

›_ Console


Cluster1::> volume show -vserver svm1 -volume vol1

Volume show output

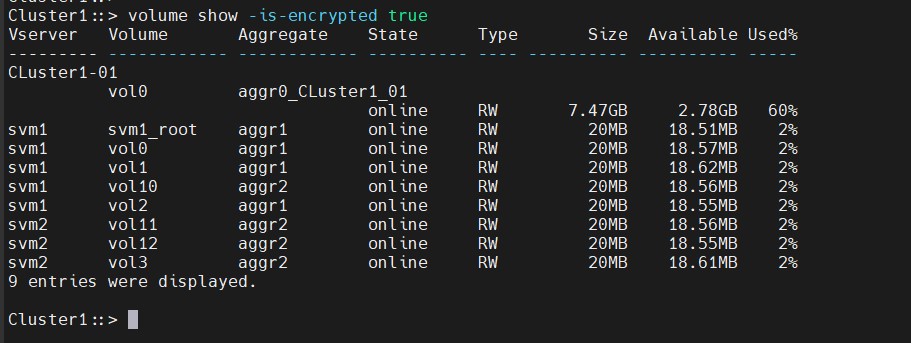

  1. Verify that volumes are enabled for encryption.

›_ Console


Cluster1::> volume show -is-encrypted true

Verifying encrypted volumes
