Deploying SecurityServer/CP5 with NGINX Container Image into OCP For Utimaco SecurityServer

›_ Console
`# oc login -u <username> -p <password> https:// <server_ip>:6443`

Create the replicaset YAML file, which will pull the SecurityServer container image from Docker Hub registry using pull secret.

›_ Console
`apiVersion: apps/v1 kind: ReplicaSet metadata:` `name: securityserver-pod spec:` `replicas: 2 selector:` `matchLabels: app: my-app` `template: metadata:` `labels:` `app: my-app spec:` `containers:` `- name: cryptopod` `image: <Docker_Repository>/securityserver imagePullPolicy: IfNotPresent` `command: ["/bin/bash","-c"]` `args: ["/usr/sbin/nginx;while true; do sleep 30; done;"] imagePullSecrets:` `- name: <pull_secret_name>`

›_ Console

apiVersion: apps/v1 kind: ReplicaSet metadata:

name: securityserver-pod spec:

replicas: 2 selector:

matchLabels: app: my-app

template: metadata:

labels:

app: my-app spec:

containers:

- name: cryptopod

image: <Docker_Repository>/securityserver imagePullPolicy: IfNotPresent

command: ["/bin/bash","-c"]

args: ["/usr/sbin/nginx;while true; do sleep 30; done;"] imagePullSecrets:

- name: <pull_secret_name>

Update the Repository, Image, and Pull Secret Name accordingly.

Deploy the replicaset yaml file. This will create the no of specified replicas of pods with NGINX running over HTTPS.

›_ Console
`# oc apply-f deploy.yaml`

oc apply output

›_ Console

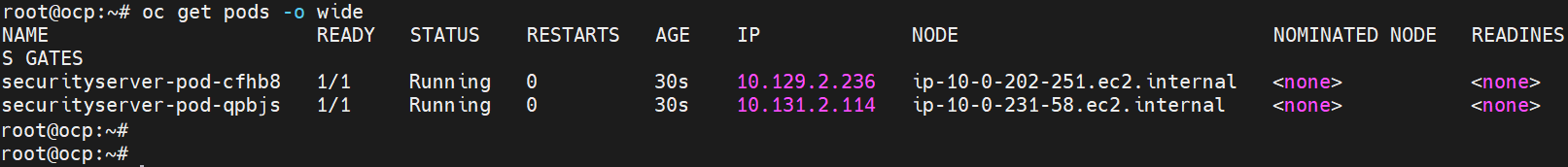

`# oc get pods -o wide`

Pods running status
