Deploying the CP5 with NGINX Container Image into OpenShift Container Platform

›_ Console

# oc login -u <username> -p <password> https:// <server_ip>:6443

Create the replicaset YAML file, which will pull the CP5 container image from Docker Hub registry using pull secret.

›_ Console

apiVersion: apps/v1 kind: ReplicaSet metadata:

name: cp5pod spec:

replicas: 2 selector:

matchLabels: app: my-app

template: metadata:

labels:

app: my-app spec:

containers:

- name: cryptopod

image: <Docker_Repository>/cp5image:1 imagePullPolicy: IfNotPresent command: ["/bin/bash","-c"]

args: ["/opt/utimaco/bin/csadm Dev=<port>@<ip_address> GetHSMAuthKey >

/tmp/HSMauth.key;/usr/sbin/nginx;while true; do sleep 30; done;"]

imagePullSecrets:

- name: <pull_secret_name>

Update the Repository, Image, Port, IP Address of HSM, and Pull Secret Name accordingly.

Deploy the replicaset YAML file. This will create the no of specified replicas of pods with Nginx running over HTTPS.

›_ Console

# oc apply-f deploy.yaml

›_ Console

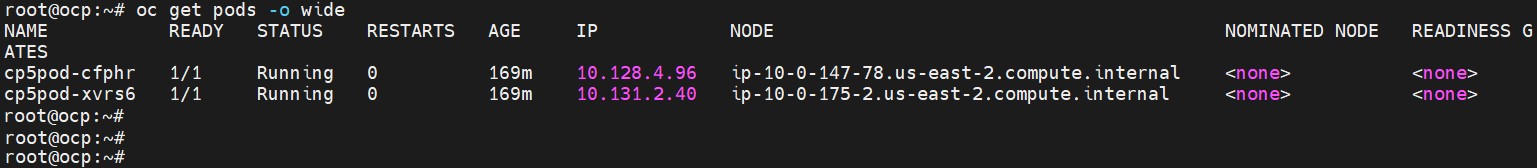

# oc get pods -o wide

Pods running status
