Install OpenStack Barbican

Use the steps below to install OpenStack Dalmatian via Packstack.

  1. Disable SeLinux using the command below:

›_ Console

# setenforce 0

Alternatively, open the /etc/selinux/config file and change permissive to disabled as shown below. Then reboot your machine.

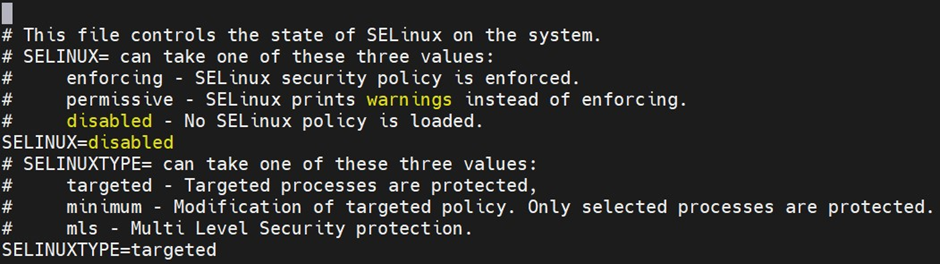

SELINUX Config File

This is for demonstration purposes only. Add the OpenStack Barbican files and directories in the SELinux context in a production environment.

  1. Change the hostname to controller by using the below command and reboot.

›_ Console

# hostnamectl set-hostname controller

# reboot

  1. Map barbican and controller to IP in /etc/hosts file.

›_ Console

# vi /etc/hosts

<Host_IP>    barbican        barbican.localdomain

<Host_IP>    controller       controller.localdomain

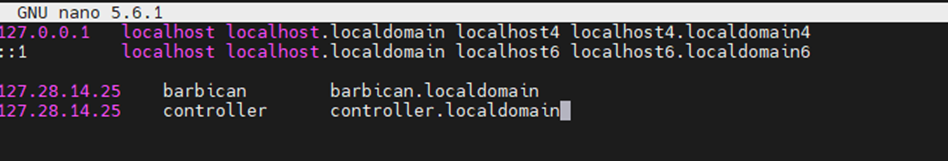

Hosts File

  1. Stop the firewall and NetworkManager using the below command.

This is for demonstration purpose only. In production environment allow openstack barbican services through firewall.

›_ Console

# systemctl stop firewalld NetworkManager

# systemctl disable firewalld NetworkManager

  1. Set up the timezone.

›_ Console

# timedatectl set-timezone <timezone name>

  1. Enable the required repositories.

›_ Console

# subscription-manager repos --enable=rhel-9-for-x86_64-baseos-rpms --enable=rhel-9-for-x86_64-appstream-rpms --enable=rhel-9-for-x86_64-supplementary-rpms --enable=codeready-builder-for-rhel-9-x86_64-rpms

  1. Install OpenStack Packstack by using the following commands.

›_ Console

# dnf install https://trunk.rdoproject.org/rdo_release/rdo-release.el9s.rpm

# dnf upgrade

# dnf install -y openstack-packstack

  1. Install the OpenStack instance.

›_ Console

# packstack --allinone

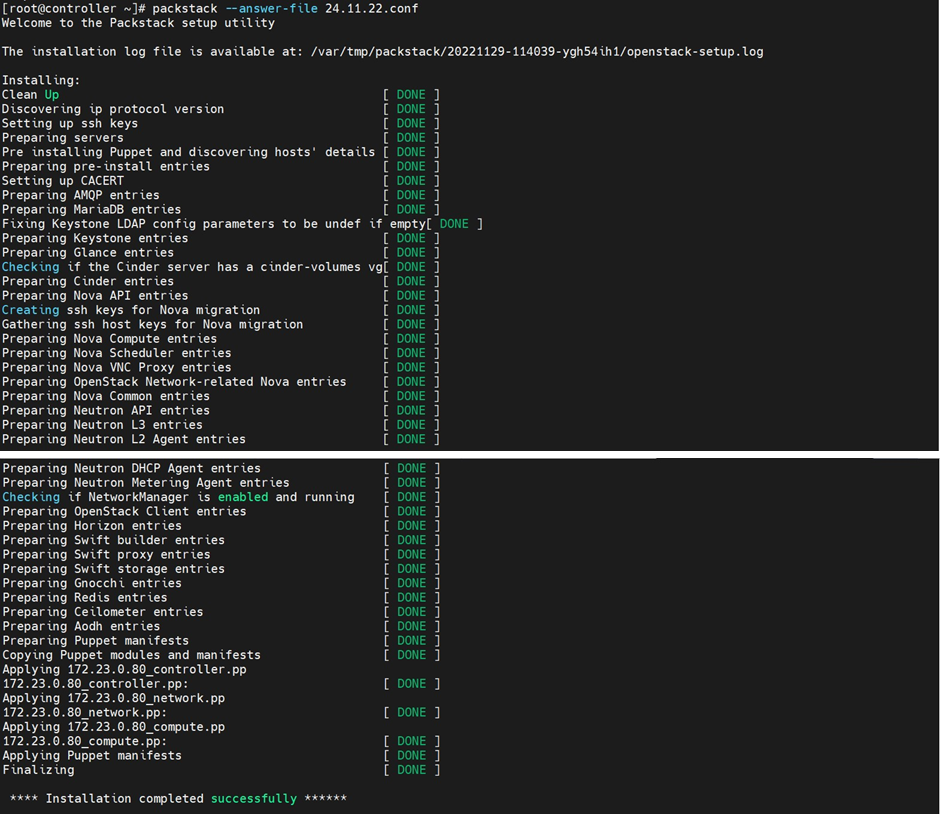

PackStack Configuration

An answer file will be generated in /root/. This file contains the passwords automatically generated by Packsack and used by MariaDB and other services.

  1. Open mysql as root.

›_ Console

# mysql -u root -p

  1. Create a database Barbican and allow full permission to the Barbican user.

›_ Console

> CREATE DATABASE barbican;

> GRANT ALL PRIVILEGES ON barbican.* TO 'barbican'@'localhost' IDENTIFIED BY '123456';

>GRANT ALL PRIVILEGES ON barbican.* TO 'barbican'@'%' IDENTIFIED BY

'123456';

> exit;

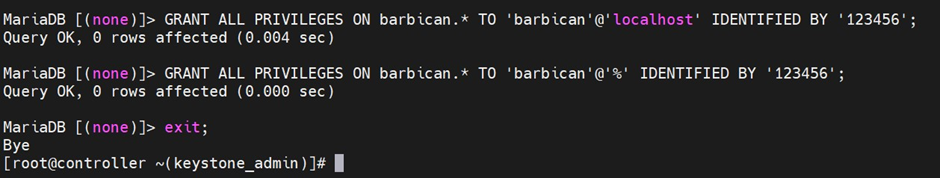

 Mysql command output

  1. Restart the http daemon.

›_ Console

 # systemctl restart httpd

  1. Set the environment variable for OpenStack.

›_ Console

# source /root/keystonerc_admin

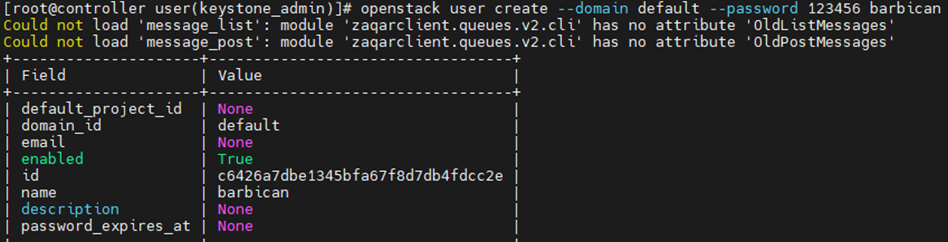

  1. Create a user barbican in OpenStack.

›_ Console openstack

# openstack user create --domain default --password 123456 barbican

  1. Add the admin role to the user barbican in project services.

›_ Console

# openstack role add --project services --user barbican admin

  1. Add the creator role.

›_ Console

# openstack role create creator

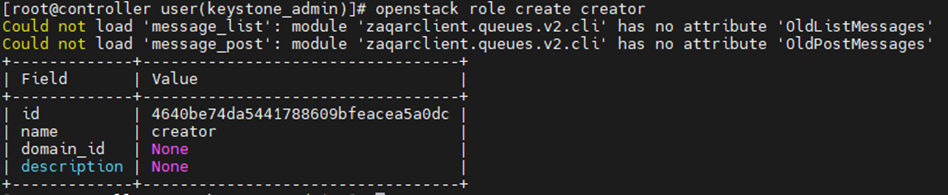

OpenStack Role Creation

  1. Add the creator role to the barbican user.

›_ Console

# openstack role add --project services --user barbican creator
Add Creator Role

  1. Create the barbican service entities.

›_ Console

# openstack service create --name barbican --description "key manager" key-manager

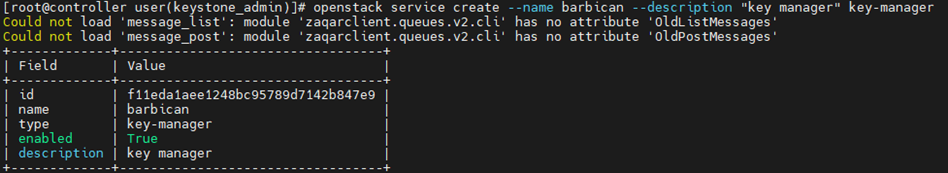

OpenStack Service Creation

  1. Create the Key Manager service API public endpoint.

›_ Console

# openstack endpoint create --region RegionOne key-manager public http://172.28.14.25:9311
OpenStack Public Endpoint Creation

  1. Create the Key Manager service API Internal endpoint.

›_ Console

# openstack endpoint create --region RegionOne key-manager internal http://172.28.14.25:9311

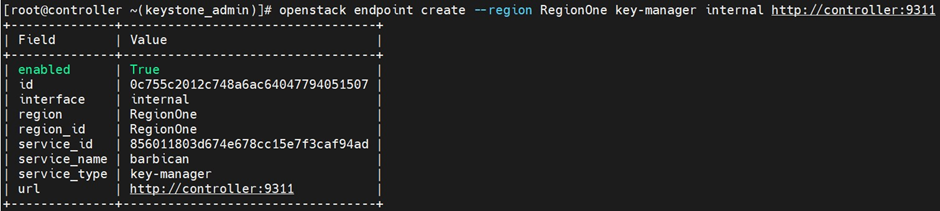

OpenStack Internal Endpoint Creation

  1. Create the Key Manager service API Admin endpoint.

›_ Console

# openstack endpoint create --region RegionOne key-manager admin http://172.28.14.25:9311

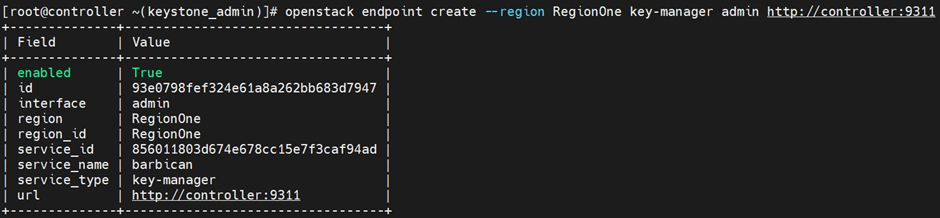

OpenStack Admin Endpoint Creation

  1. List the Key Manager service API endpoints created.

›_ Console

# openstack endpoint list --service barbican

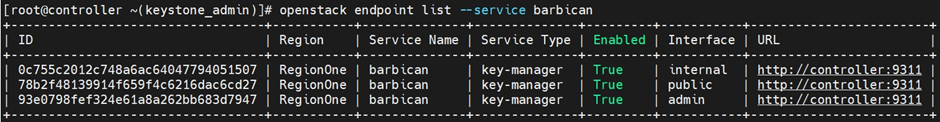

Endpoint List

  1. Install OpenStack Barbican:

›_ Console

# dnf install -y openstack-barbican

  1. Add the below information to the /etc/barbican/barbican.conf file. You can replace the username and password with the ones you set earlier during installation.

›_ Console

# vi /etc/barbican/barbican.conf

[DEFAULT]

host_href = http://barbican:9311

debug = true

transport_url = rabbit://guest:guest@controller

log_file = /tmp/logfile

[keystone_authtoken]

www_authenticate_uri = http://controller:5000

auth_url = http://controller:5000/v3

auth_version = v3

insecure = true

region_name = RegionOne

memcached_servers = localhost:11211

auth_type = password

project_name = services

user_domain_id = default

project_domain_id = default

username = barbican

password = 123456

[database]

connection = mysql+pymysql://barbican:123456@localhost/barbican

  1. Populate the Key Manager service database.

›_ Console

# su -s /bin/sh -c "barbican-manage db upgrade" barbican

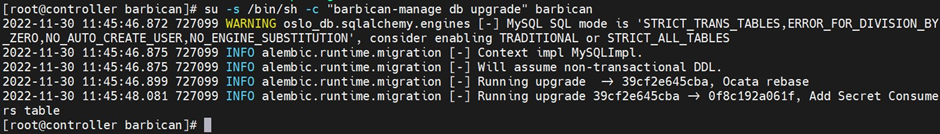

Database Upgrade

  1. Restart Barbican API service.

›_ Console

# systemctl restart openstack-barbican-api.service

  1. Restart and enable the httpd service.

›_ Console

# systemctl restart httpd

# systemctl enable httpd
