Configure the HPE Smart Array Controller

Please perform the following steps to configure the HPE Smart Array Controller.

  1. Boot the server and continuously press F10 to enter Intelligent provisioning.

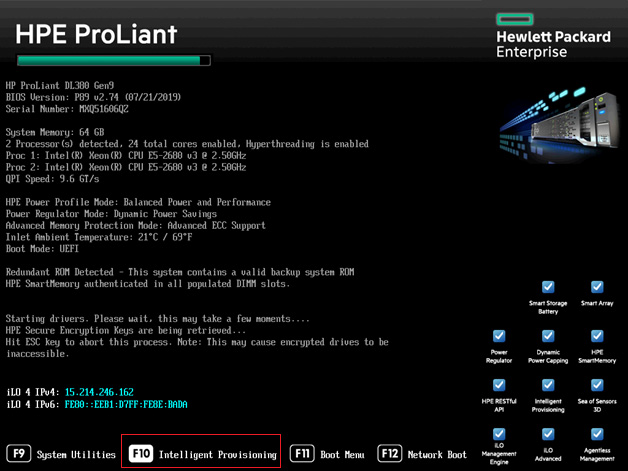

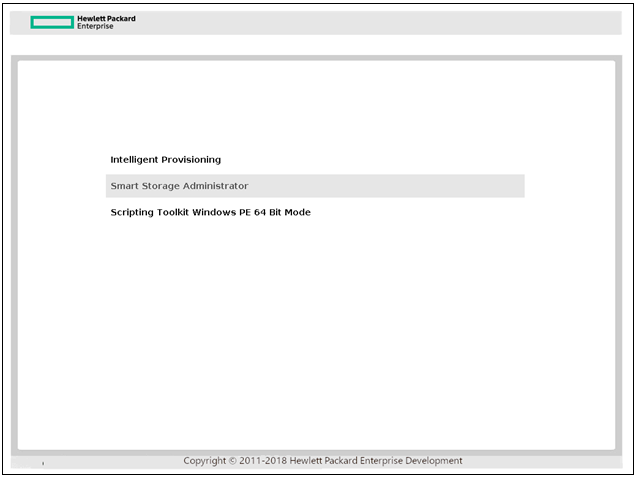

HPE ProLiant Boot Menu

  1. Open the HPE Smart Array Controller.

Please refer to the “HPE Smart Storage Administrator guide” for more details using the following link:

https://support.hpe.com/hpsc/doc/public/display?docId=c03909334



HPE Smart Array Controller

  1. Select a controller that is compatible with secure encryption.

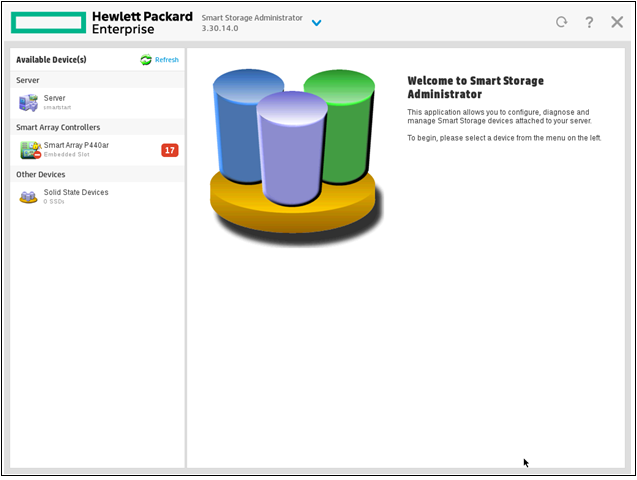

Smart Storage Administrator

  1. Click on Configure.

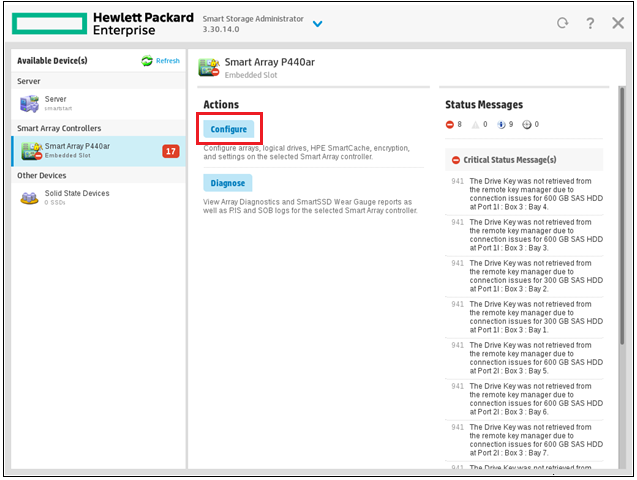

Smart Array Administrator

  1. Go to “Tools” and click on “Encryption Manager” to open it.

    1. Create a new crypto officer password.

    2. Perform the initial setup.

    3. Perform the full setup.

    4. Enter a crypto/security officer password.

    5. Enable and disallow future plaintext volumes (Recommended).

Please make sure that crypto/security officer are admins for Secure Encryption and must be trusted employees.

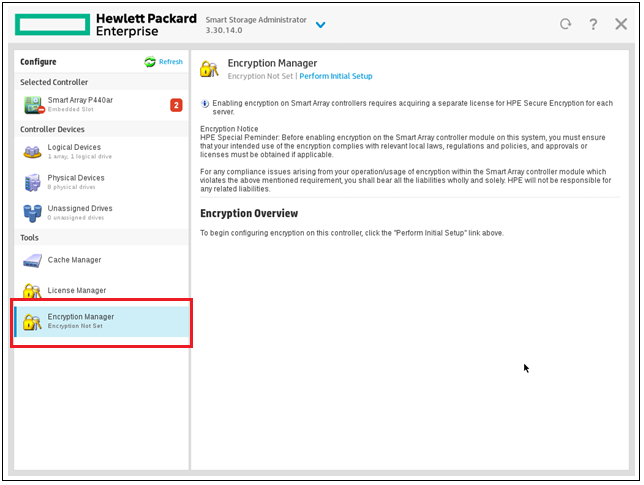

Encryption Manager

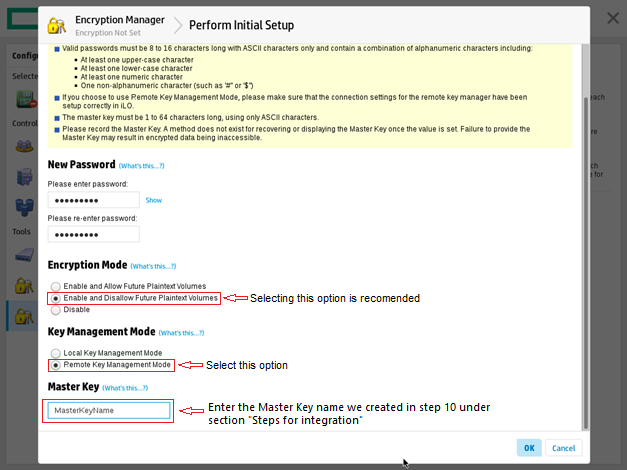

Encryption Manager - Initial Setup

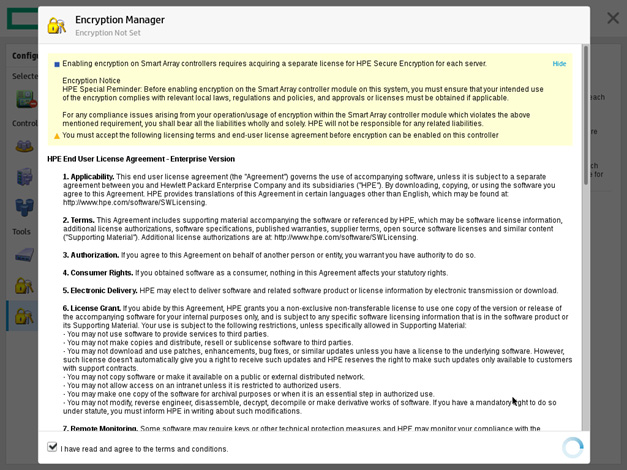

Encryption Manager - End User License Agreement

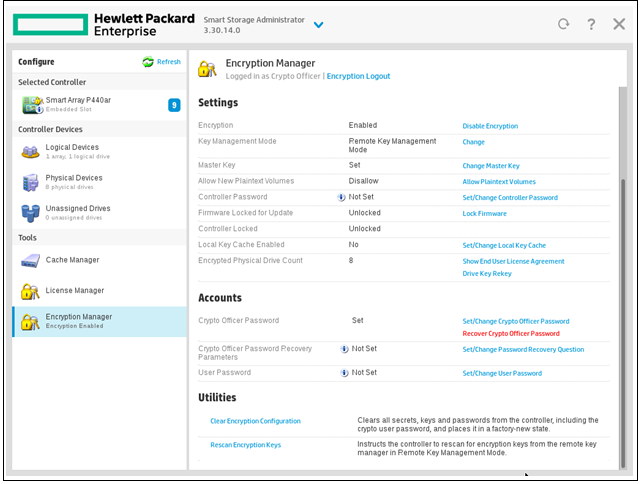

Encryption Manager - Settings

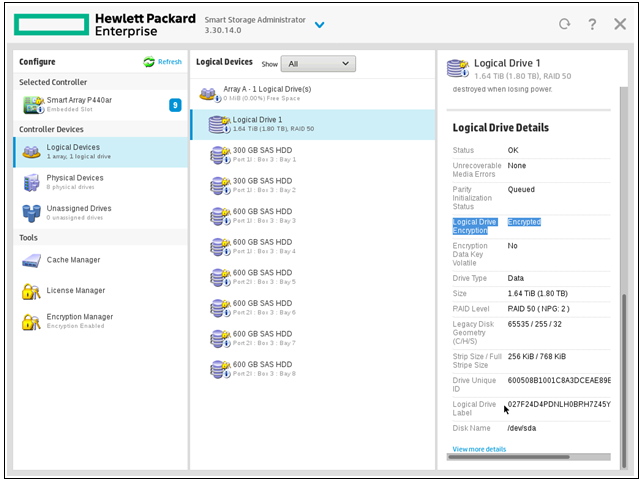

Encryption Manager - Logical Devices

With this, ESKM will be successfully integrated with ProLiant by following the procedure described above.
