With RSA Key (CA Signed Certificate)

1. Generate a keypair on Utimaco HSM with the help of keytool command.

# keytool -genkeypair -alias utimacoRSAKey -keyalg RSA -keysize 2048 -keystore NONE -storetype PKCS11 -providerClass sun.security.pkcs11.SunPKCS11 -providerArg /etc/utimaco/pkcs11-java.cfg

Provide information when prompted Here:

• RSA is the key algorithm

• 2048 is the key size

• NONE is the keystore for HSM

• PKCS11 is the storetype

• sun.security.pkcs11.SunPKCS11 is the provider class

• utimacoRSAKey is the key name that will be generated on Utimaco HSM

Provide the keystore password when prompted:

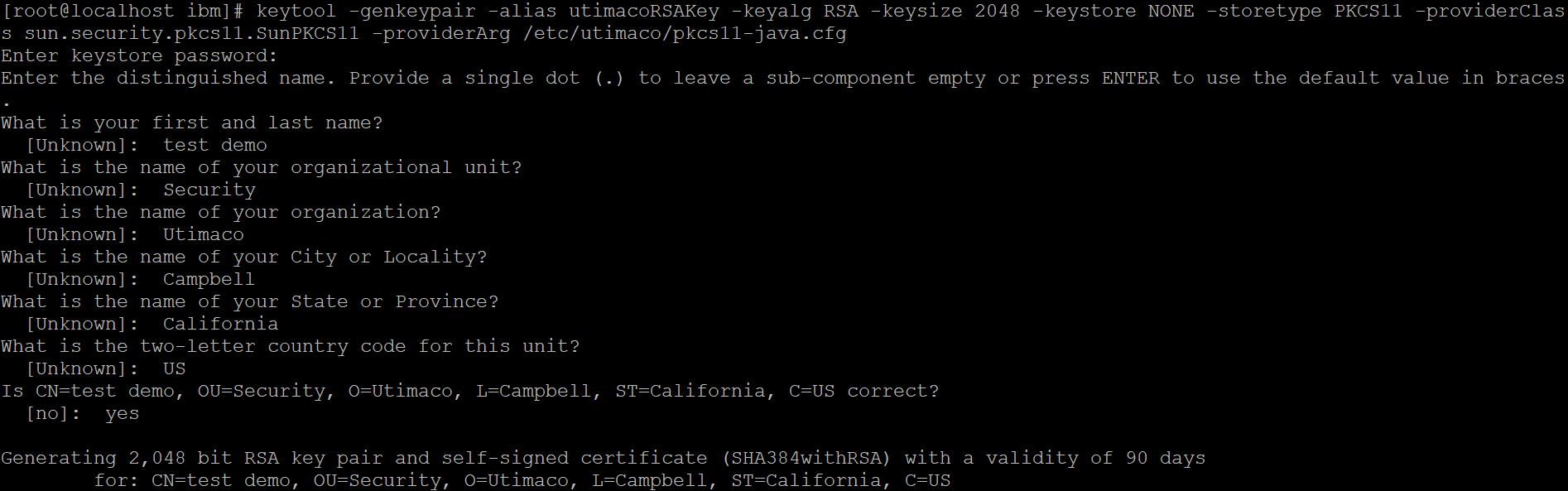

Key generation using keytool command

2. Verify the entry with same alias name is generated using keytool command.

keytool -list -keystore NONE -storetype PKCS11 -providerClass sun.security.pkcs11.SunPKCS11 -providerArg /etc/utimaco/pkcs11-java.cfg

Here:

• NONE is the keystore for HSM

• PKCS11 is the storetype

• sun.security.pkcs11.SunPKCS11 is the provider’s class

Provide the keystore password when prompted:

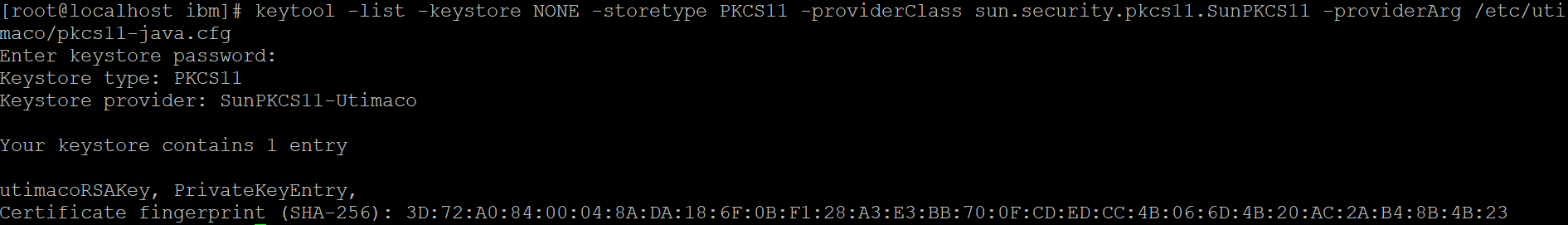

Listkeys output

3. List the objects using p11tool2.

#./p11tool2 Slot=0 LoginUser=ask ListObjects

Enter user PIN when prompted:

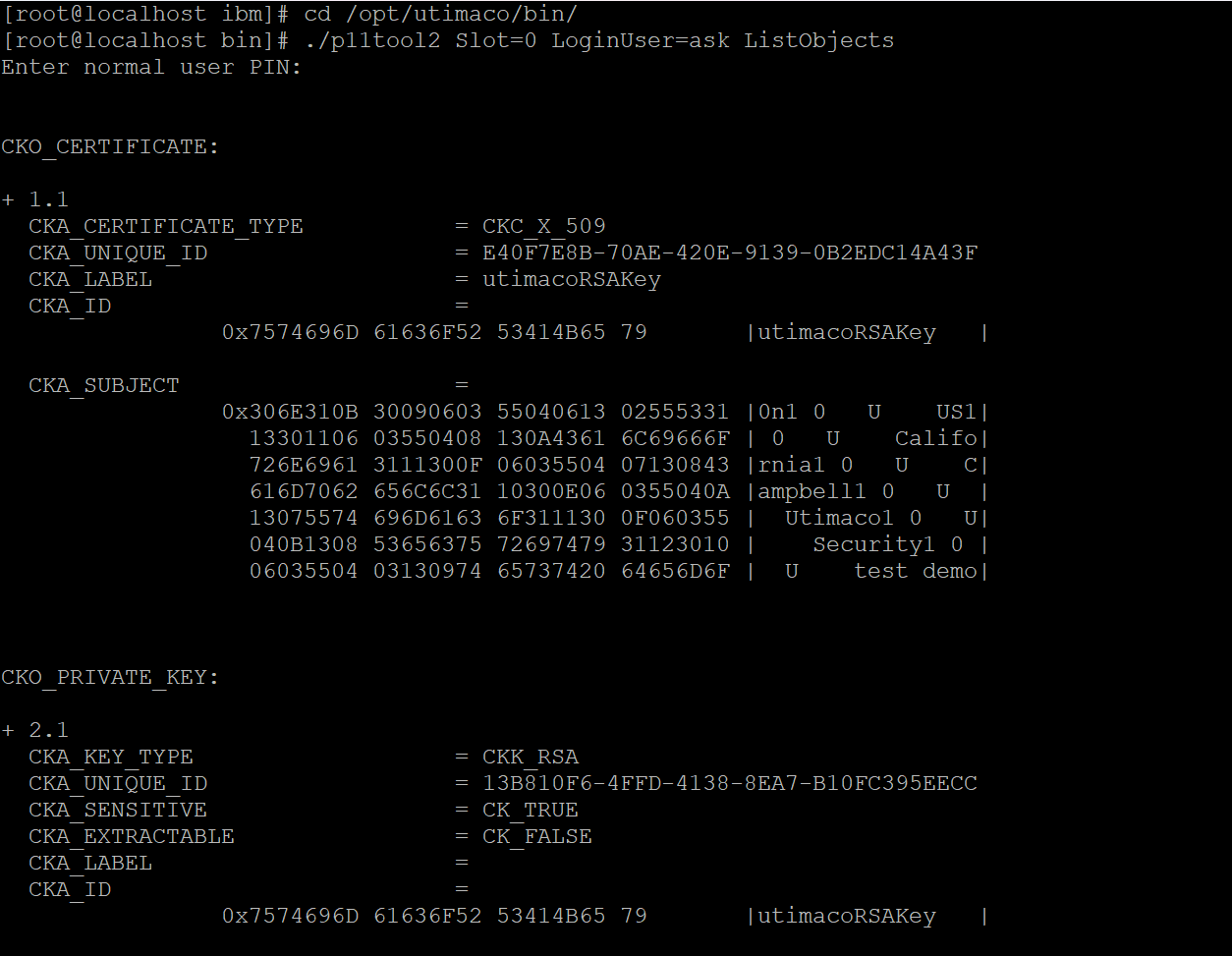

List keys output using p11tool2

4. Generate a CSR using Keytool command.

# keytool -certreq -alias utimacoRSAKey -keystore NONE -storetype PKCS11 -providerClass sun.security.pkcs11.SunPKCS11 -providerArg /etc/utimaco/pkcs11-java.cfg -file utimacoRSA.csr

Here:

• NONE is the keystore for HSM

• PKCS11 is the storetype

• sun.security.pkcs11.SunPKCS11 is the provider class

• utimacoRSAKey is the key name

• utimacoRSA.csr is the CSR file name that will be generated

Provide keystore password when prompted

5. Get this CSR signed by CA.

# openssl x509 -req -in utimacoRSA.csr -CA ca.crt -CAkey ca.key -CAcreateserial -out serverRSA.crt -days 365 -sha256

6. Copy the signed certificate and the root CA certificate and combine them into a single full-chain certificate file.

# cat serverRSA.crt ca.crt > fullchainRSA.crt

7. Import converted full chain certificate into HSM keystore.

# keytool -importcert -alias utimacoRSAKey -file fullchainRSA.crt -keystore NONE -storetype PKCS11 -providerClass sun.security.pkcs11.SunPKCS11 -providerArg /etc/utimaco/pkcs11-java.cfg

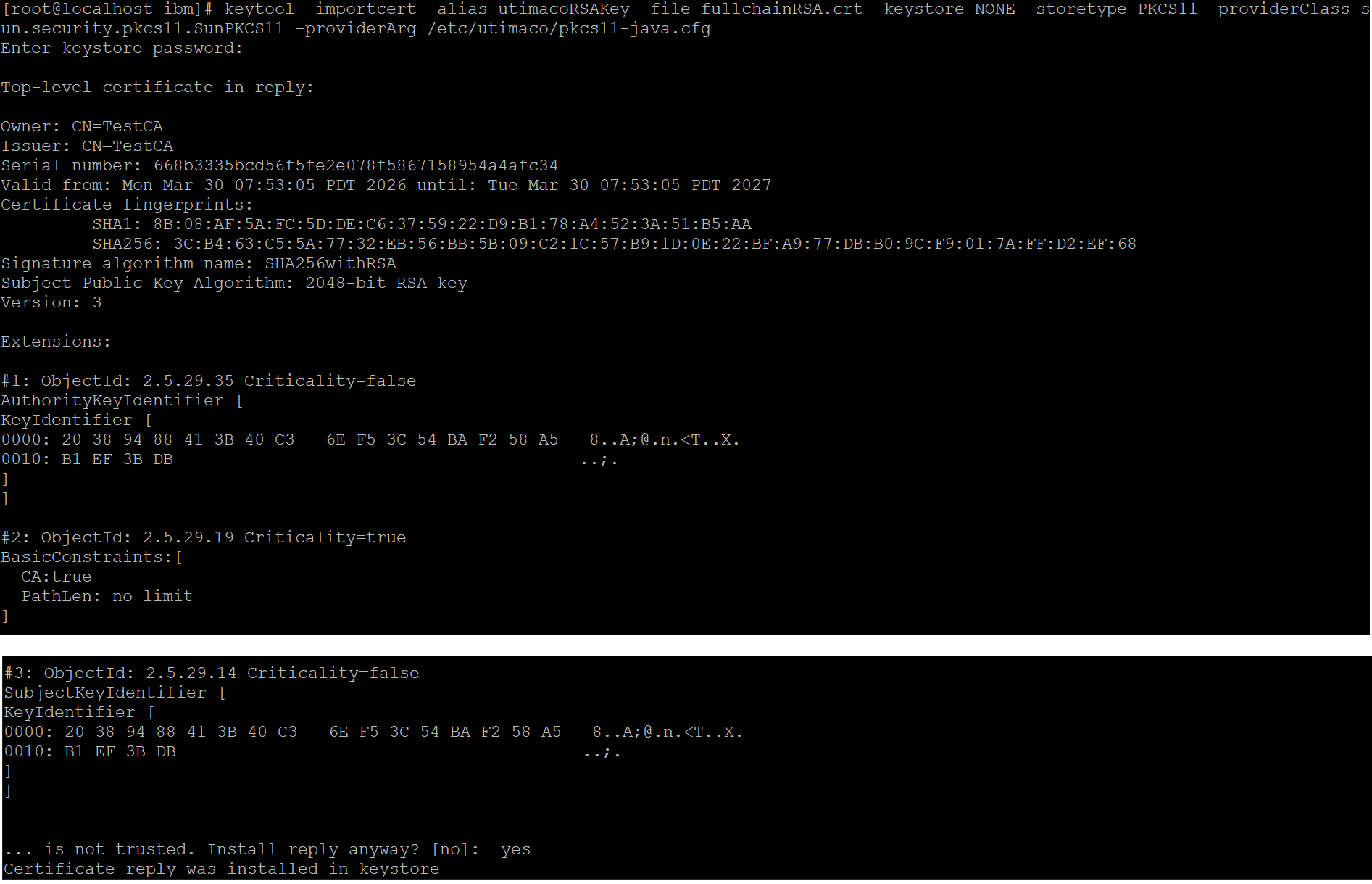

Importing full chain certificate

8. Sign any sample jar file with jarsigner command.

# jarsigner -tsa http://timestamp.digicert.com -keystore NONE -storetype PKCS11 -providerClass sun.security.pkcs11.SunPKCS11 -providerArg /etc/utimaco/pkcs11-java.cfg -signedjar HelloWorldRSASigned.jar HelloWorld.jar utimacoRSAKey

Here

• http://timestamp.digicert.com is URL of timestamp server

• NONE is the keystore for HSM

• PKCS11 is the storetype

• sun.security.pkcs11.SunPKCS11 is the provider class

• HelloWorldRSASigned.jar is the new output signed jar file that will be generated

• HelloWorld.jar is the jar file to be signed

• utimacoRSAKey is the RSA key used for jar signing

Provide the keystore password when prompted:

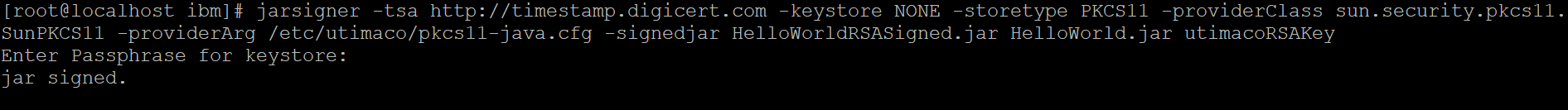

Signing the jar using jarsigner command

9. Verify the signed jar.

# jarsigner -verify HelloWorldRSASigned.jar

Here HelloWorldRSASigned.jar is the newly generated signed jar file:

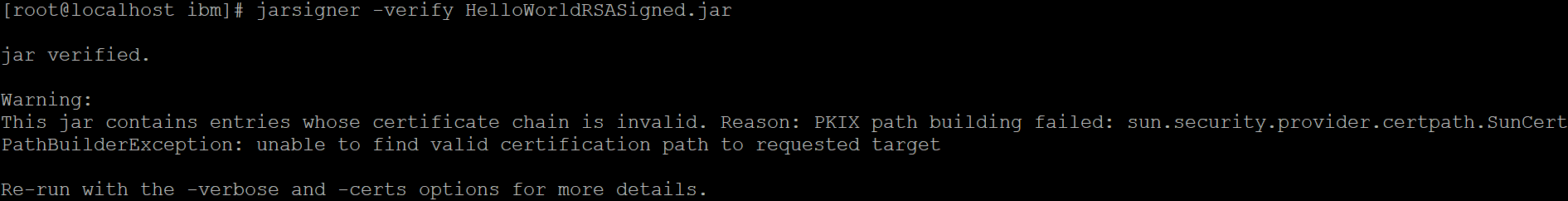

Verifying signed jar
