Installing and Running Bind9

  1. Download the latest version of source code file from BIND 9 - ISC.

  2. Extract the .tar file.

›_ Console

# tar -xvf bind9-9.20.23.tar.gz

  1. Go to the extracted folder and run the autoreconf command.

›_ Console

# autoreconf -fi

  1. Install the dependent packages for Bind9 .

›_ Console

# dnf install openssl-devel perl libicu-devel pkgconf userspace-rcu-devel libcap-devel libuv-devel

  1. Run theconfigure command.

›_ Console

# configure CC="gcc -m64" -enable-threads –disable-doh

  1. Build and install Bind9 as described below:

›_ Console

# make
# make install

It will install Bind9 on default directory as /usr/local/.

  1. Move the file named.root.key and named.rfc1912.zones to /etc directory.

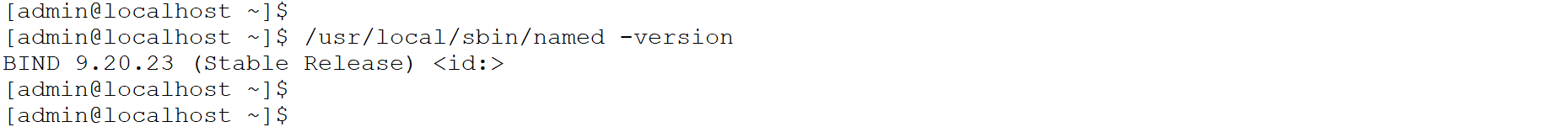

  2. Check the version of Bind9 as described below.



Bind9 version output

  1. Create a forward and reverse zone file at the /var/named directory.

For example, below are sample files example.net and exampleRev.net for forward and reverse zones respectively.

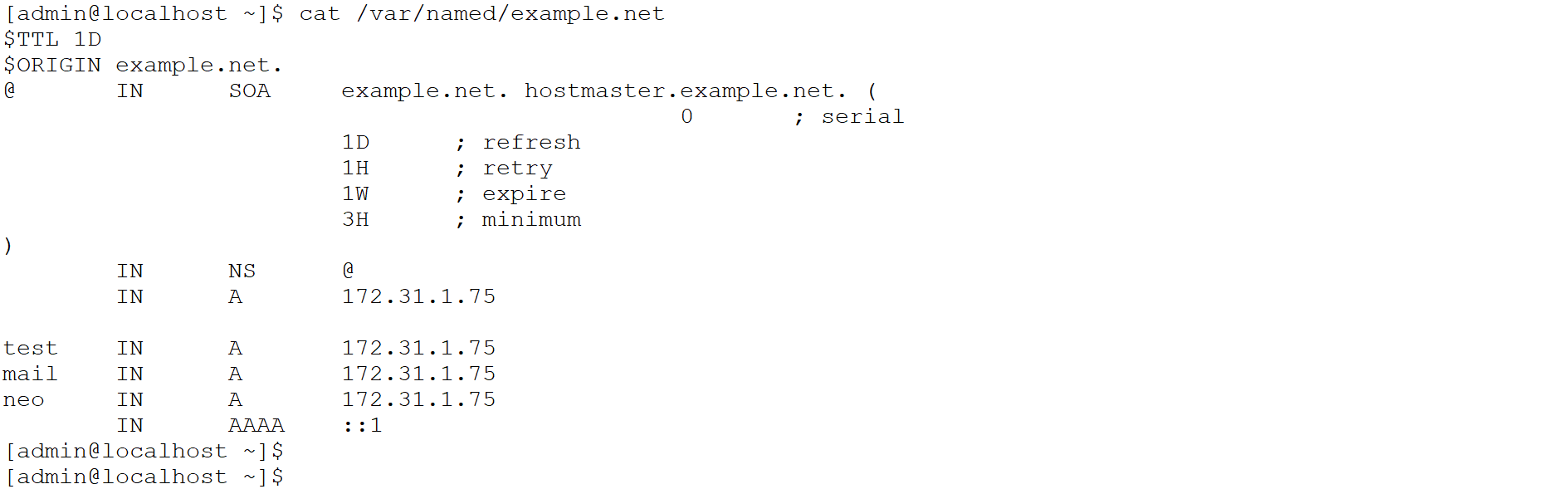

example.net

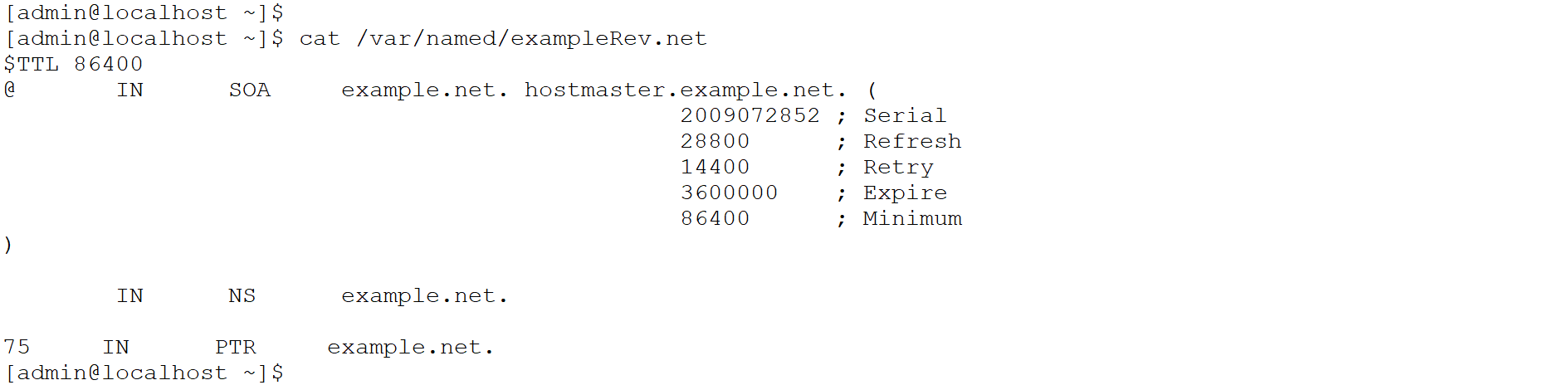

exampleRev.net

  1. Make the appropriate changes in the configuration file of Bind9 that is /usr/local/etc/named.conf related to zone as highlighted. Below is the sample file named.conf.

named.conf


#cat /usr/local/etc/named.conf

options {
    listen-on port 53 {
        127.0.0.1;
        172.31.1.75;
    };

    listen-on-v6 port 53 {
        ::1;
    };

    directory "/var/named";

    dump-file           "/var/named/data/cache_dump.db";
    statistics-file     "/var/named/data/named_stats.txt";
    memstatistics-file  "/var/named/data/named_mem_stats.txt";
    secroots-file       "/var/named/data/named.secroots";
    recursing-file      "/var/named/data/named.recursing";

    allow-query {
        localhost;
    };

    recursion no;
    dnssec-validation no;

    managed-keys-directory "/var/named/dynamic";

    pid-file "/run/named/named.pid";
    session-keyfile "/run/named/session.key";

    include "/etc/crypto-policies/back-ends/bind.config";
};

logging {
    channel default_debug {
        file "data/named.run";
        severity dynamic;
    };
};

zone "." IN {
    type hint;
    file "named.ca";
};

zone "example.net" {
    type primary;
    file "example.net";
};

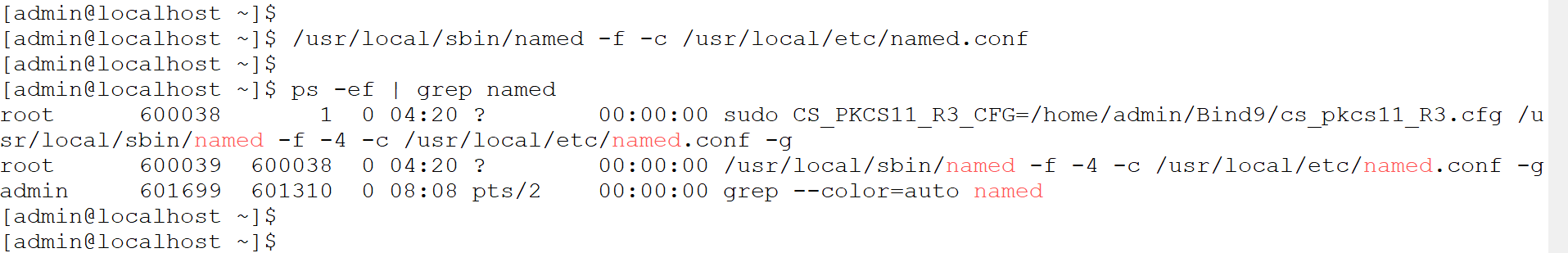

  1. Start the 'named' service for Bind9 using below command and verify the 'named' process running.

›_ Console

#/usr/local/sbin/named -f -c /usr/local/etc/named.conf


Start named service
