Logs and Validation Steps

ONTAP volume encryption creates cryptographic keys on Utimaco ESKM, which are then used to encrypt and decrypt the volumes. You can verify the logs from Utimaco ESKM.

1. Open the Utimaco ESKM page and click on the Device tab.

2. Click on Log Viewer under Logs & Statistics.

3. Click on KMIP under Log Viewer.

4. Review the logs.

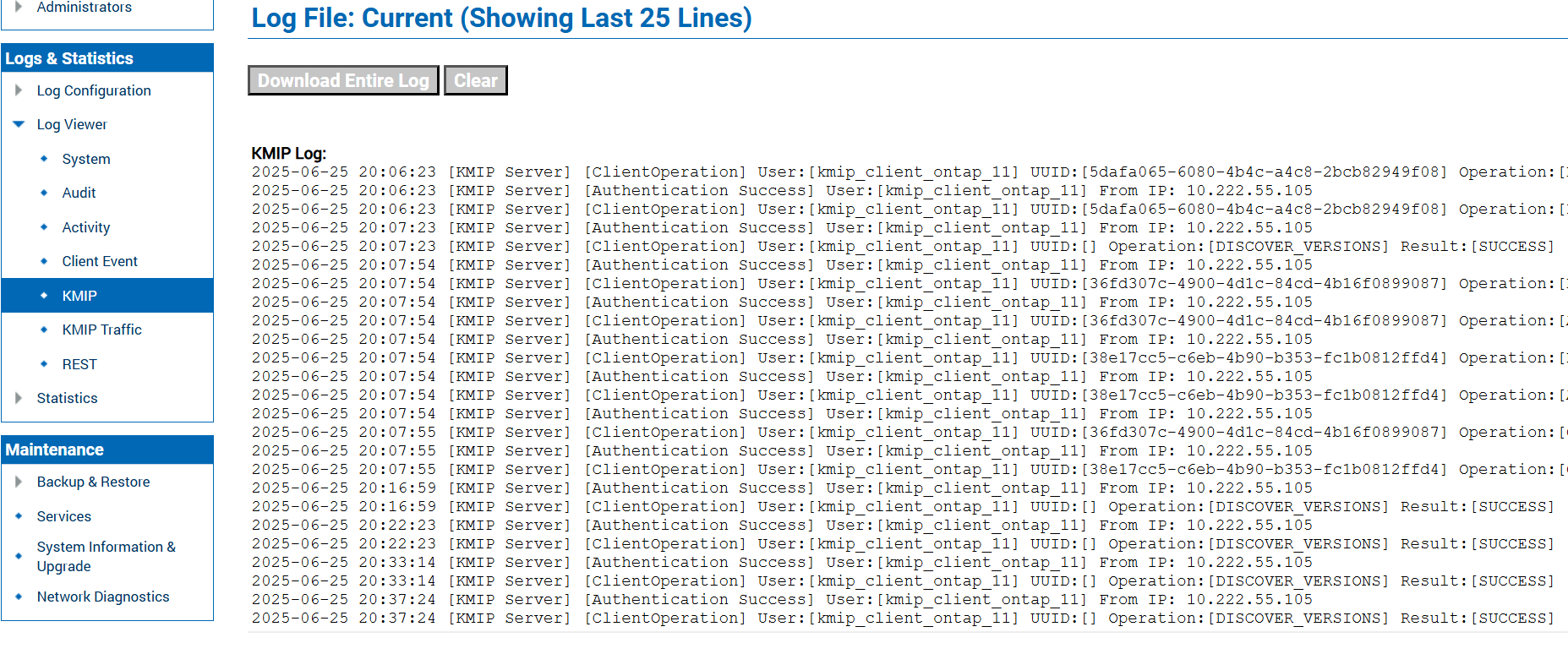

KMIP logs

5. To view the keys, go to the Security tab

6. Select KMIP Objects under the Keys & KMIP Objects section

7. The generated keys will be displayed here.

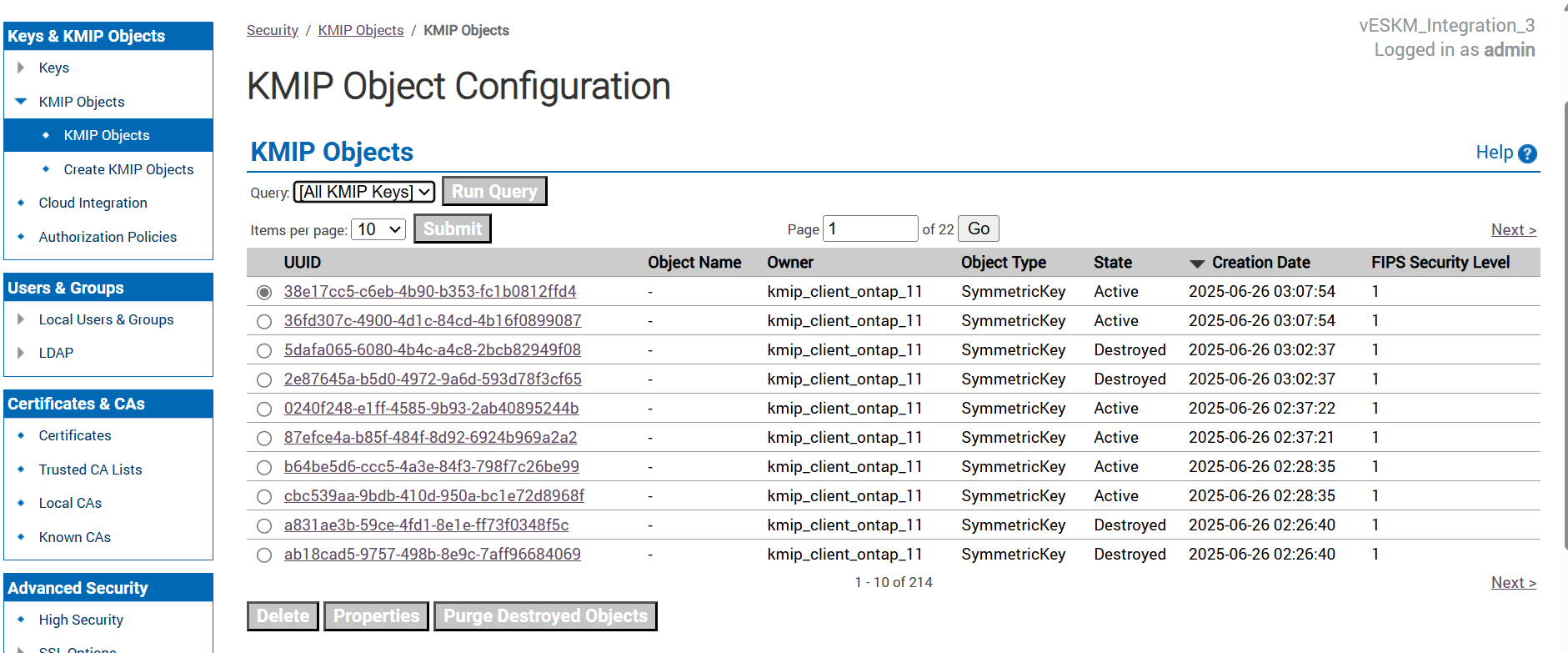

KMIP Objects
