Generating a Symmetric Key in OpenStack Barbican

  1. Generate a new 256-bit key using openstack secret order create command and store it in Barbican.

›_ Console

# openstack secret order create --name app_key --algorithm aes --mode ctr --bit-length 256 --payload-content-type=application/octet-stream key

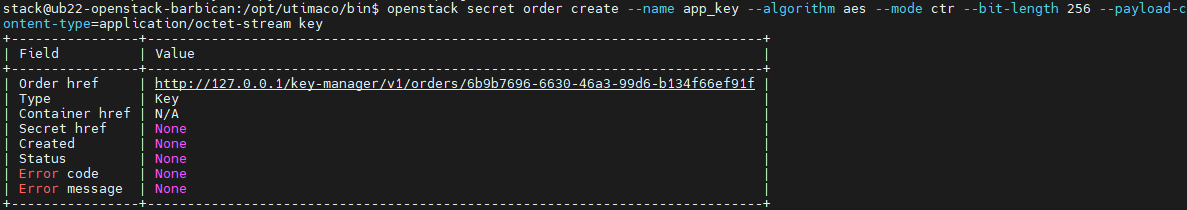

Symmetric key created and stored in Barbican

  1. You can also verify the encryption operation logging in PKCS11 log file cs_pkcs11_R2.log during secret generation as shown below.

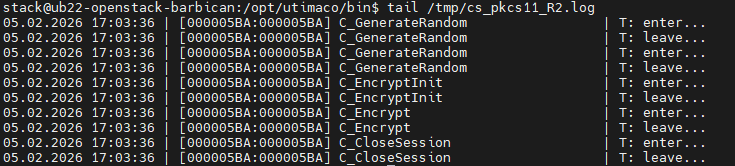

PKCS#11 logs showing key encryption

  1. View the details of the order to identify the location of the generated key, shown here as the Secret href value.

›_ Console

# openstack secret order get <order_href>

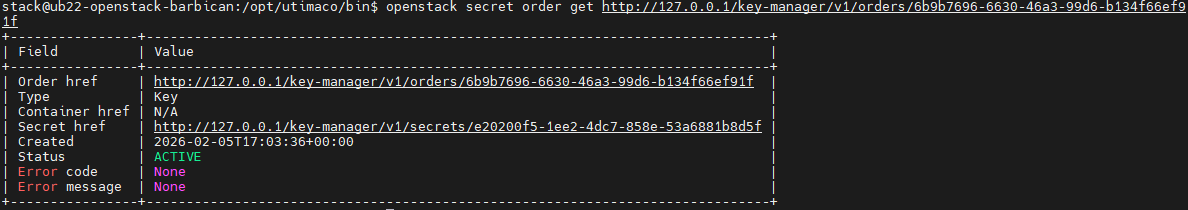

Viewing order details

  1. Retrieve the details of the secret.

›_ Console

# openstack secret get <secret_href>

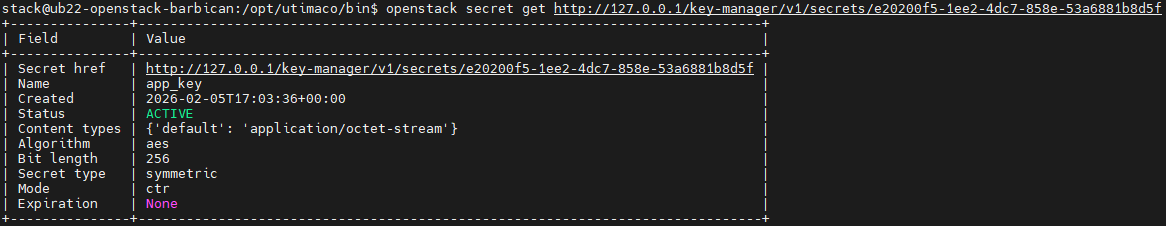

Viewing secret details

  1. Alternatively, you can list the symmetric key that has been generated by the command below.

›_ Console

# openstack secret list

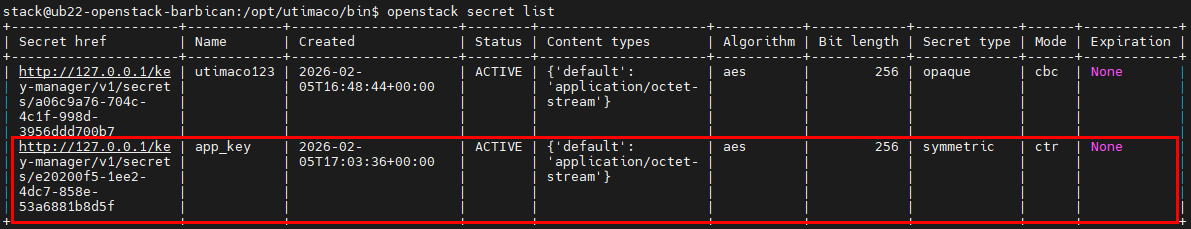

Symmetric key in secret list
