Verify HSM Key Presence and Connectivity

After deploying the application and running the key generation process, verify that the RSA key has been successfully created and that the OpenShift pods can communicate with the Utimaco HSM using the configured PKCS#11 libraries.

1. Login to the running securityserver pod.

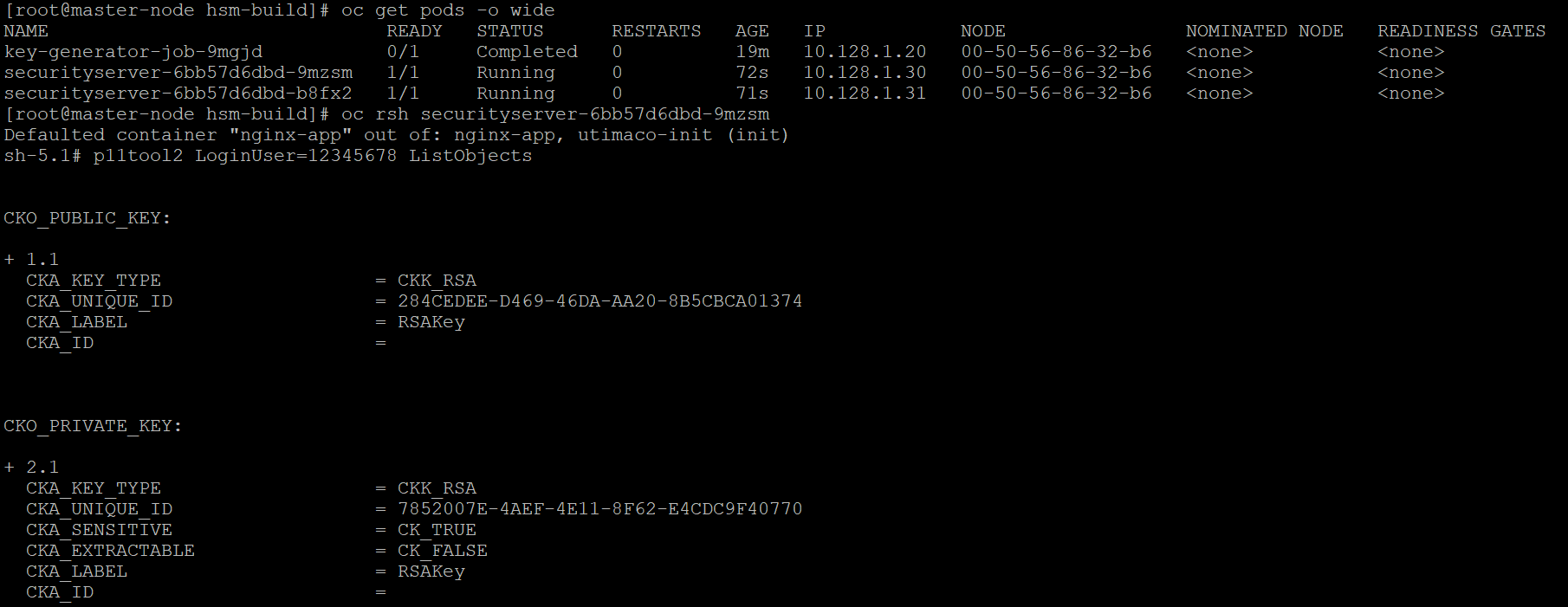

2. Inside the pod, execute the p11tool2 command to list the key objects stored in the HSM.

Verify Keys

3. Verify that an object with the label “RSAKey” is listed in the output.

This confirms that the RSA key pair was successfully generated during key generation job and securely stored inside the Utimaco HSM. Successful execution of this command also confirms that the deployed pod has successfully established secure connectivity with the HSM using the configured Utimaco PKCS#11 libraries.
