Login to the Linux machine where Splunk Universal Forwarder is installed.
Create a folder eskm under /var/logs and give permission.

mkdir -p /var/log/eskm
chown root:root /var/log/eskm
chmod 750 /var/log/eskm

Create an eskm.conf file under /etc/syslog-ng/conf.dwith the following configurations.

@version: 3.29

# Network source - accept TCP & UDP from ESKM
source s_eskm_net {
    network(
        ip("0.0.0.0")
        port(514)
        transport("tcp")
    );
    network(
        ip("0.0.0.0")
        port(514)
        transport("udp")
    );
};

# Destination file for ESKM logs
destination d_eskm {
    file("/var/log/eskm/eskm.log"
        create_dirs(yes)
        perm(0640)
    );
};

# Log path
log {
    source(s_eskm_net);
    destination(d_eskm);
};

After creating the eskm.conf file under /etc/syslog-ng/conf.d, restart the syslog-ng service to apply the new configuration. Enabling the service ensures it automatically starts on system boot, and checking its status verifies that syslog-ng is running correctly and ready to receive ESKM log events.

systemctl restart syslog-ng
systemctl enable syslog-ng
systemctl status syslog-ng

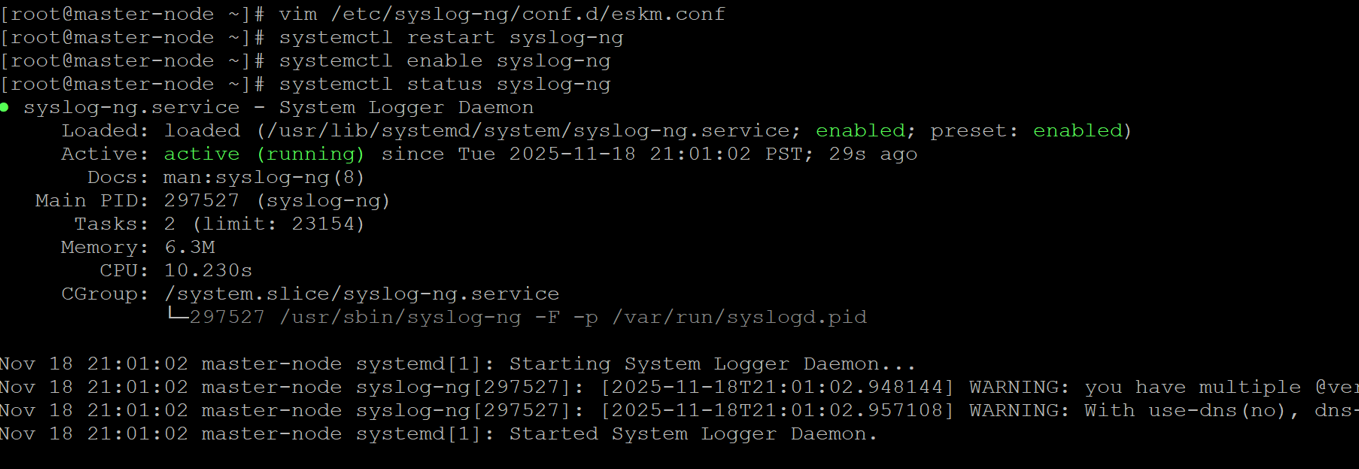

The systemctl status output should display the service as active (running), confirming that syslog-ng has successfully loaded the new configuration and is operational.

Syslog-ng started running

Create an inputs.conffile under /opt/splunkforwarder/etc/system/local/ with the following configurations.

[monitor:///var/log/eskm/eskm.log]
index = eskm_index
sourcetype = utimaco:eskm
crcSalt = <SOURCE>

Create an outputs.conf file under /opt/splunkforwarder/etc/system/local/ with the following configurations.

[tcpout]
defaultGroup = default-indexer-group

[tcpout:default-indexer-group]
server = <SPLUNK_ENTERPRISE_IP>:9997

Replace <SPLUNK_ENTERPRISE_IP> with the IP address of the server where Splunk Enterprise is installed and listening on port 9997 for Universal Forwarder connections.

After creating or updating both the inputs.conf and outputs.conf files, the Splunk Universal Forwarder must be restarted for the new configurations to take effect.

 /opt/splunkforwarder/bin/splunk restart
