For OpenJDK8 with RSA Key

1. Generate a keypair on Utimaco HSM.

# keytool -genkey -keyalg RSA -keysize 2048 -keystore NONE -storetype PKCS11 storepass 123456  -providername SunPKCS11-CryptoServer -alias tomcatsslkey

Provide information when prompted here:

• RSA is the key algorithm

• 2048 is the key size

• NONE is the keystore for HSM

• PKCS11 is the storetype

• 123456 is the slot PIN

• SunPKCS11-CryptoServer is the provider name

• tomcatsslkey is the key name that will be generated on Utimaco HSM

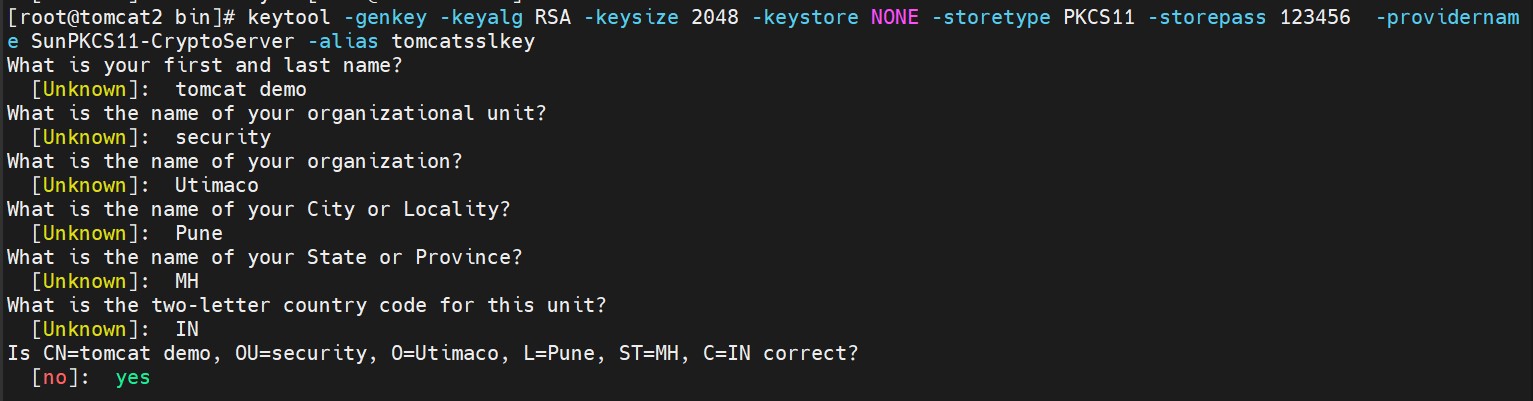

Key generation using Keytool command

2. Verify that the keys have been generated using keytool command.

# keytool -list -keystore NONE -storetype PKCS11 -providername SunPKCS11-
CryptoServer -storepass 123456 -v

Here:

• NONE is the keystore for HSM

• PKCS11 is the storetype

• 123456 is the slot PIN

• SunPKCS11-CryptoServer is the provider’s name

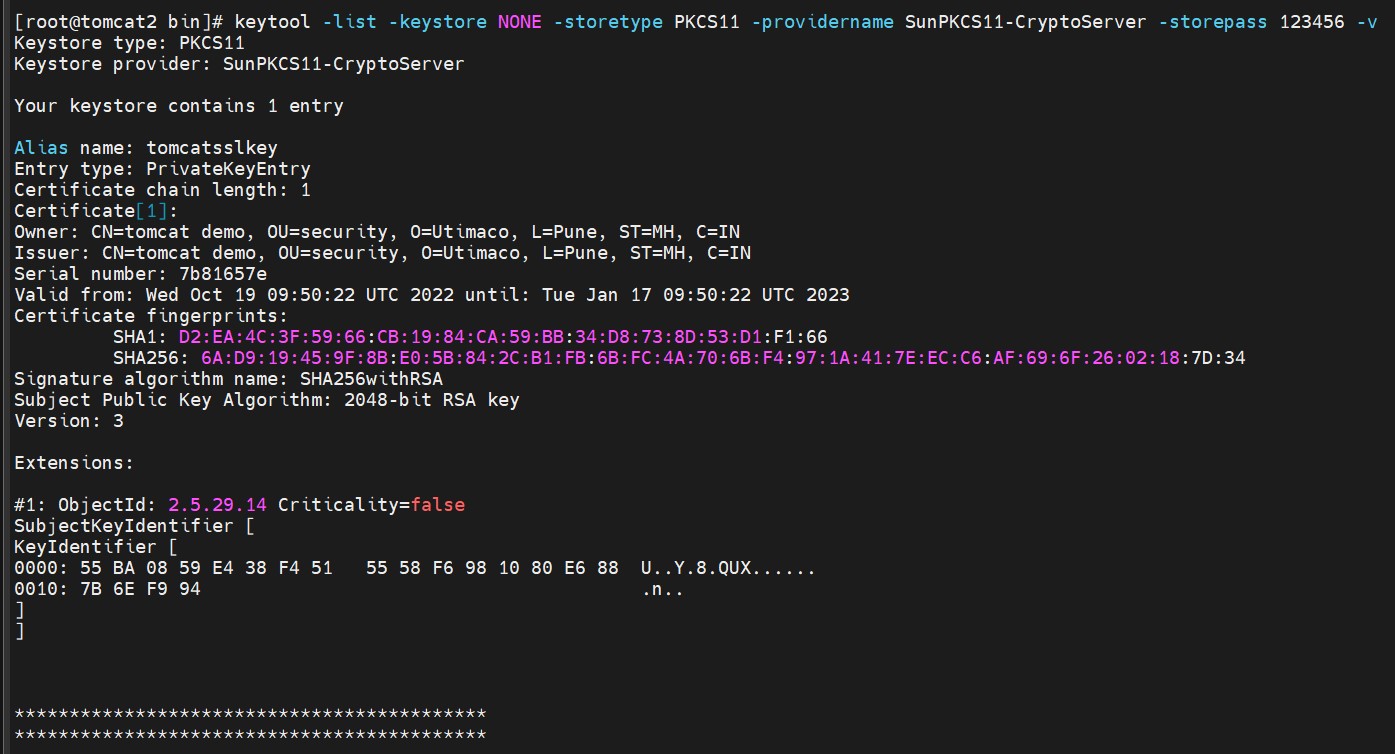

Listkeys output

3. List the keys using p11tool2.

# /opt/utimaco/bin/p11tool2 Slot=0 LoginUser=123456 ListObjects

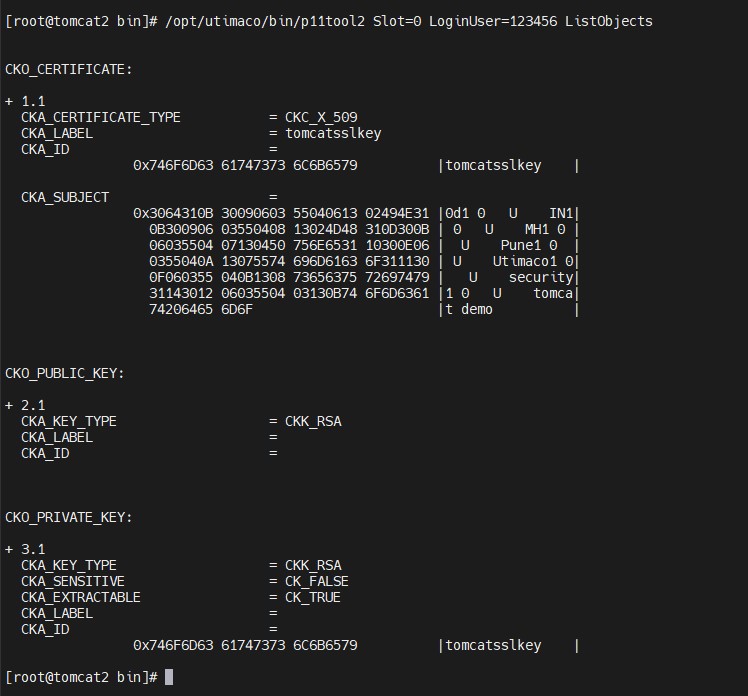

List keys output using p11tool2

4. Generate a CSR using Keytool command.

# keytool -certreq -keystore NONE -storetype PKCS11 -storepass 123456 providername SunPKCS11-CryptoServer -alias tomcatsslkey -file tomcatssl.csr

Here:

• NONE is the keystore for HSM

• PKCS11 is the storetype

• 123456 is the slot PIN

• SunPKCS11-CryptoServer is the provider name

• tomcatsslkey is the key name

• tomcatssl.csr is the CSR file name that will be generated

5. Get this CSR signed by CA.

6. Copy the signed certificate along with root CA certificate chain on the tomcat server.

7. Import the signed certificate chain reply using the command below.

# keytool -importcert -trustcacerts -alias tomcatsslkey -file /home
/tomcat_demo.p7b -storetype PKCS11 -keystore NONE -providername SunPKCS11-
CryptoServer -storepass 123456

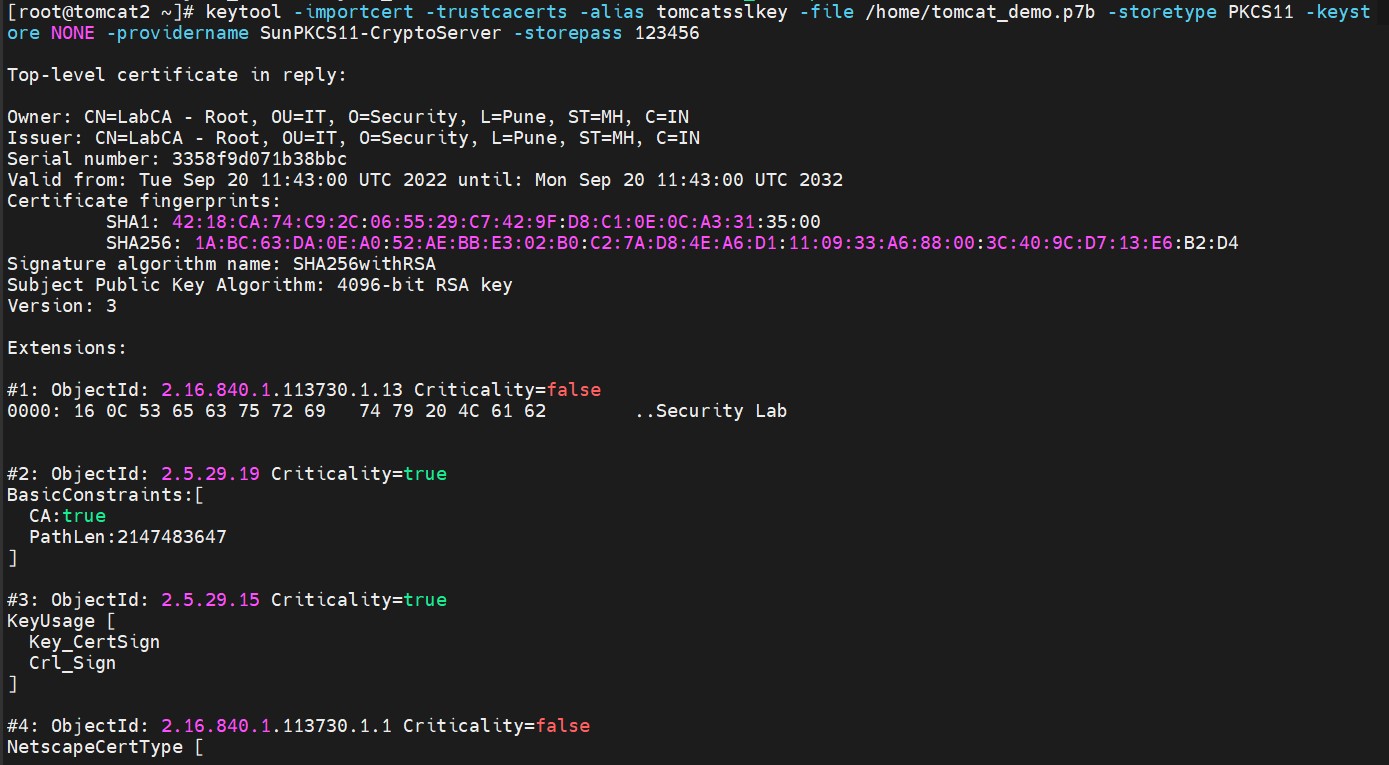

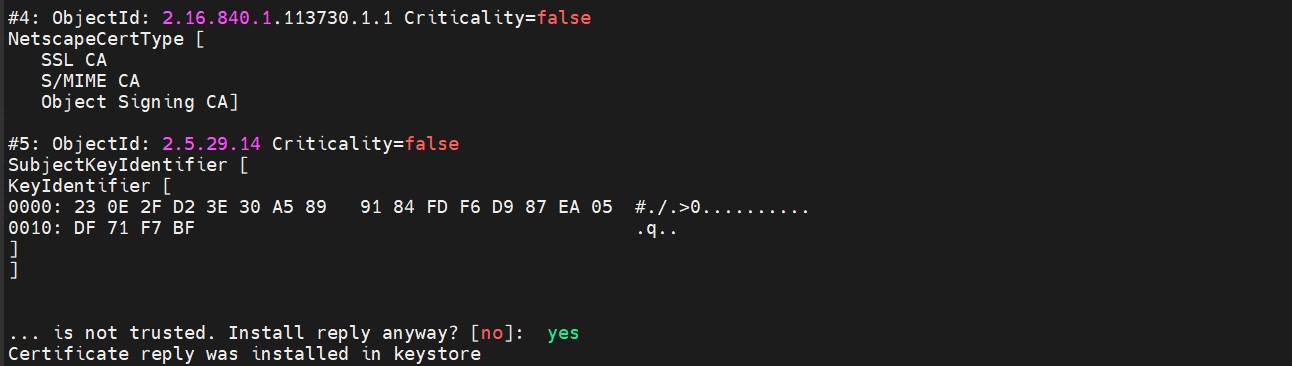

Import user certificate into keystore

8. Verify that the keytool command shows the signed certificate as well as root CA certificate.

# keytool -list -keystore NONE -storetype PKCS11 -providername SunPKCS11-
CryptoServer -storepass 123456 -v

Here:

• NONE is the keystore for HSM

• PKCS11 is the storetype

• 123456 is the slot PIN

• SunPKCS11-CryptoServer is the provider’s name

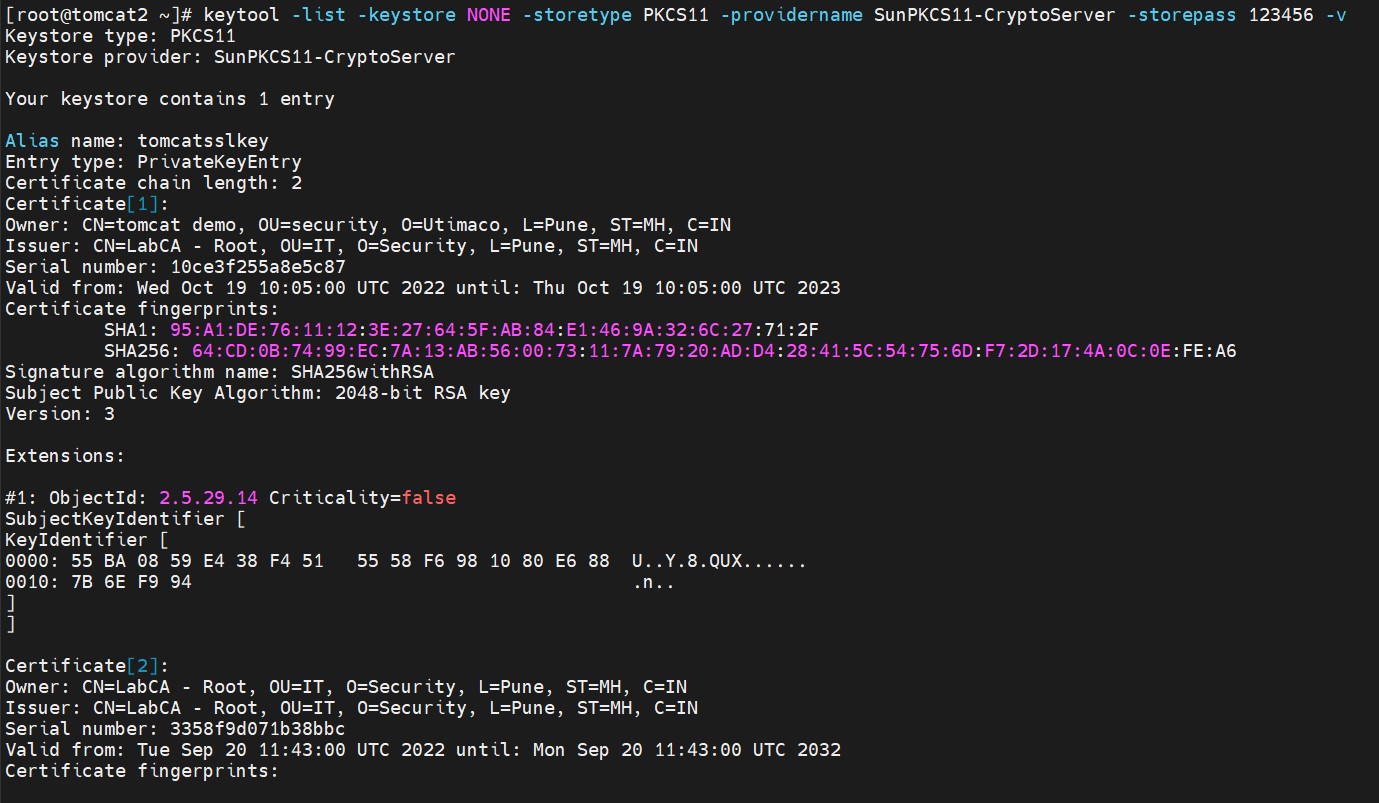

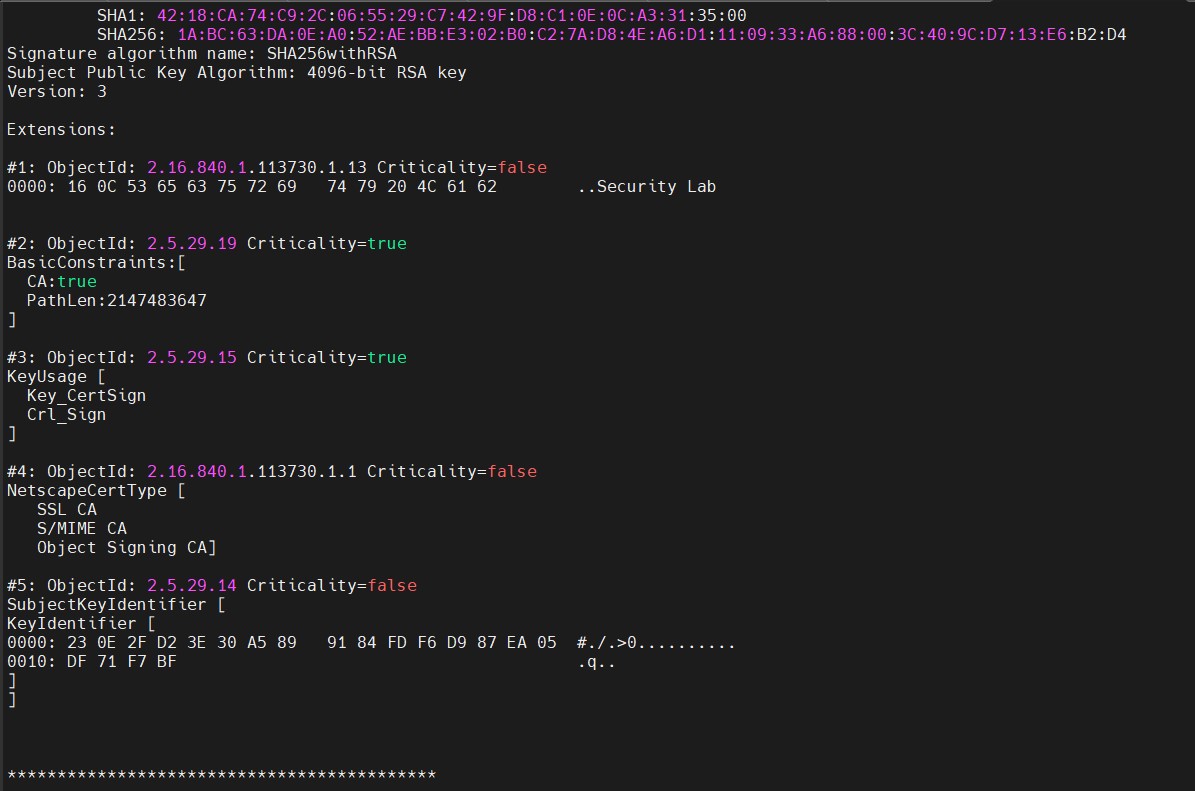

Keytool list output
