Update the server.xml File for the SSL Configuration

1. Open the server.xml file.

# vi /opt/tomcat/conf/server.xml

2. Add the following entries to the connector section for SSL.

<Connector port="8443" protocol="org.apache.coyote.http11.Http11NioProtocol"
            maxThreads="150" SSLEnabled="true">
        <UpgradeProtocol className="org.apache.coyote.http2.Http2Protocol" />
        <SSLHostConfig>
            <Certificate certificateKeystoreFile=""
                  certificateKeystoreType="PKCS11"
                  certificateKeystoreProvider="SunPKCS11-CryptoServer"
                  certificateKeyAlias=" tomcatsslkey "
                  certificateKeystorePassword="123456"
                  type="RSA" />
        </SSLHostConfig>
    </Connector>

Here:

• certificateKeystoreFile is blank as the HSM is being used

• certificateKeystoreType is pkcs11 as the keystore is being used

• certificateKeystoreProvider is SunPKCS11-CryptoServer

• certificateKeyAlias is the name of the key generated using the keytool command

• certificateKeystorePassword is the password of the HSM keystore

• type is the key algorithm to use (RSA/EC)

3. Reload the daemon using:

# systemctl daemon-reload

4. Restart the Tomcat service using:

# systemctl restart tomcat

5. Confirm that the Tomcat status is running using:

# systemctl status tomcat

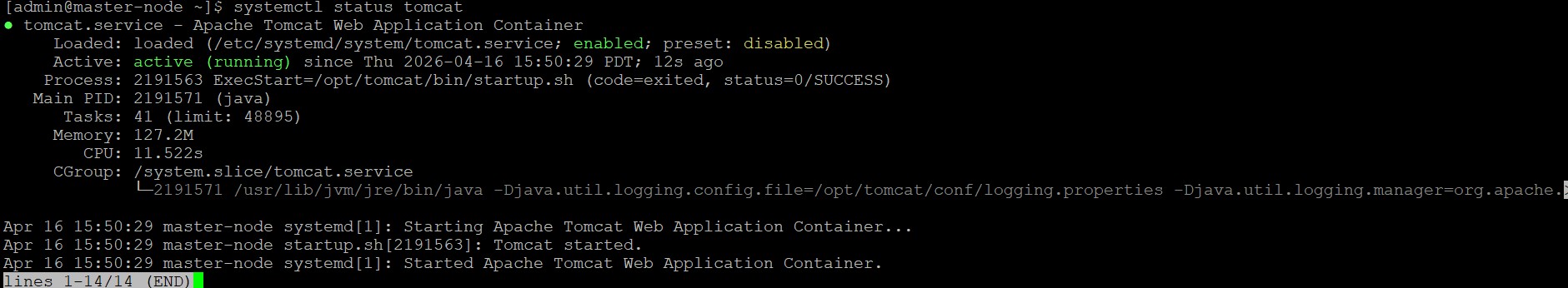

6. The below output shows it is running:

Tomcat Service Status Output

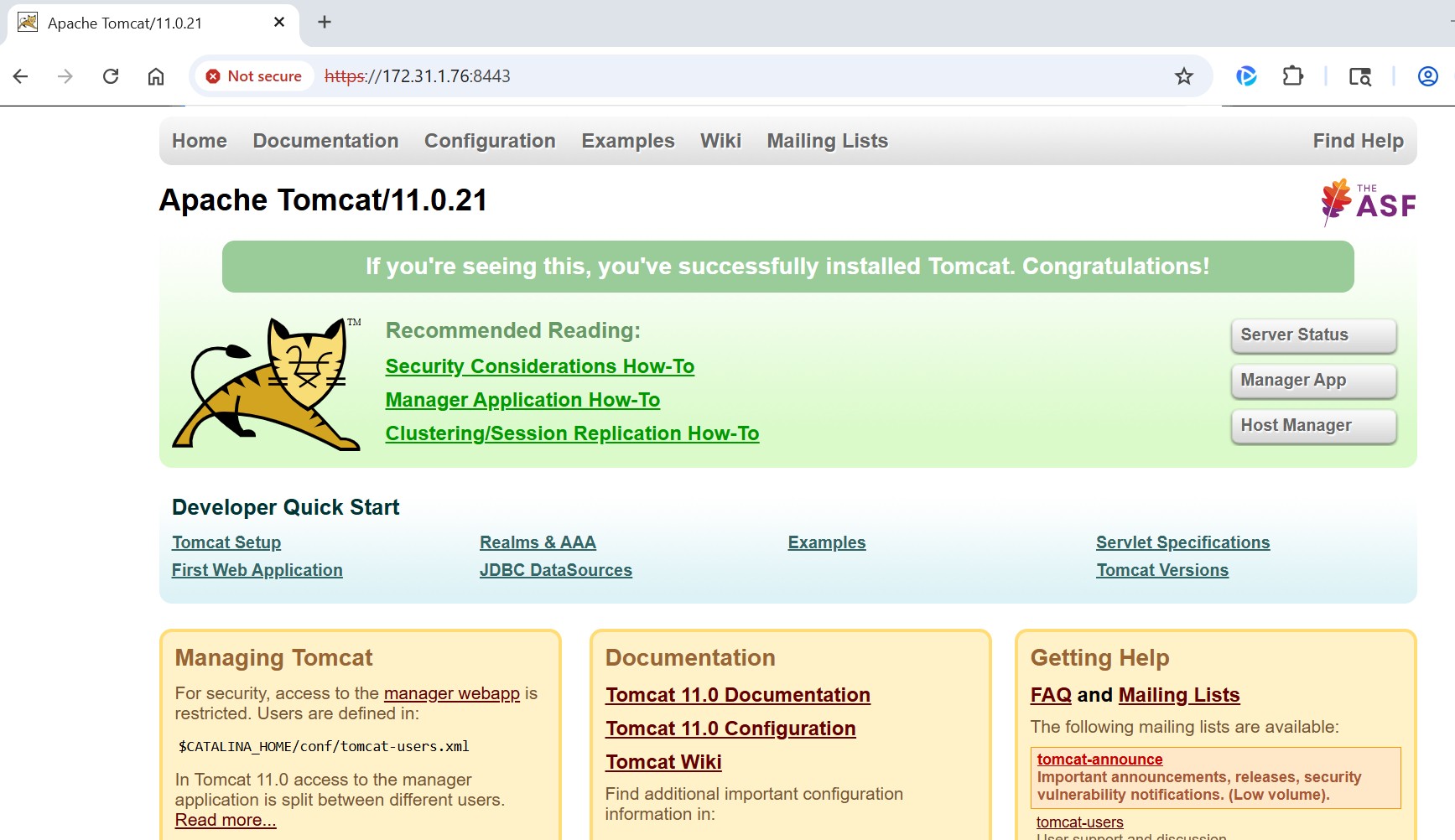

7. Now access the page over https using https://<ip>:8443.

Tomcat Service Status Output - Browser
