The ESKM Server Certificate is required to enable secure communication between DD3300 (KMIP Client) and ESKM ( KMIP Server). It allows DD3300 to the authenticate the ESKM server during the TLS/SSL handshake, ensuring the connection is trusted and encrypted.
To create an ESKM server certificate, perform the following steps:
-
Click the Security tab.
-
In Certificates and CAs, select Certificates.
-
Enter Certificate Name, Country Name, State and Province Name, Locality Name, Organization Name, and Organization Unit Name.
-
Select RSA-2408 from the Algorithm dropdown list.
-
Select the previously created CA certificate name from the Local CA dropdown list.
-
Select Server from the Certificate Purpose dropdown list.
-
Click Create.

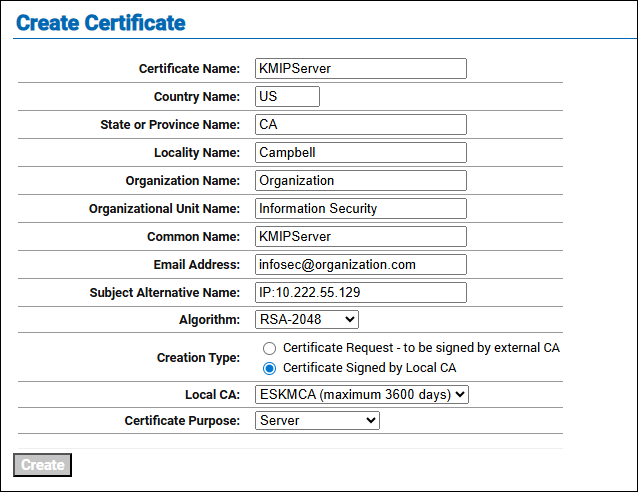

Create Certificate
