Generate the key pair using the below p11tool2 command.

# ./p11tool2 Slot=0 LoginUser=Gnupg1234 PubKeyAttr=CKA_LABEL="GPGPublicKey",CKA_MODULUS_BITS=2048,CKA_ID=0x45 PrvKeyAttr=CKA_LABEL="GPGPrivateKey",CKA_EXTRACTABLE=CK_TRUE,CKA_ID=0x45 GenerateKeyPair=RSA

Only RSA keys are supported with GnuPG PKCS11 SCD.

Verify that the keys are generated.

# ./p11tool2 Slot=0 LoginUser=Gnupg1234 ListObjects

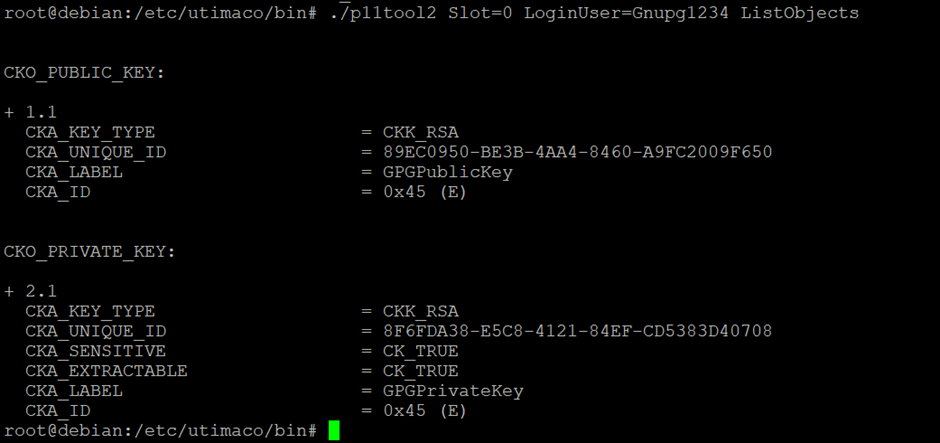

Listing keys on HSM slot

Install opensc and openssl-pkcs11.

# apt update
# apt install -y libengine-pkcs11-openssl

Open openssl shell and load the dynamic engine.

# openssl engine dynamic \
  -pre SO_PATH:/opt/openssl-1.1.1/lib/engines-1.1/pkcs11.so \
  -pre ID:pkcs11 \
  -pre LIST_ADD:1 \
  -pre LOAD \
  -pre MODULE_PATH:/etc/utimaco/lib/libcs_pkcs11_R3.so

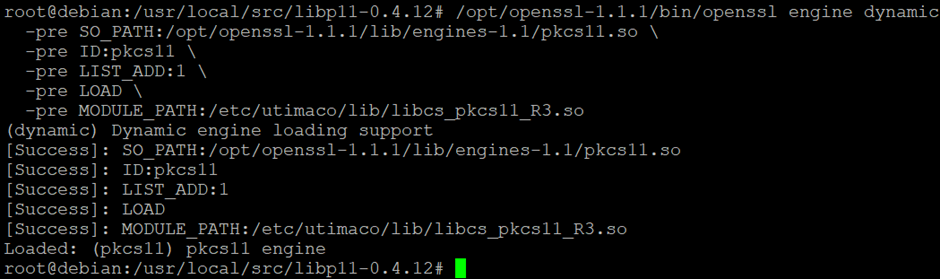

Loading dynamic engine in openssl

Run the following command to generate a self-signed certificate. Provide slot PIN when prompted.

openssl req -new -x509
  -engine pkcs11 \
  -keyform engine \
  -key "pkcs11:id=%45;type=private" \
  -sha256 \
  -days 365 \
  -out test.pem \
  -subj "/CN=test.utimaco.com/O=Integration"

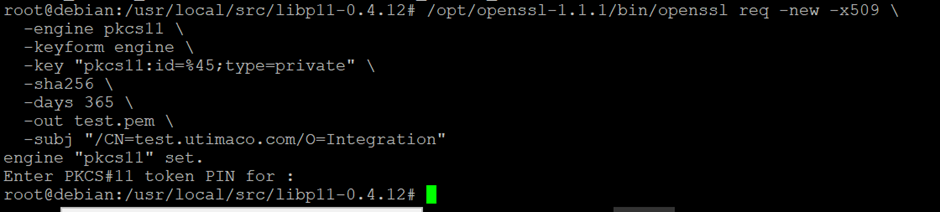

Generating self-signed certificate

After this, a certificate test.pem is generated.

Type “exit” to exit from openssl prompt.

It is recommended to use a CA signed certificate for production environment.

Convert the certificate from pem to der.

# openssl x509 \
  -in test.pem \
  -out test.der \
  -outform DER

Import the certificate to Utimaco HSM.

# pkcs11-tool \
  --module /etc/utimaco/lib/libcs_pkcs11_R3.so \
  -l \
  --slot 0 \
  --write-object test.der \
  --type cert \
  --id 45 \
  --label "GPGCertificate"

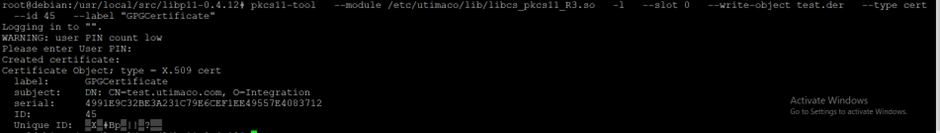

Importing certificate to Utimaco HSM

Verify that the certificate has been imported to Utimaco HSM.

# p11tool2 slot=0 LoginUser=Gnupg1234 ListObjects

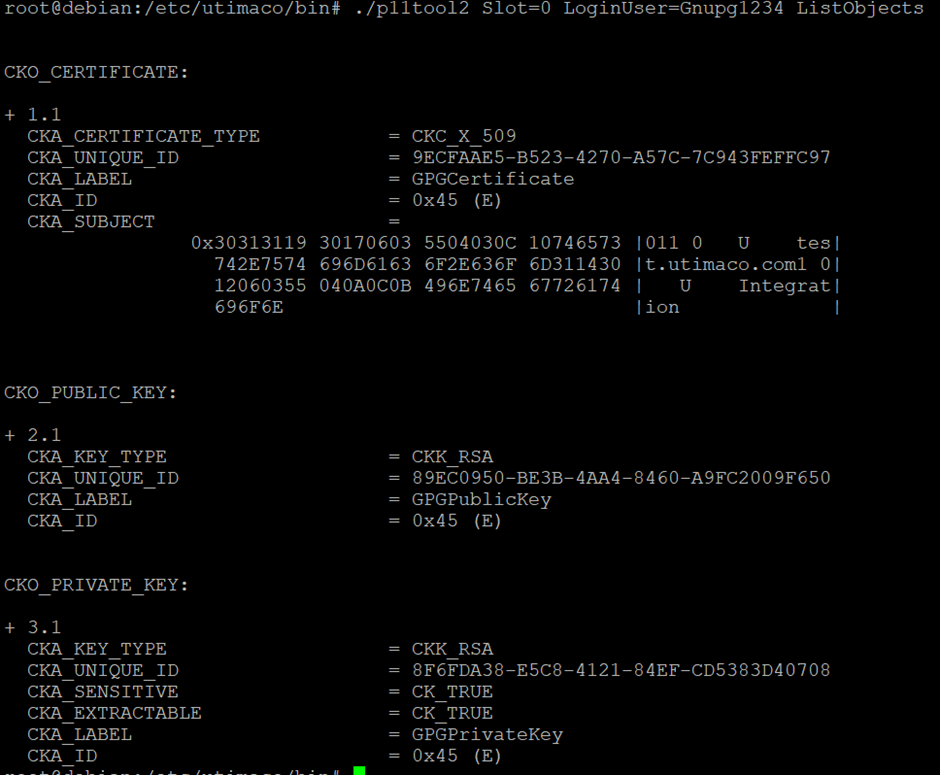

Listing keys and certificate on HSM slot
