Rotate Keys stored in the Utimaco HSM

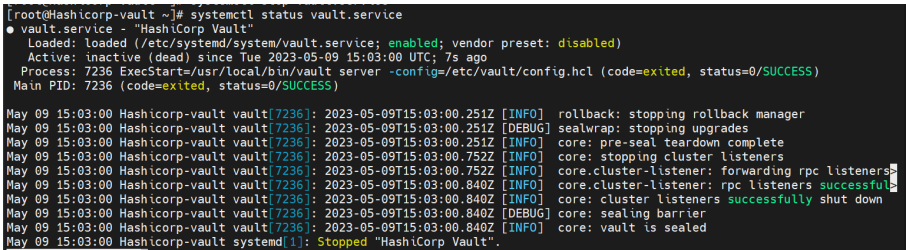

  1. Stop HashiCorp Vault service and check the status of the service.

# systemctl stop vault.service
# systemctl status vault.service


Stop Vault Service

  1. For rotating the keys, update the configuration file /etc/vault/config. hcl with a new key label and the old key label of the root key and hmac key in the seal “pkcs11” section, as shown below.

# vi /etc/vault/config.hcl
# PKCS#11 Seal, Utimaco HSM Integration
seal "pkcs11" {
lib = "/opt/utimaco/lib/libcs_pkcs11_R3.so"
slot = "<slot_no>"
pin = "<slot_PIN>"
default_key_label="hsm_demo"
key_label = "hsm_demo1"
default_hmac_key_label="demo"
hmac_key_label = "demo1"
generate_key = true
}

Do not delete the old keys from the HSM as the old keys will still be used to decrypt the old data. Here, default_key_label and default_hmac_key_label are old key labels. New keys will have the label values from key_label and hmac_key_label.

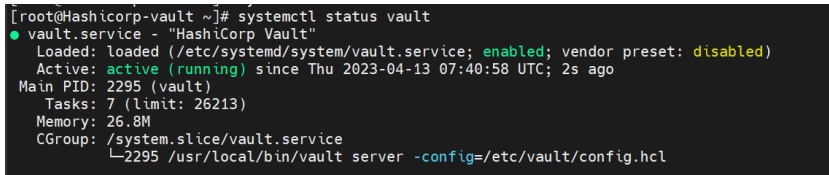

  1. Restart the Vault service.

# systemctl restart vault.service
# systemctl status vault.service

Start Vault Service

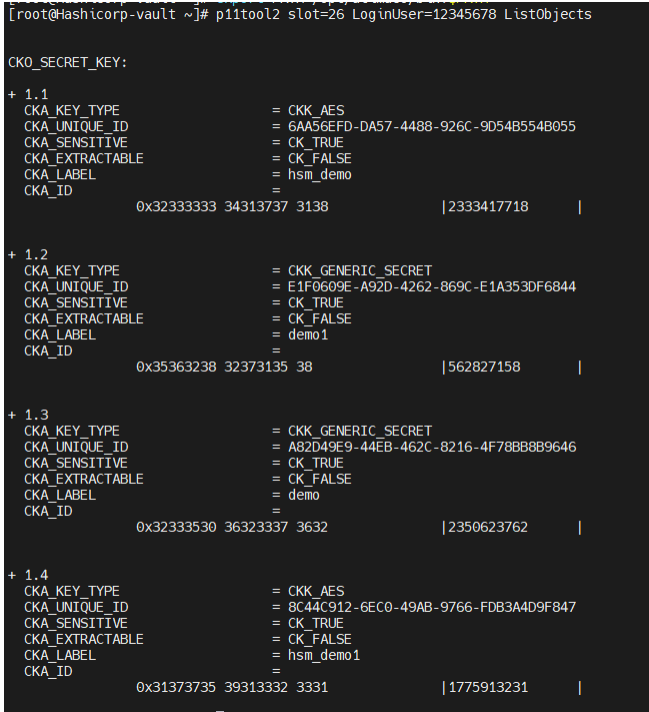

  1. Verify that the keys got generated on the HSM.

# p11tool2 slot=<slot_no.> LoginUser=<slot_PIN> ListObjects

List Keys

  1. Log in to Vault using the Initial Root Token saved earlier.

# vault login <initial_root_token_vaule>

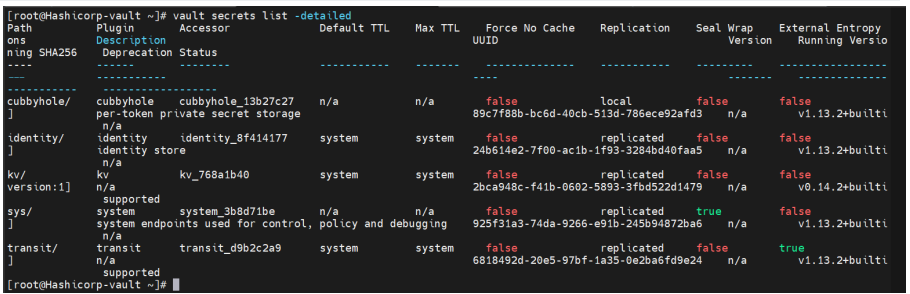

  1. Verify that you can list the secrets.

# vault secrets list -detailed

List the Secret Keys

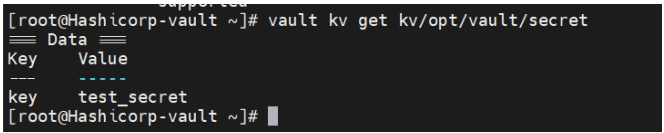

  1. Verify that you can retrieve the secret data.

# vault kv get kv/opt/vault/secret


Retrieve Secret Data
