For RSA Keys

1. Generate key file for KSK.

# dnssec-keyfromlabel -E pkcs11 -f KSK a- RSASHA256 -l

"pkcs11:token=Bind;object=ksk" example.net

Where the parameters:

• -E Is for engine.

• -l specifies the key label in pkcs11 URI format.

• -f specifies the key flag.

• -a is the algorithm.

• example.net is name of zone.

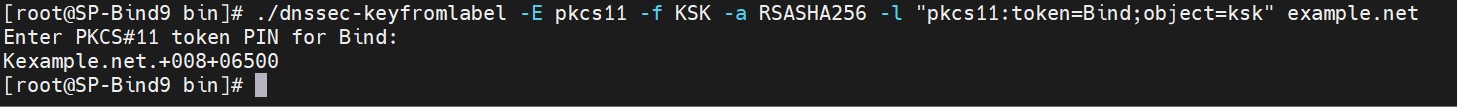

Key file generation for KSK key

2. Generate key file for ZSK.

# dnssec-keyfromlabel -E pkcs11 -a RSASHA256 -l "pkcs11:token=Bind;object=zsk" example.net

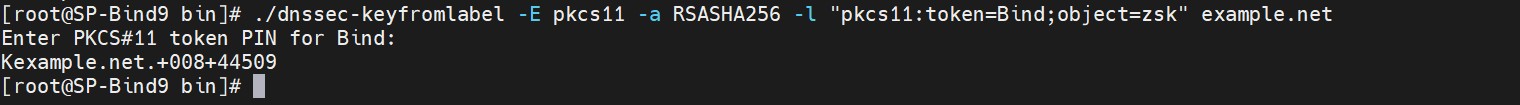

Key file generation for ZSK key

Where the parameters:

• -E Is for engine.

• -l specifies the key label in pkcs11 URI format.

• -a is the algorithm.

• example.net is name of zone.

3. Verify that you have two KSK and two ZSK key files available.

# ls -l K*

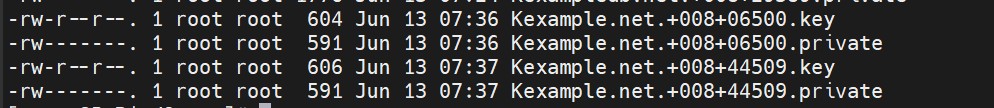

List files
