Generating KSK and ZSK with ECC Algorithm | Utimaco Integration Guides

Run the following commands to generate a zone-signing key and a key-signing key using ECC:

A note on generating ECDSA keys: there is a bug in libp11 when looking up a key, that function compares keys only on their ID, not the label. So, when looking up a key it returns the first key, rather than the matching key. The workaround for this is when creating ECDSA keys, you should specify a unique ID:

›_ Console
# ksk=$(echo "ksk" \| openssl sha1 -r \| awk '{print $1}') # echo $ksk # ./p11tool2 slot=0 LoginUser=ask PubKeyAttr=CKA_LABEL="ksk",CKA_ID=0x a01834fcaa9401cefc8eeac928de96521cbd671a PrvKeyAttr=CKA_LABEL="ksk",CKA_ID=0x a01834fcaa9401cefc8eeac928de96521cbd671a GenerateKeyPair=ECC # zsk=$(echo "zsk" \| openssl sha1 -r \| awk '{print $1}') # echo $zsk # p11tool2 slot=0 LoginUser=ask PubKeyAttr=CKA_LABEL="zsk",CKA_ID=0x67700db641c898be1b44a41d3fa68a7e0f33452b PrvKeyAttr=CKA_LABEL="zsk",CKA_ID=0x67700db641c898be1b44a41d3fa68a7e0f33452b GenerateKeyPair=ECC

›_ Console

# ksk=$(echo "ksk" | openssl sha1 -r | awk '{print $1}')

# echo $ksk

# ./p11tool2 slot=0 LoginUser=ask PubKeyAttr=CKA_LABEL="ksk",CKA_ID=0x a01834fcaa9401cefc8eeac928de96521cbd671a PrvKeyAttr=CKA_LABEL="ksk",CKA_ID=0x a01834fcaa9401cefc8eeac928de96521cbd671a GenerateKeyPair=ECC

# zsk=$(echo "zsk" | openssl sha1 -r | awk '{print $1}')

# echo $zsk

# p11tool2 slot=0 LoginUser=ask

PubKeyAttr=CKA_LABEL="zsk",CKA_ID=0x67700db641c898be1b44a41d3fa68a7e0f33452b PrvKeyAttr=CKA_LABEL="zsk",CKA_ID=0x67700db641c898be1b44a41d3fa68a7e0f33452b GenerateKeyPair=ECC

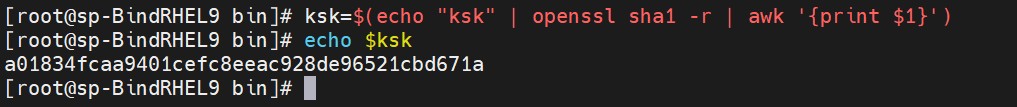

Key generation output for KSK

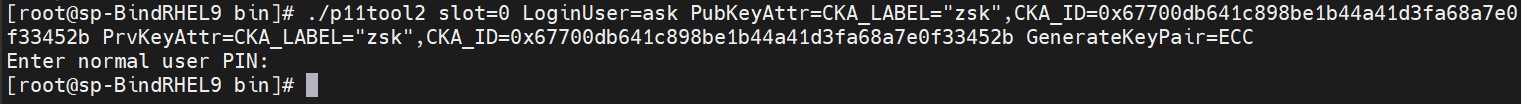

Key generation output for ZSK

Key generation output for ZSK

List the keys using p11tool2 command.

›_ Console
`# p11tool2 slot=0 LoginUser=ask ListObjects`

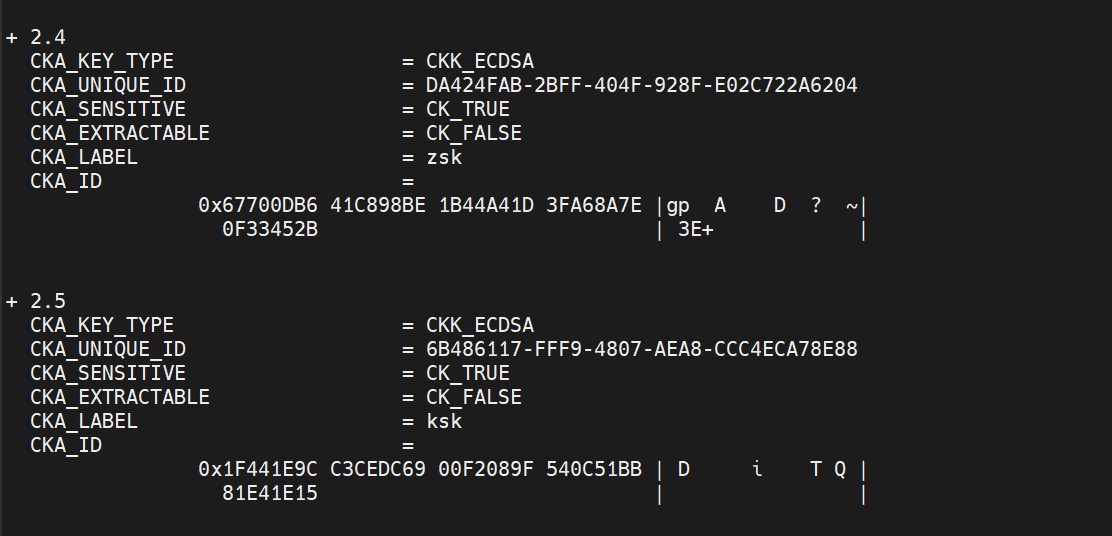

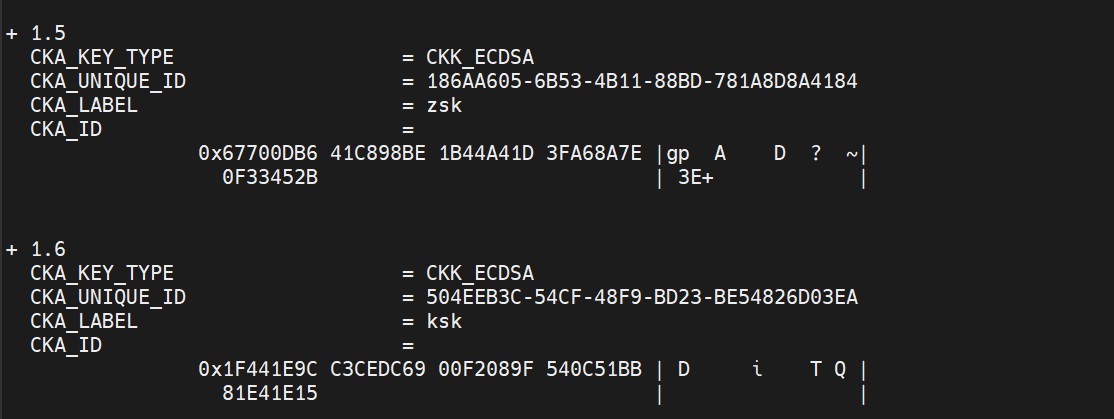

List key output

List key output

ECC keys which are generated above have default NIST-P256 curve.
