ZSK Rollover

1. Generate key file for new ZSK.

›_ Console

# dnssec-keyfromlabel -E pkcs11 -a RSASHA256 -l

"pkcs11:token=Bind;object=zsk1" example.net

Key file for new ZSK

If you want to generate key files for ECC keys, follow steps in section For ECC Keys.

  1. Add the new ZSK to the zone file example.net.

example.net


...
$include "/usr/local/bin/Kexample.net.+008+60816.key"; //ZSK old
$include "/usr/local/bin/Kexample.net.+008+33663.key"; //ZSK new
...

  1. Re-sign the zone with the KSK and old ZSK.

›_ Console

# dnssec-signzone -E pkcs11 -x -o example.net -k Kexample.net.+008+33262

/var/named/example.net Kexample.net.+008+60816

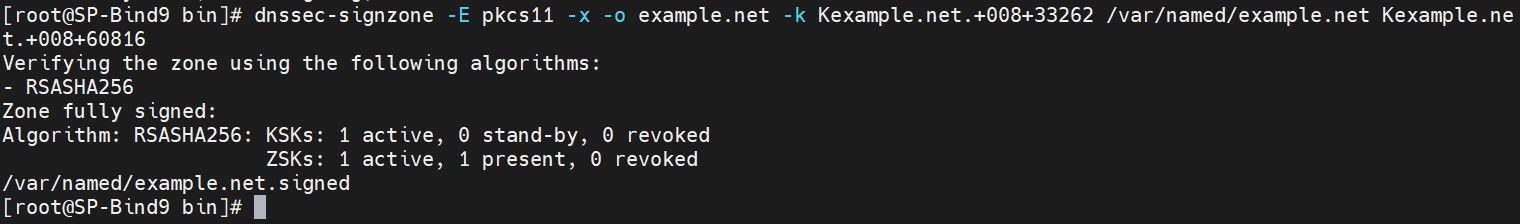

Signing zone with old ZSK

  1. Wait for the zone transfer time and TTL of the key set.

  2. Sign the zone with new ZSK.

›_ Console

# dnssec-signzone -E pkcs11 -x -o example.net -k Kexample.net.+008+33262

/var/named/example.net Kexample.net.+008+33663

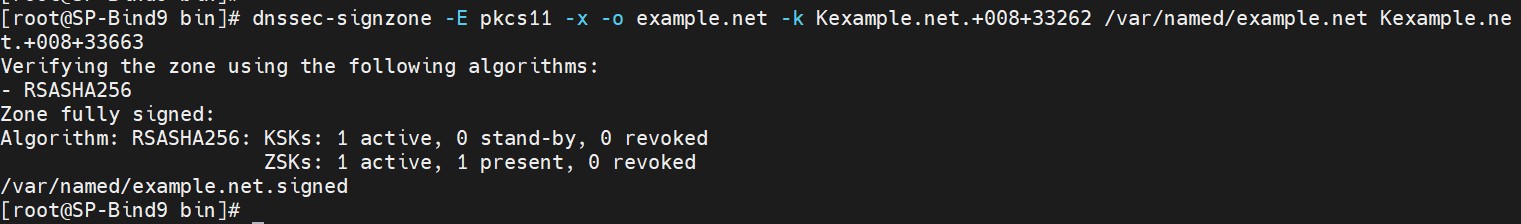

Signing zone with new ZSK

  1. Wait for the zone transfer time and maximum TTL used in the zone.

  2. Remove old ZSK from the zone file example.net

example.net


...
$include "/usr/local/bin/Kexample.net.+008+33663.key"; //ZSK new
...

  1. Re-sign the zone with the KSK. Now we have only one ZSK in example.net so it will automatically pick this new ZSK for signing zone.

›_ Console

# dnssec-signzone -E pkcs11 -x -o example.net -k Kexample.net.+008+33262 /var/named/example.net

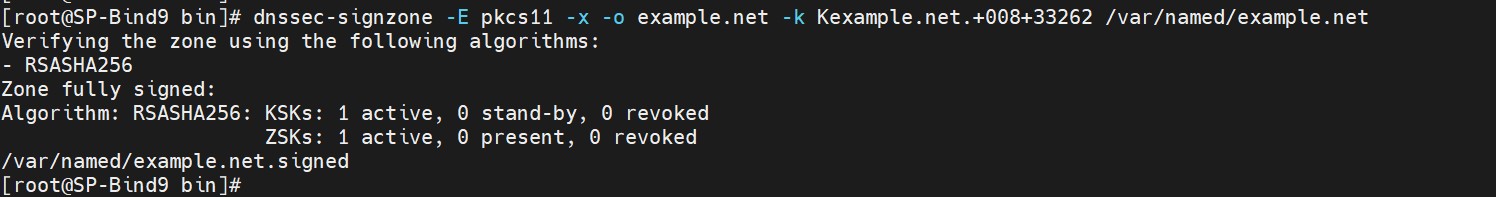

Signing zone with new ZSK

  1. Stop and start the named service using below command.

›_ Console

# /usr/local/sbin/named -f -4 -E pkcs11 -c /usr/local/etc/named.conf

Starting named service

This completes the Integration for Bind9 with Utimaco CryptoServer HSM.
