Upload CA and Client Certificate to ESKM

  1. Log in to the machine to which the CA and Client certificates have been copied.

  2. Save both certificates as .pem files.

  3. Log in to the ESKM Web UI.

  4. Click the Security tab and click the Known CA link under the Certificates & CA section.

  5. Under the Install CA Certificate Section, enter the CA name in the Certificate Name field and copy the content of the CA certificate to the Certificate textbox.

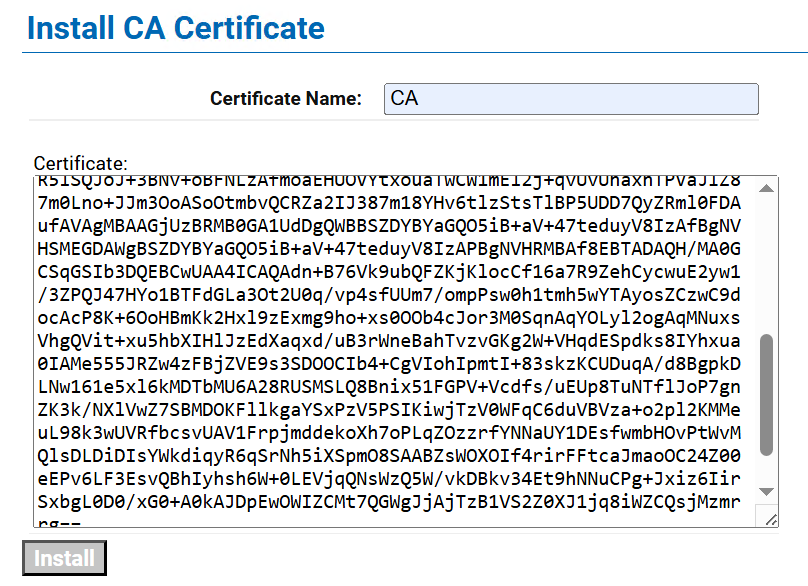

Install CA Certificate

  1. Click the Install button. The newly installed CA is listed under the CA Certificate List section.

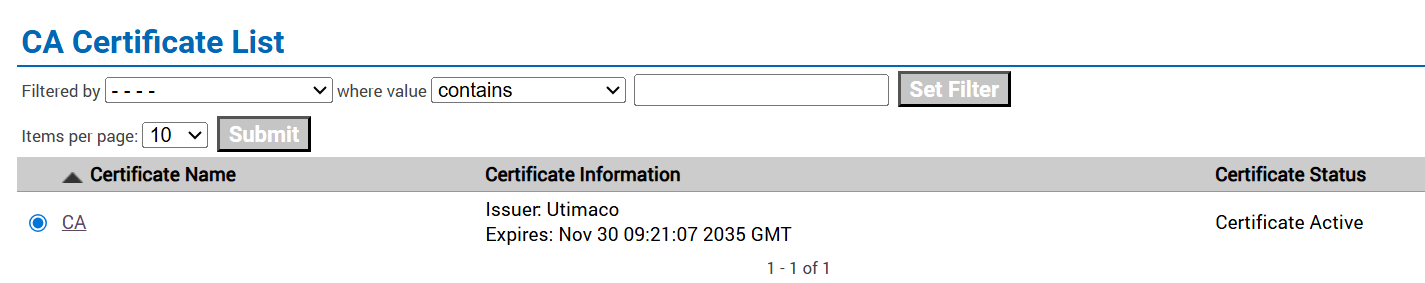

CA Certificate List

  1. Click on the Certificates link under the Certificates & CA section.

  2. Select the Upload from browser radio button under Import Certificate section.

  3. Select the client certificate by clicking on the Choose File button.

  4. Enter a name in the Certificate Name field.

  5. Enter the Private Key Password if any password was set; otherwise, leave it blank.

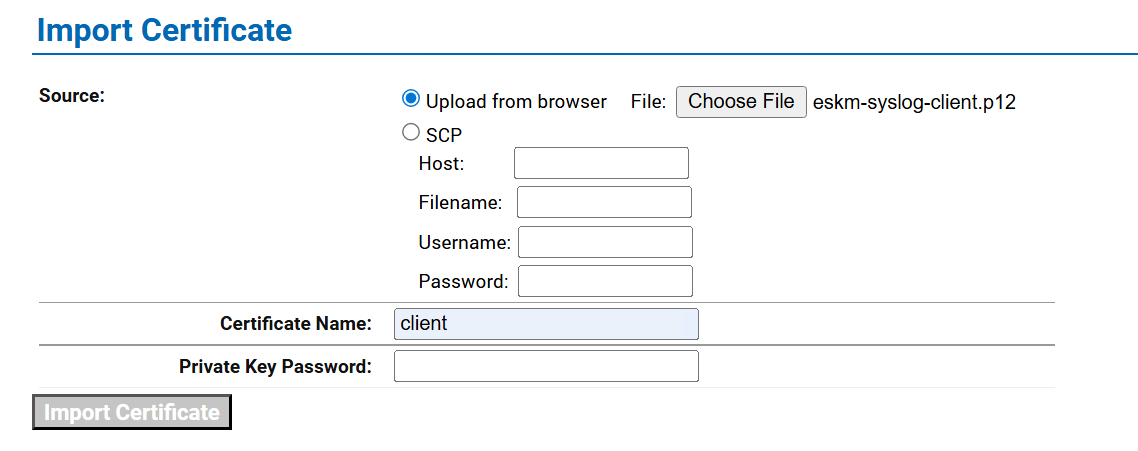

Import client certificate to ESKM


  1. Click on the Import Certificate button.

  2. The newly imported certificate is listed under the Certificate List section.

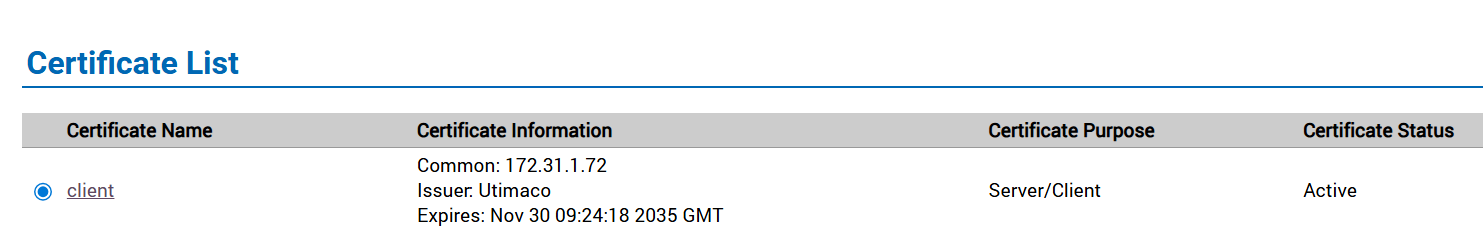

Client certificate listed in the Certificate List
