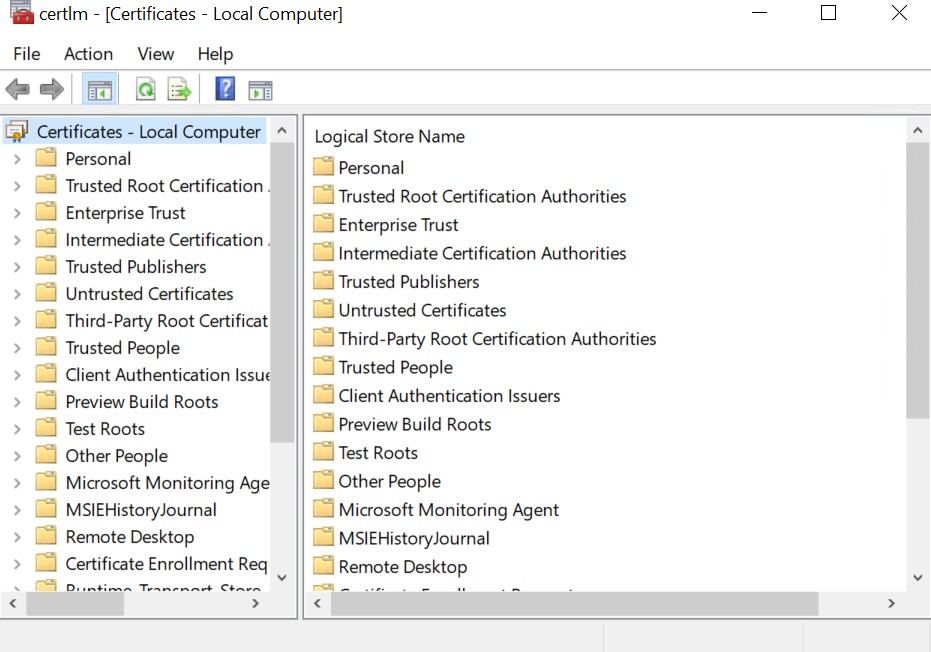

Open Run and use certlm.msc command
Figure 9: Local Computer – Certificates
-

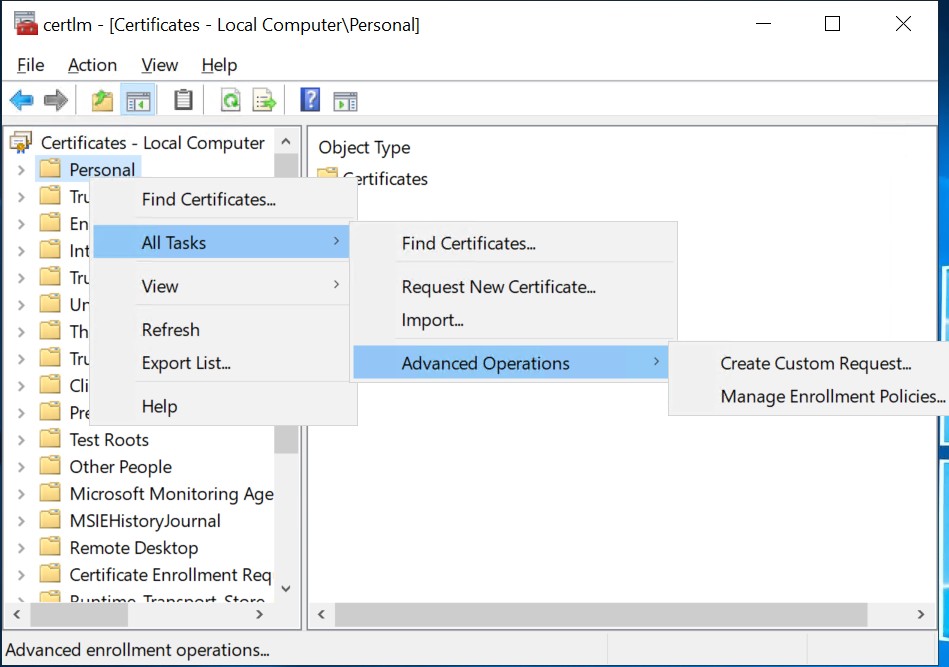

Right click on Personal → All Tasks → Advanced Operations → Create custom requests
Figure 10: Create Custom Request
-
Click next button on Before you begin wizard screen
-
Select next on Select Certificate Enrollment Policy wizard
-

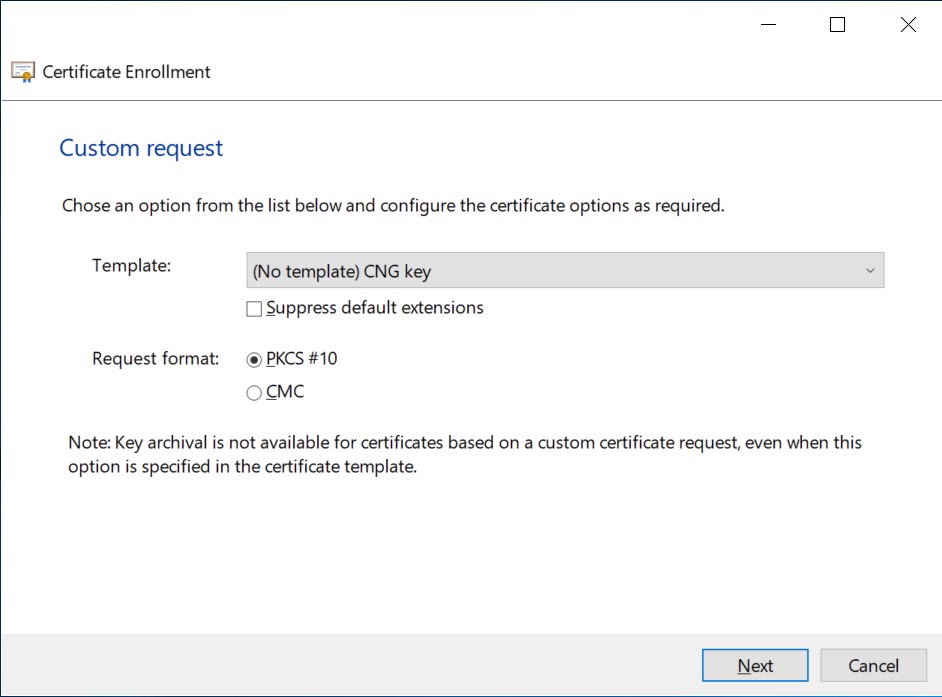

On Custom Request wizard use Template (No Template) CNG Key and Request format PKCS #10 and click next
Figure 11: Certificate Enrollment - Custom request
-

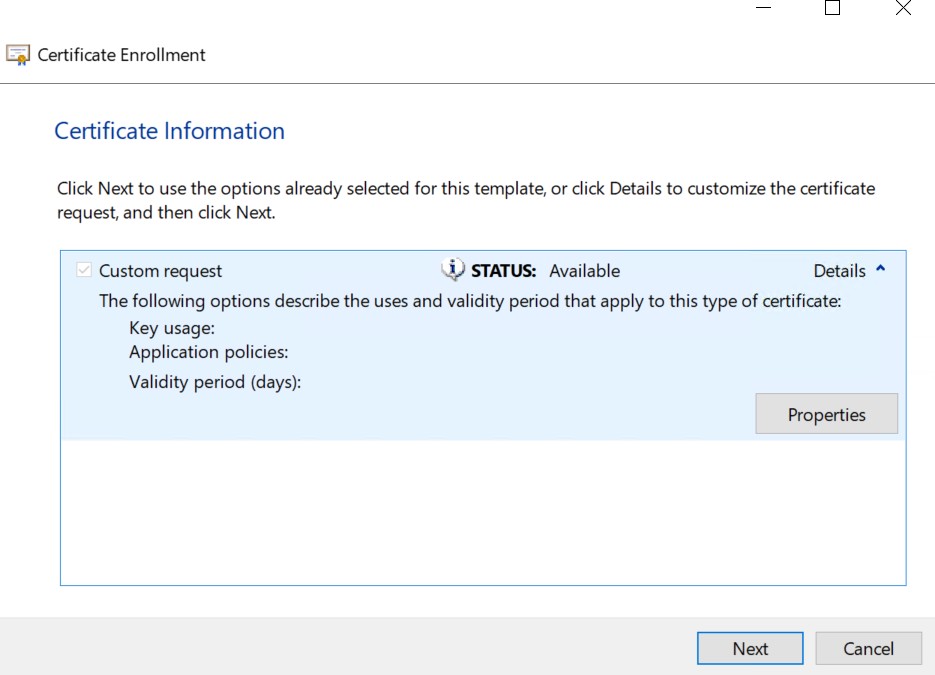

Select details and click on Properties button
Figure 12: Certificate Information
-

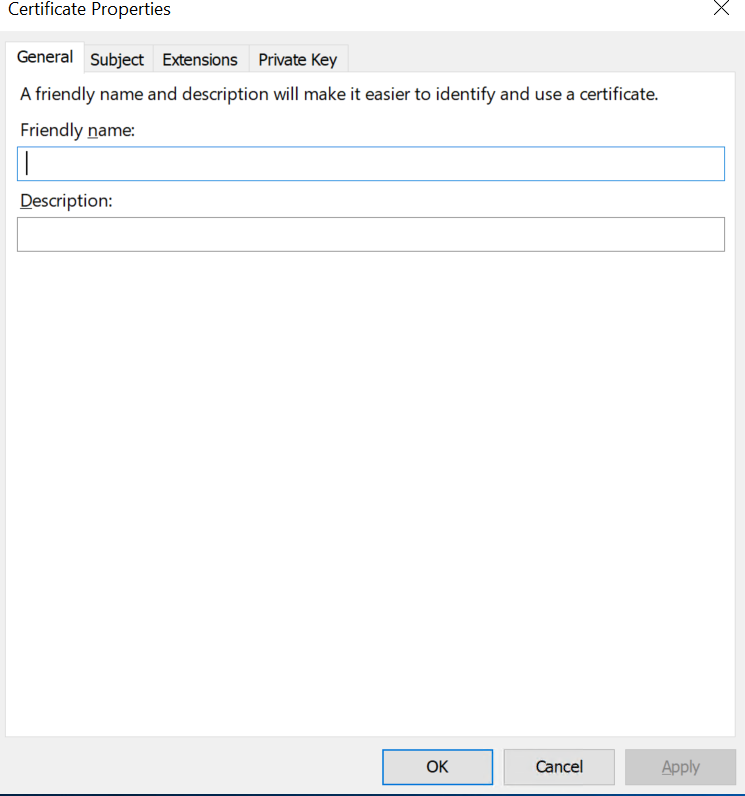

On Certificate Properties Assign Friendly name and Description
Figure 13: Certificate Information
-

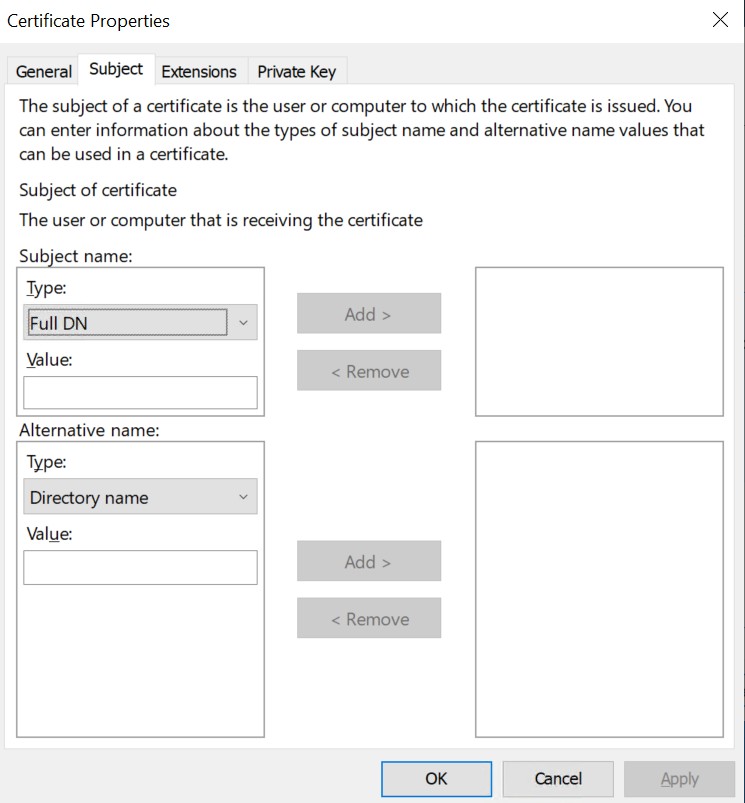

On Subject tab select Subject Name Type and enter information for Full DN, Common Name, Country, Email, Given Name, Locality, Organization, Organization Unit, State etc.,
Figure 14: Certificate Properties – Subject
-

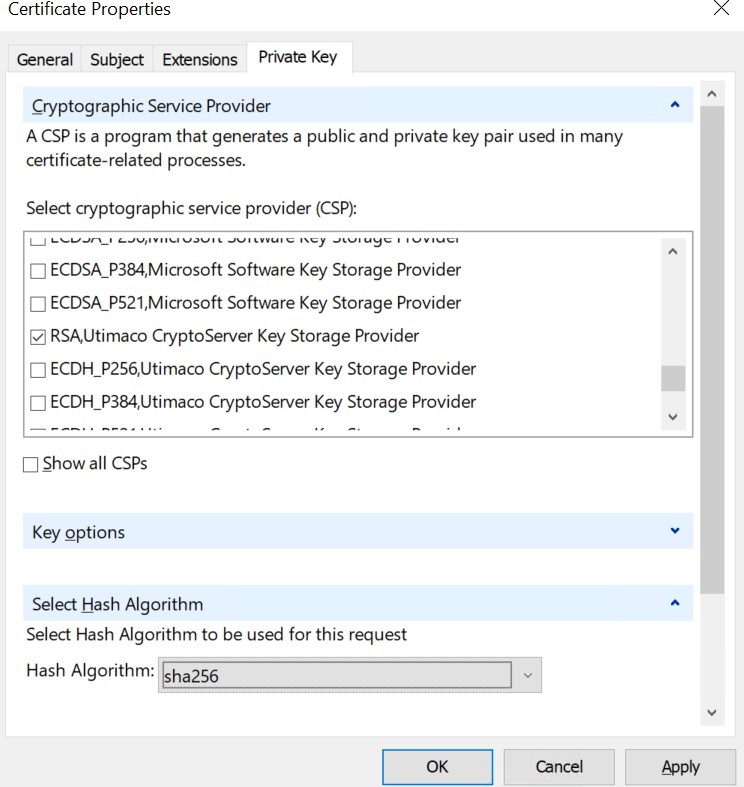

On Private Key Tab Click on Cryptographic Service Provider and unselect the RSA, Microsoft Software Key Storage Provider and Select RSA, Utimaco CryptoServer Key Storage Provider
-
On select Hash Algorithm select sha256
Figure 15: Certificate Properties - Private Key
-
Click Apply and OK
-

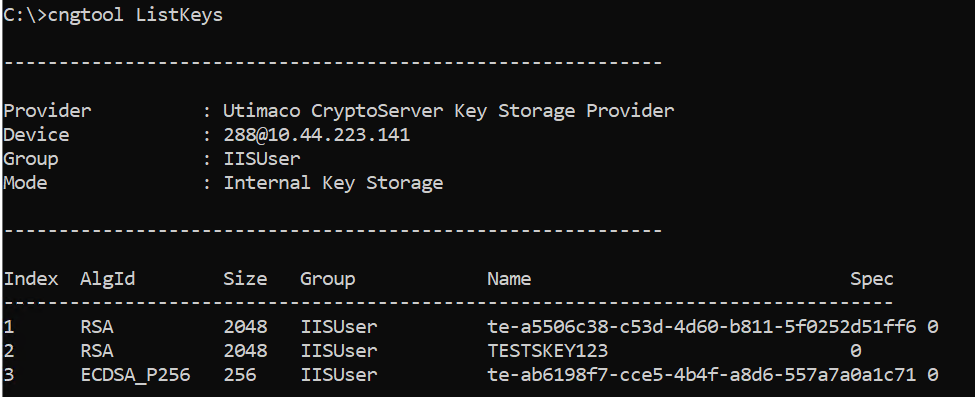

Check on HSM using below command that Certificate/Key is generated
|
›_ Console |
|
Figure 16: Key Listing
