Create HLK Signing Certificate

In order to integrate the CryptoServer Hardware Security Module with Microsoft HLK, the Utimaco CSP Utimaco CryptoServer CSP must be used to generate the certificate signing request.

  1. Create an inf file hlksigning.inf with the following attributes:

[Version]

Signature="$Windows NT$"

[NewRequest]

Subject= "C=DE, CN=UtimacoHLKSigning,OU=System Engineering HSM, O=Utimaco IS GmbH,L=Aachen,S=NRW"

KeySpec=1 KeyLength=2048 Exportable=FALSE MachineKeySet=FALSE KeyContainer=HLK1

ProviderName="Utimaco CryptoServer CSP" ProviderType=1

KeyUsage=0x04

  1. Generate a certificate request using the created inf. Make sure to use the 32 bit certreq utility. A success message is displayed after this command has been executed.

›_ Console

C:\>certreq -new hlksigning.inf hlksigning.req CertReq: Request Created

  1. Take the generated certificate request to a Certificate Authority and get it signed to obtain a signed certificate.

  2. Now we have to import this obtained certificate in the users personal certificate store. As this setup is 32 bit, ensure to use the 32 bit Microsoft Certificate Manager Console.

›_ Console

C:\>certmgr.msc

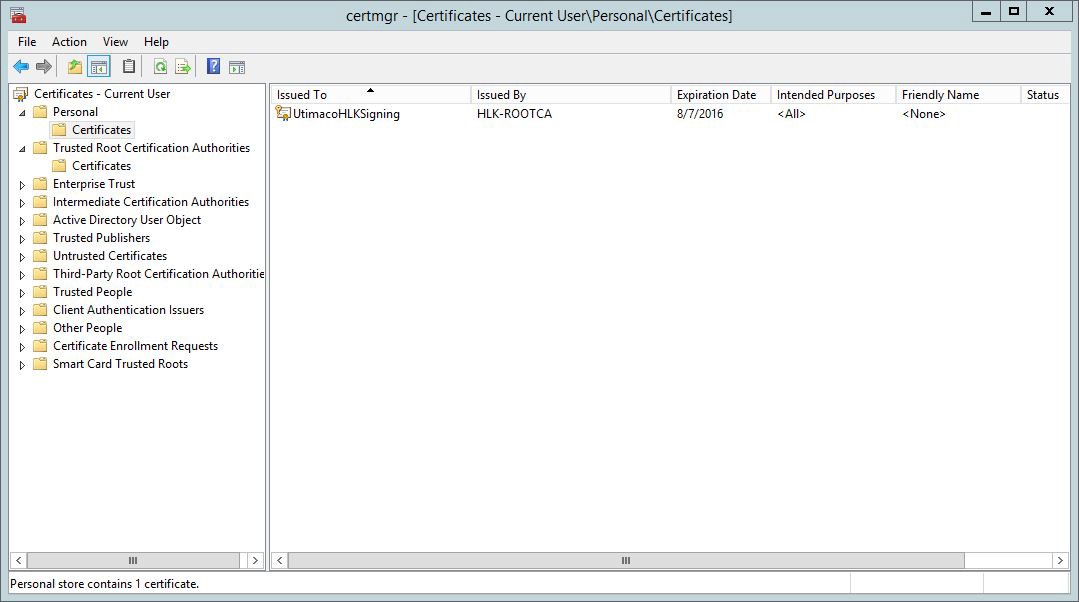

  1. Right-click on Personal > All Task > Import.. and follow the instructions to import the signed certificate. Verify the certificate is successfully imported.


Microsoft Certificate Manager Console

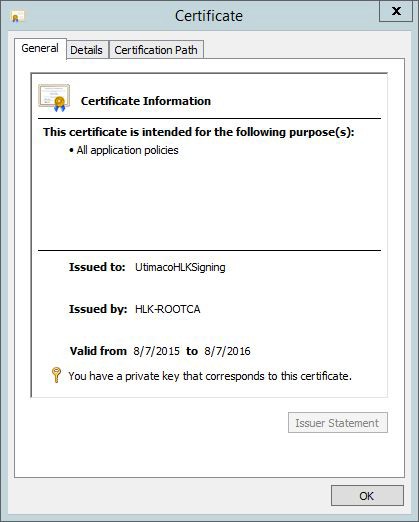

  1. Double click the certificate and confirm that there is a private key mapped with this certificate. Check the message at the bottom.


Certificate Information

  1. In case the private key is not mapped correctly, repair the certificate using the certutil repairstoreutility.

  • Open the certificate.

  • Browse to the details tab.

  • Select the serial number field.

  • Copy the serial number or thumb print.

  • Execute the certutil -repairstore -user My SerialNumber or ThumbPrint command to map the private key on the HSM with the certificate.

›_ Console

C:\>certutil -repairstore my <serial number>

  1. After the repairstore command has been successfully executed, refresh the certificate manager snap in, open the certificate and confirm the message at the bottom is displayed.
