Enabling Encryption on a New Volume

  1. Create a new SVM (Storage Virtual Machine).

>_Cluster

Cluster1::> vserver create -vserver svm1

  1. Create a new volume and verify whether encryption is enabled on the volume. If the new volume is in an NAE aggregate, by default, the volume will be an NAE volume.

>_Cluster

Cluster1::> volume create -vserver SVM_name -volume volume_name - aggregate aggregate_name

Example

Cluster1::> volume create -vserver svm1 -volume vol0 -aggregate aggr1

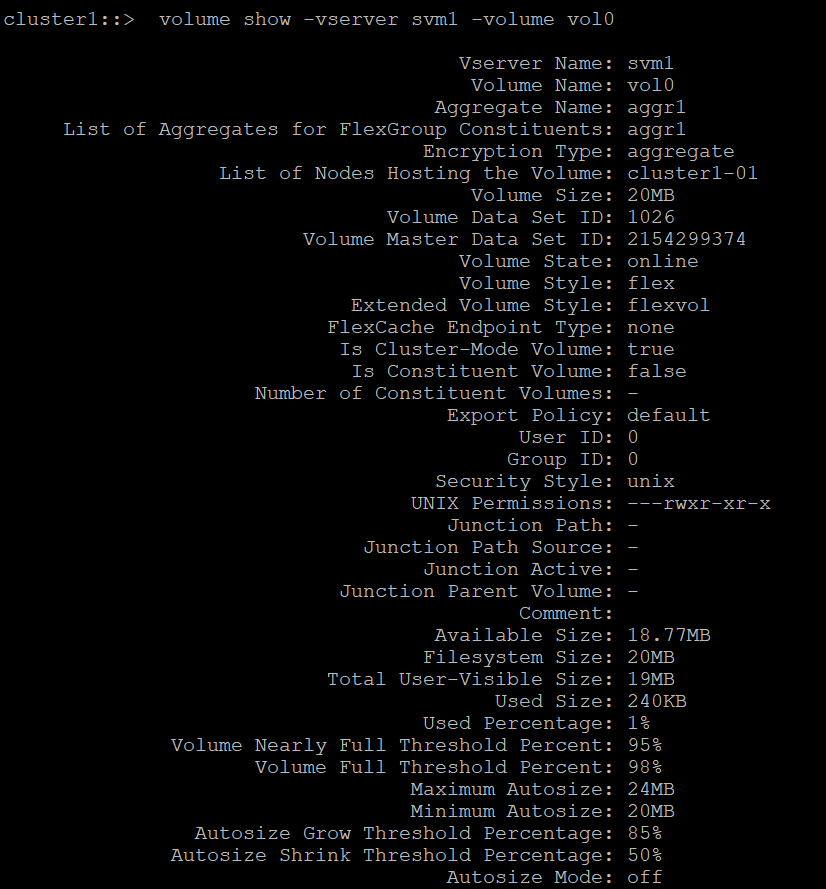

  1. View the newly created NAE volume.

>_Cluster

Cluster1::> volume show -vserver svm1 -volume vol0

Volume show output

  1. Create an NVE volume.

>_Cluster

Cluster1::> volume create -vserver SVM_name -volume volume_name - aggregate aggregate_name -encrypt true

Example:

Cluster1::> volume create -vserver svm1 -volume vol1 -aggregate aggr1 - encrypt true

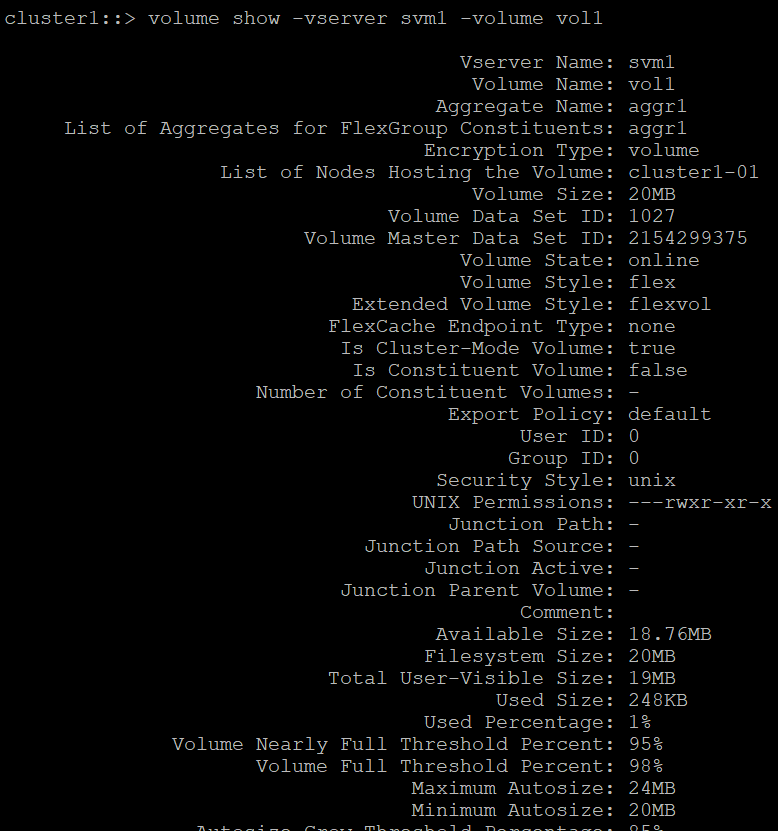

  1. View the newly created NVE Volume.

>_Cluster

Cluster1::> volume show -vserver svm1 -volume vol1

Volume show output

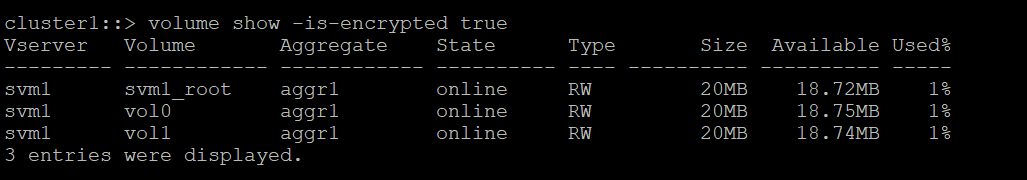

  1. Verify that volumes are enabled for encryption.

>_Cluster

Cluster1::> volume show -is-encrypted true
Verifying encrypted volumes.

Verifying encrypted volumes
