KEK Rewrap Compatibility

In OpenStack Barbican Flamingo, the PKCS#11 unwrap_key() interface requires an explicit key wrap mechanism parameter, while the rewrap_pkek utility still uses an older call signature. Without alignment, PKEK rewrapping fails. A small compatibility fix is required to pass the configured key wrapping mechanism mechanism to unwrap_key().

The compatibility fix is performed with the following steps:

Locate the pkcs11_kek_rewrap.py script (default location is /opt/stack/barbican/barbican/cmd/pkcs11_kek_rewrap.py).

Find the original code.

`pkcs11_kek_rewrap.py`
`current_kek = self.pkcs11.unwrap_key(kek_mkek, iv, wrapped_key, session)`

Update the code.

`pkcs11_kek_rewrap.py`
`current_kek = self.pkcs11.unwrap_key(self.pkcs11.key_wrap_mechanism, kek_mkek, iv, wrapped_key, session)`

Save the changes.

Perform the key rotation using the following steps:

Create a new MKEK using the barbican-manage hsm gen_mkek command.

`›_ Console`
`# sudo -u stack -i barbican-manage hsm gen_mkek --library-path '/opt/utimaco/lib/libcs_pkcs11_R3.so' --passphrase <CryptoUser_PIN>` `--slot-id <slot_id> --label 'mkek_utimaco_rewrap' --length 32`

Rewrap MKEK generated

Create a new HMAC using the barbican-manage hsm gen_hmac command.

`›_ Console`
`# sudo -u stack -i barbican-manage hsm gen_mkek --library-path '/opt/utimaco/lib/libcs_pkcs11_R3.so' --passphrase <CryptoUser_PIN>` `--slot-id <slot_id> --label 'hmac_utimaco_rewrap' --length 32`

Rewrap HMAC generated

Verify that the keys are generated on the Utimaco HSM using the p11tool2 ListObjects command.

`›_ Console`
`# ./p11tool2 slot=<slot_id> LoginUser=<CryptoUser_PIN> ListObjects`

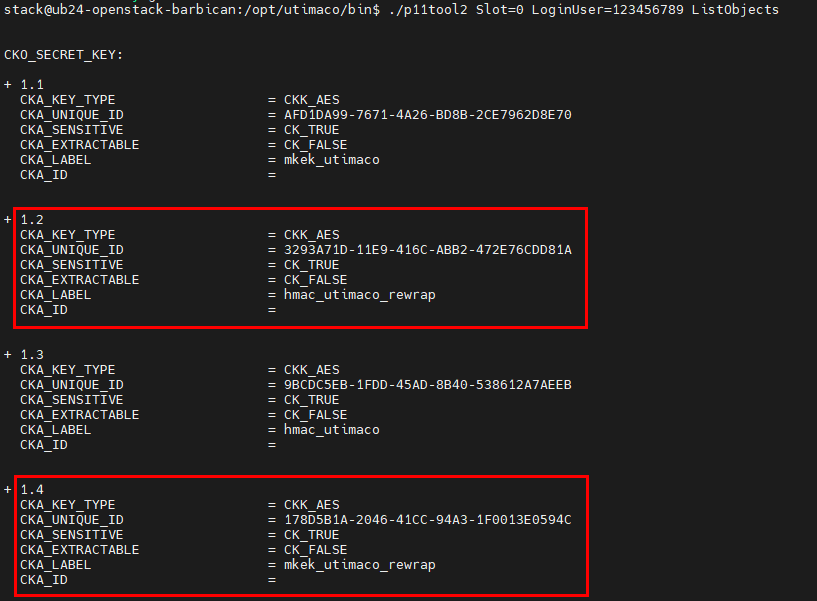

Listing rewrap keys with p11tool2

Edit the barbican.conf file located in /etc/barbican using your preferred text editor and change the mkek_label and hmac_label parameter values to the labels used when creating the new MKEK and HMAC.

`barbican.conf`
`# Master KEK and HMAC key labels (as stored in the HSM) (string value)` `mkek_label = mkek_utimaco_rewrap` `hmac_label = hmac_utimaco_rewrap`

Restart OpenStack Barbican service.

`›_ Console`
`# sudo systemctl restart devstack@barbican-svc.service`

Optional: Run the rewrap_pkek command with --dry-run option to display the changes that will be made.

`›_ Console`
`# sudo -u stack -i barbican-manage hsm rewrap_pkek --dry-run`

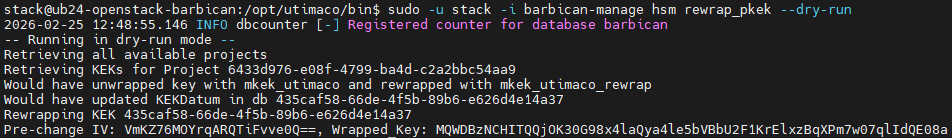

Rewrapping PKEK (dry run)

Run the rewrap_pkek command to rewrap PKEK with the new MKEK.

`›_ Console`
`# sudo -u stack -i barbican-manage hsm rewrap_pkek`

Rewrapping PKEK

You can verify the rewrap operation logging in the PKCS#11 log file cs_pkcs11_R3.log.

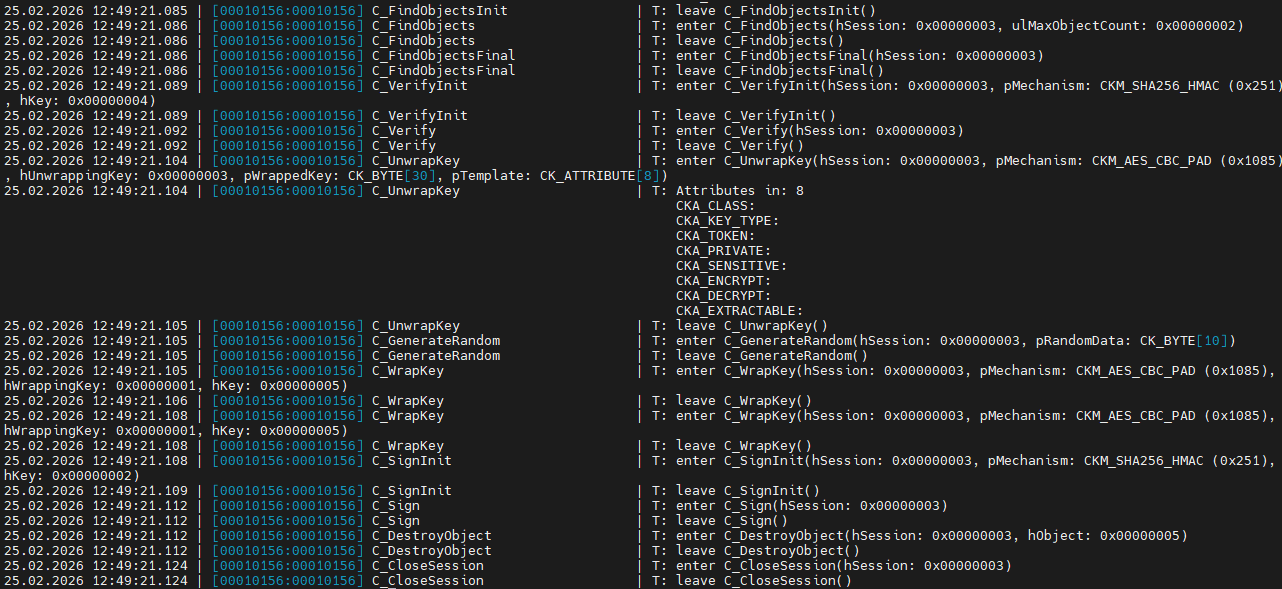

PKEK rewrapping in PKCS#11 logs

Verify that you can retrieve the payloads of the secrets generated earlier.

`›_ Console`
`# openstack secret get <secret_href> --payload`

Retrieving secret value after PKEK rewrap
