Create Deployment

This step defines the OpenShift Deployment for deploying NGINX pods integrated with the Utimaco SecurityServer HSM.

The deployment uses a two-container structure:

• An Init Container (utimaco-init) to copy the required Utimaco PKCS#11 libraries and tools into a shared volume.

• The Main Application Container (nginx-app) which runs NGINX configured to use the HSM for SSL/TLS operations via the PKCS#11 interface.

The deployment also mounts the previously created ConfigMaps (Utimaco and NGINX) and the Secret (generated by the Key Generation Job), enabling full integration between OpenShift workloads and the HSM.

1. Create a file named deploy.yaml in the path /home/admin/hsm-build/.

2. Paste the contents provided below and save the file.

   YAML

   apiVersion: apps/v1
   kind: Deployment
   metadata:
     name: securityserver
   spec:
     replicas: 2
     selector:
       matchLabels:
         app: my-app
     template:
       metadata:
         labels:
           app: my-app
       spec:
         volumes:
           # Shared library between initContainers and main app
           - name: pkcs11-shared-libs
             emptyDir: {}

           # Utimaco + OpenSSL configuration
           - name: utimaco-cfg-volume
             configMap:
               name: utimaco-config

           # NGINX configuration
           - name: nginx-cfg-volume
             configMap:
               name: nginx-config

           # Shared Secret created by Job (contains SSL.cert)
           - name: cert-volume
             secret:
               secretName: ssl-cert

           - name: utimaco-logs
             emptyDir: {}

         # --- INIT CONTAINERS ---
         initContainers:
           - name: utimaco-init
             image: <docker_username>/utimaco-sidecar:1
             command: ["/bin/sh", "-c"]
             args:
               - |
                 echo "Copying Utimaco libraries and tools..."
                 mkdir -p /shared/lib /shared/bin
                 cp /opt/utimaco/lib/libcs_pkcs11_R3.so /shared/lib/
                 cp /opt/utimaco/bin/* /shared/bin/
                 echo "Libraries and tools are ready."
             volumeMounts:
               - name: pkcs11-shared-libs
                 mountPath: /shared

         # --- MAIN CONTAINER ---
         containers:
           - name: nginx-app
             image: <docker_username>/nginx:1
             ports:
               - containerPort: 443
             env:
               - name: PKCS11_CONFIG
                 value: /etc/utimaco/cs_pkcs11_R3.cfg
               - name: PKCS11_MODULE
                 value: /opt/utimaco/lib/libcs_pkcs11_R3.so
               - name: PATH
                 value: "/opt/utimaco/bin:/usr/local/sbin:/usr/local/bin:/usr/sbin:/usr/bin:/sbin:/bin"
             volumeMounts:
               # Shared Utimaco library from init container
               - name: pkcs11-shared-libs
                 mountPath: /opt/utimaco/lib
                 subPath: lib
                 readOnly: true
               - name: pkcs11-shared-libs
                 mountPath: /opt/utimaco/bin
                 subPath: bin
                 readOnly: true

               # Mount OpenSSL configuration from ConfigMap
               - name: utimaco-cfg-volume
                 mountPath: /etc/pki/tls/openssl.cnf
                 subPath: openssl.cnf

               # Mount Utimaco PKCS#11 config from ConfigMap
               - name: utimaco-cfg-volume
                 mountPath: /etc/utimaco/cs_pkcs11_R3.cfg
                 subPath: cs_pkcs11_R3.cfg

               # Mount NGINX configuration
               - name: nginx-cfg-volume
                 mountPath: /etc/nginx/nginx.conf
                 subPath: nginx.conf

               # Mount shared certificate (Secret from Job)
               - name: cert-volume
                 mountPath: /etc/ssl/certs
                 readOnly: true

               - name: utimaco-logs
                 mountPath: /var/log/utimaco

             lifecycle:
               preStart:
                 exec:
                   command:
                     - /bin/sh
                     - -c
                     - |
                       echo "? Waiting for SSL certificate..."
                       while [ ! -f /etc/ssl/certs/SSL.cert ] && [ ! -f /etc/ssl/certs/tls.crt ]; do
                         sleep 2
                       done
                       echo "Certificate ready. Starting NGINX."



3. Apply the deployment.

Apply Deployment

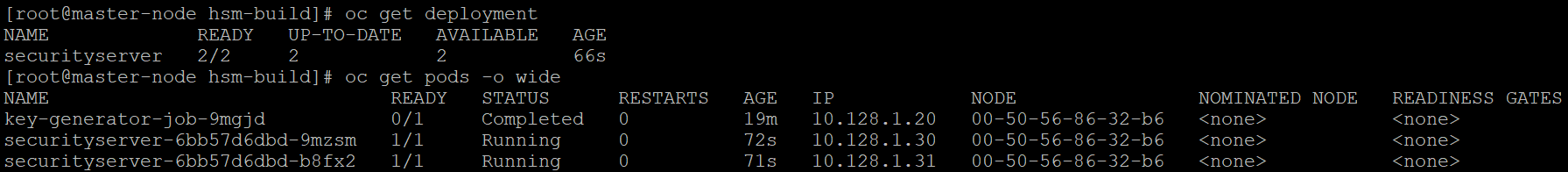

4. Verify the deployment.

Verify Deployment
