Create Key Generation Job

This step defines a Job that automatically generates an RSA key pair inside the Utimaco HSM during deployment. The key generation process is securely performed using the Utimaco PKCS#11 library, ensuring that the private key never leaves the HSM boundary. The same Job also generates a self-signed SSL certificate using the HSM key and stores it in an OpenShift Secret, which will later be mounted into the NGINX pods for SSL/TLS operations.

1. Create a file named key-generation.yaml under the directory /home/admin/hsm-build/.

2. Paste the following content into the file and save it.

   YAML

   apiVersion: batch/v1
   kind: Job
   metadata:
     name: key-generator-job
   spec:
     template:
       spec:
         serviceAccountName: key-generator-sa
         volumes:
         - name: utimaco-cfg-volume
           configMap:
             name: utimaco-config
         - name: cert-volume
           emptyDir: {}
         containers:
         - name: key-generator
           image: <docker_username>/utimaco-sidecar:1
           command: ["/bin/sh", "-c"]
           args:
           - >
             /opt/utimaco/bin/p11tool2 slot=0 LoginUser=12345678 Label="RSAKey" DeleteObject || true;
             /opt/utimaco/bin/p11tool2 slot=0 LoginUser=12345678 PubKeyAttr=CKA_LABEL="RSAKey" PrvKeyAttr=CKA_LABEL="RSAKey" GenerateKeyPair=RSA;
             openssl req -engine pkcs11 -new -x509 -days 365 -key "pkcs11:object=RSAKey;type=private" -keyform engine -out /certs/tls.crt -subj "/CN=test.utimaco.com";
             oc create secret generic ssl-cert --from-file=tls.crt=/certs/tls.crt;
             oc create secret generic ssl-cert --from-file=tls.crt=/certs/tls.crt --dry-run=client -o yaml | oc apply -f -;
           volumeMounts:
           - name: utimaco-cfg-volume
             mountPath: /etc/pki/tls/openssl.cnf
             subPath: openssl.cnf
           - name: utimaco-cfg-volume
             mountPath: /etc/utimaco/cs_pkcs11_R3.cfg
             subPath: cs_pkcs11_R3.cfg
           - name: cert-volume
             mountPath: /certs
         restartPolicy: Never
     backoffLimit: 4


3. Apply the Job.

Apply Key Generation Job

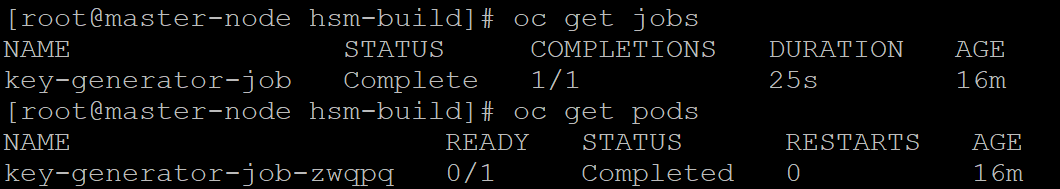

4. Verify the Job completion.

Verify Key Generation Job
