Create SO User and Initialize a Slot

This section describes how to create Security Officer (SO) and User accounts, initialize a slot, and update default credentials on the u.trust GP HSM Simulator.

Prerequisites:

  • the HSM Simulator is running and accessible (e.g., 127.0.0.1).

  • the csadm utility is available in the current directory or PATH.

  • the admin key file (e.g., ADMIN_SIM.key) is available.

Steps:

  1. Create a user assigned to the slot.

./csadm dev=3001@127.0.0.1 LogonSign=ADMIN,./ADMIN_SIM.key AddUser=USR_0000,00000022{CXI_GROUP=SLOT_0000},hmacpwd,87654321

  1. Create the SO user for slot management.

./csadm dev=3001@127.0.0.1 LogonSign=ADMIN,./ADMIN_SIM.key AddUser=SO_0000,00000200{CXI_GROUP=SLOT_0000},hmacpwd,87654321

  1. Change the default password for the SO user.

./csadm dev=3001@127.0.0.1 Logonpass=SO_0000,87654321 ChangeUser=SO_0000,Cloud123

  1. Change the default password for the user.

./csadm dev=3001@127.0.0.1 Logonpass=USR_0000,87654321 ChangeUser=USR_0000,Cloud123

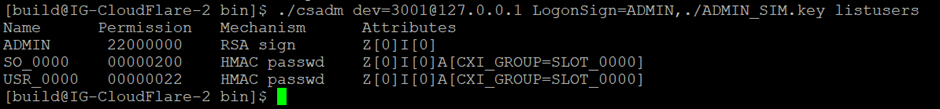

  1. List all users to confirm successful creation.

./csadm dev=3001@127.0.0.1 LogonSign=ADMIN,./ADMIN_SIM.key ListUsers

Utimaco HSM user configuration details

  • Replace 127.0.0.1 with the actual HSM IP address if using a remote device.

  • Replace passwords (87654321, Cloud123) with secure values as per policy.

  • Ensure the slot name (SLOT_0000) matches your configuration.

  • The group assignment {CXI_GROUP=SLOT_0000} links the user to the corresponding slot.

The SO is responsible for slot initialization and user management, while the User account is used for cryptographic operations via PKCS#11 (e.g., GoKeyless integration).
