Configuration on ESKM

1. Log in to ESKM.

2. Click the Device tab and click the Log Configuration link under the Logs & Statistics section.

3. Click the Edit button under the Syslog Settings table.

4. Select the checkboxes under the Enable Syslog column for the logs that need to be displayed in Elasticsearch.

5. Enter the machine IP where Elasticsearch and Kibana are installed under the Syslog Server #1 IP column, and enter the port number (default – 514) in the Syslog Server #1 Port column.

6. Click the Save button.

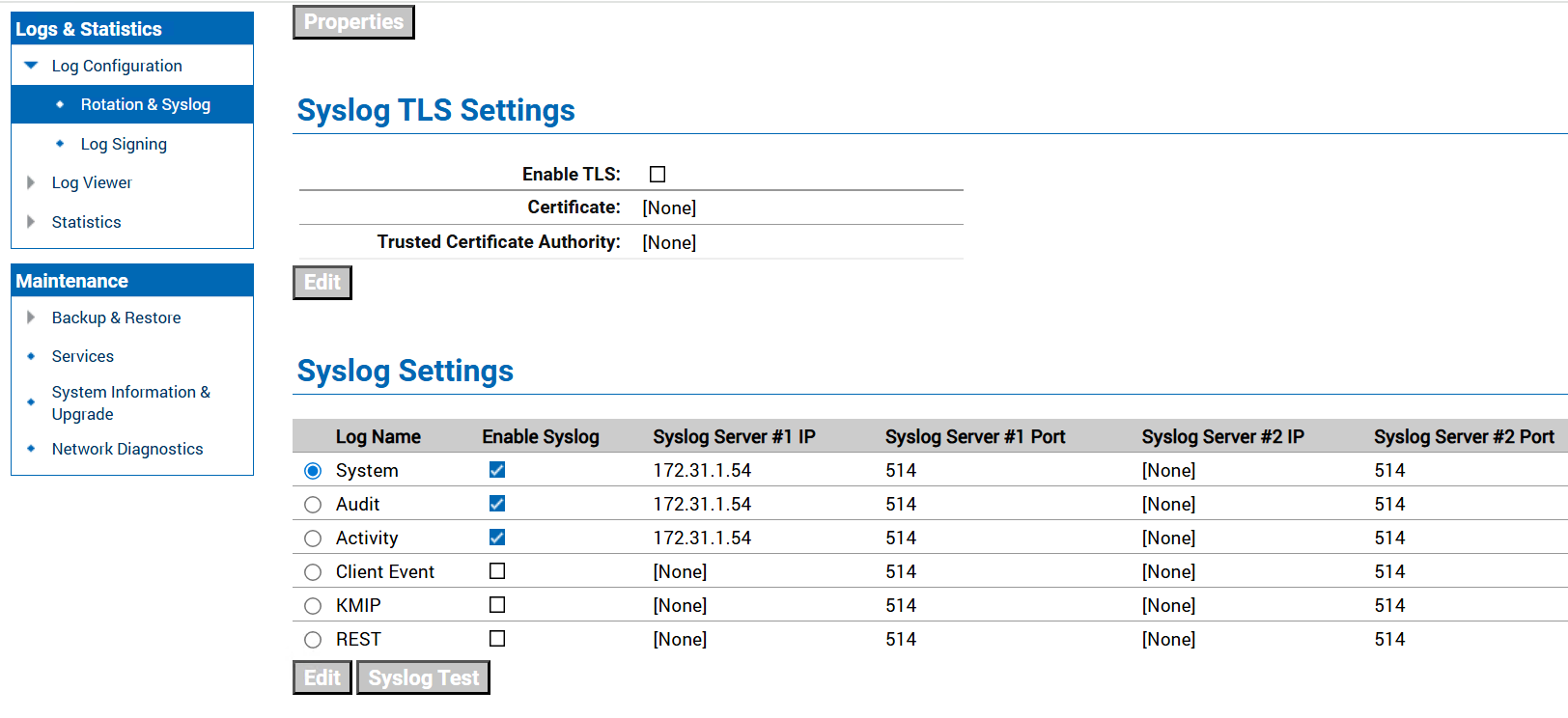

ESKM Log Configuration
