Generating the encryption Key and Certificate on Utimaco HSM

  1. Generate the RSA key using p11tool2.

›_ Console

# p11tool2 Slot=14 LoginUser=ask

PubKeyAttr=CKA_LABEL="LUKSPublicKey",CKA_ID=0x45

PrvKeyAttr=CKA_LABEL="LUKSPrivateKey",CKA_ID=0x45 GenerateKeyPair=RSA

Key generation output

  1. Verify that the keys are generated onto the HSM using following command.

›_ Console

# p11tool2 slot=<no> LoginUser=ask ListObjects

Example

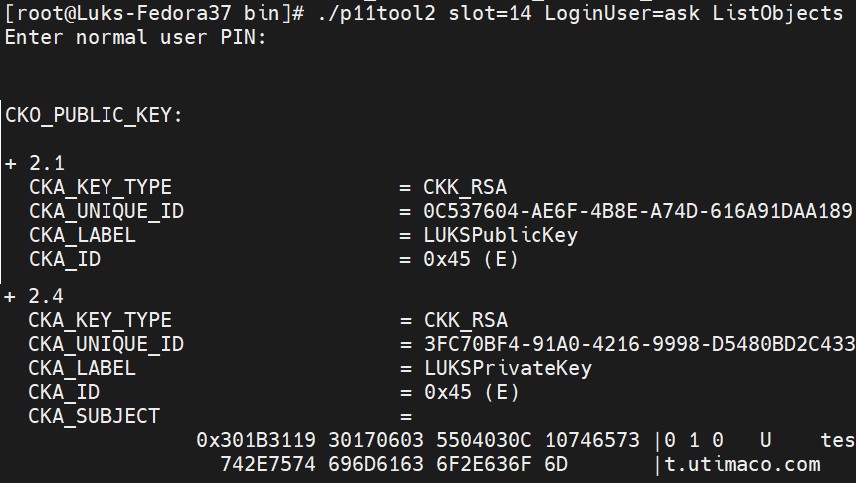

Key list using p11tool2

  1. Generate a self-signed certificate.

›_ Console

# openssl req -x509 -engine pkcs11 -keyform engine -new -key

"pkcs11:token=UTILUKS;object=LUKSPrivateKey" -sha256 -out lukscert.pem subj "/CN=test.utimaco.com"

Here LUKS is the token label and LUKSPrivateKey is the key on the HSM. Provide Cryptouser PIN when prompted.

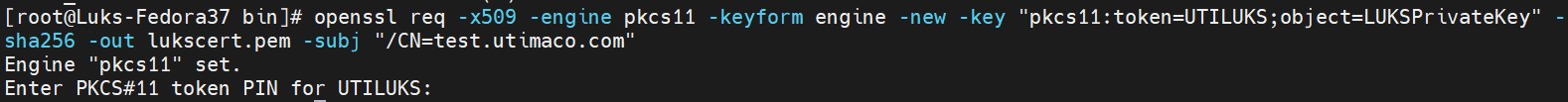

Self sign certificate generation

It is recommended to use CA signed certificate for production environment.

  1. Convert lukscert.pem to lukscert.der format.

›_ Console

# openssl x509 -outform der -in lukscert.pem -out lukscert.der

Certificate type change output

  1. Import the certificate.

›_ Console

# p11tool2 slot=14 LoginUser=ask

CertAttr=CKA_LABEL="LUKSCERT",CKA_ID=0x45

PubKeyAttr=CKA_LABEL="LUKSPrivateKey",CKA_ID=0x45

ImportCert=/opt/utimaco/bin/lukscert.der

Certificate import using p11tool2

  1. Check the certificate on HSM.

›_ Console

# p11tool2 slot=<no> LoginUser=ask ListObjects

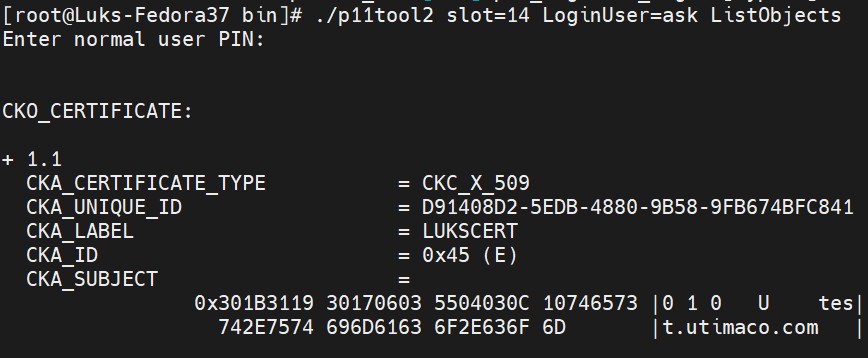

Certificate list output
