Testing with RSA Key (Linux) | Utimaco Integration Guides

Generate the RSA key using p11tool2

›_ Console

# p11tool2 slot=2 LoginUser=12345678 PubKeyAttr=CKA_LABEL="CertKey" PrvKeyAttr=CKA_LABEL="CertKey" GenerateKeyPair=RSA

Verify that the keys are generated onto the HSM using following command

›_ Console

# p11tool2 LoginUser=<cryptouser_password> ListObjects

Example:

›_ Console

[root@Openssl-RHEL9 bin]# ./p11tool2 slot=2 LoginUser=ask ListObjects Enter normal user PIN:

CKO_PUBLIC_KEY:

+ 1.1

CKA_KEY_TYPE	= CKK_RSA

CKA_UNIQUE_ID	= F9818668-8663-497F-B41F-D47A3A069970

CKA_LABEL	= CertKey

CKA_ID	=

CKO_PRIVATE_KEY:

+ 2.1

CKA_KEY_TYPE	= CKK_RSA

CKA_UNIQUE_ID	= 1DF1BDD0-A073-4743-96CB-DCFB986B9F0A

CKA_SENSITIVE	= CK_TRUE

CKA_EXTRACTABLE	= CK_FALSE

CKA_LABEL	= CertKey

CKA_ID	=

[root@Openssl-RHEL9 bin]#

Generate a certificate signing request (CSR)

›_ Console

# openssl req -engine pkcs11 -new -key "pkcs11:token=SSLCert;object=CertKey" -keyform engine -out TestRSACSR.csr

Here SSLCert is the token label and CertKey is the key on the HSM. Provide Cryptouser PIN when prompted.

Figure 4: Certificate request output

Figure 5: Content of certificate request file

Create the self-signed certificate based on the generated key

›_ Console

# # openssl req -engine pkcs11 -new -x509 -days 365 -key "pkcs11:token=SSLCert;object=CertKey" -keyform engine -out TestRSA.cert

Here SSLCert is the token label and CertKey is the key on the HSM. Provide Cryptouser PIN when prompted.

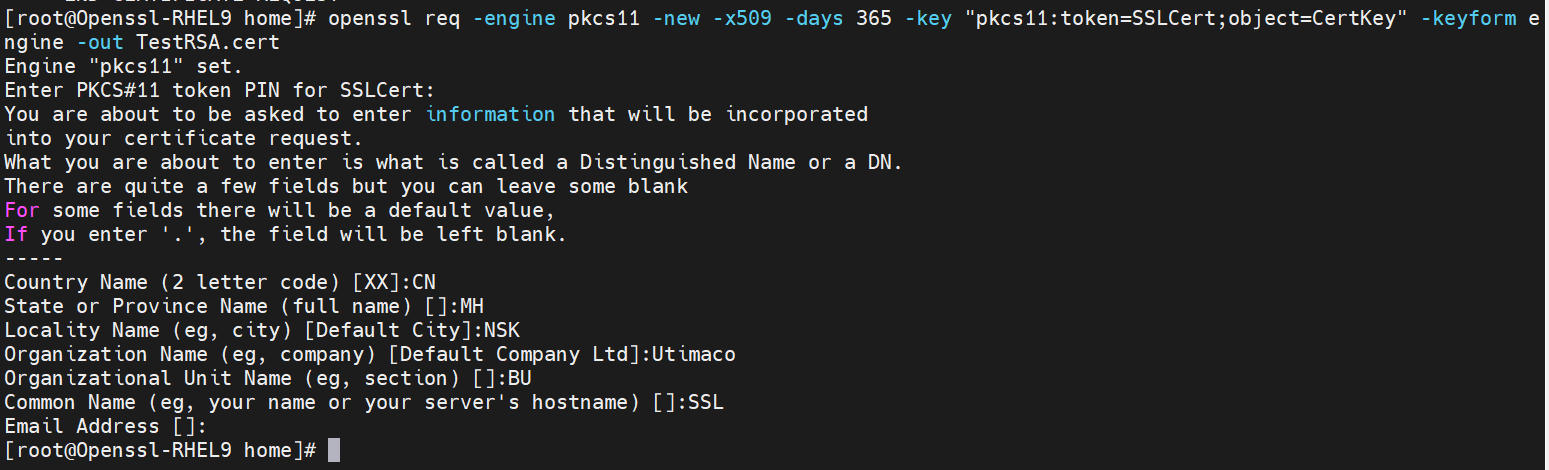

Figure 6: Self signed certificate generation output

Figure 7: Content of self-signed certificate file

Create a sample text file with any content inside it

›_ Console

# touch message.txt

Figure 8: Content of message.txt

Sign the message file

›_ Console

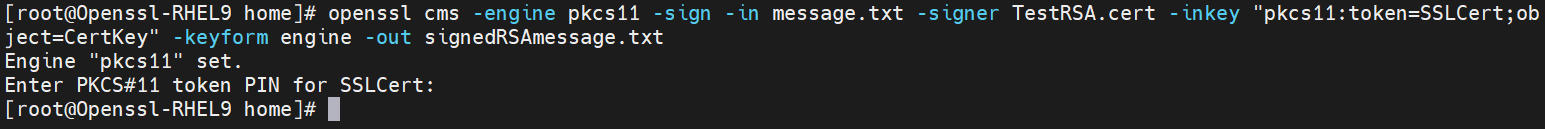

# openssl cms -engine pkcs11 -sign -in message.txt -signer TestRSA.cert - inkey "pkcs11:token=SSLCert;object=CertKey" -keyform engine -out signedRSAmessage.txt

Here SSLCert is the token label and CertKey is the key on the HSM. Provide Cryptouser PIN when prompted.

Figure 9: Content of signed message file

Encrypt the signed message file

›_ Console

# openssl cms -engine pkcs11 -encrypt -in signedRSAmessage.txt-out encryptedRSAsignedmessage.txt TestRSA.cert

Figure 10: Encrypted message file content

Decrypt the encrypted signed message file

›_ Console

# openssl cms -engine pkcs11 -decrypt -in encryptedRSAsignedmessage.txt - inkey "pkcs11:token=SSLCert;object=CertKey" -keyform engine -out decryptedRSAsignedmessage.txt

Figure 11: Decrypt Sign message

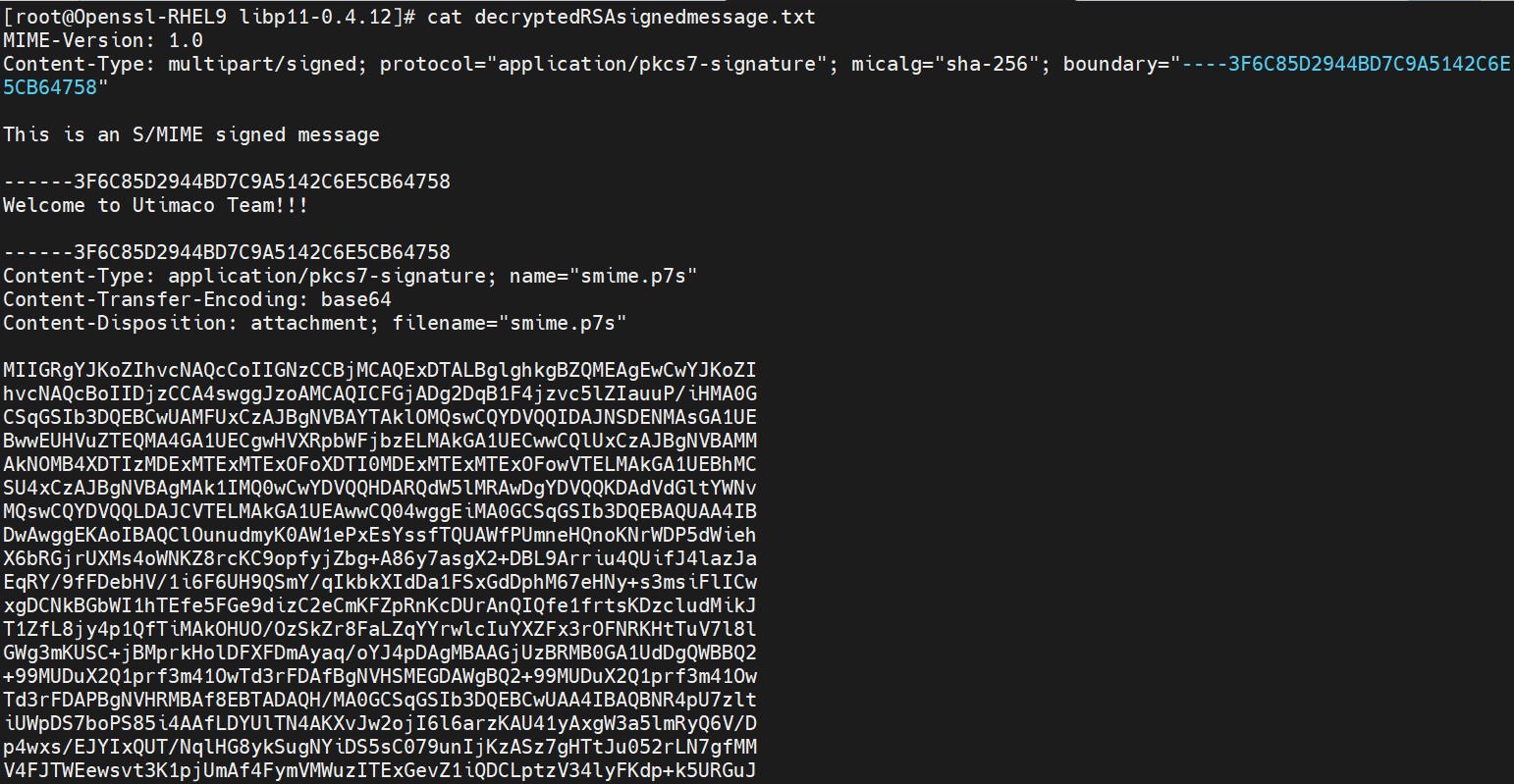

Figure 12: Content of decrypted signed message file

Here SSLCert is the token label and CertKey is the key on the HSM. Provide Cryptouser PIN when prompted.

Verify the decrypted signed message file

›_ Console

# openssl cms -engine pkcs11 -verify -in decryptedRSAsignedmessage.txt - CAfile TestRSA.cert -out originalmessage.txt TestRSA.cert

Figure 13: Output of openssl verification command

Figure 14: Output of original message content
