For OpenJDK11 with EC Key

  1. Generate an EC keypair on Utimaco HSM.

›_ Console

# keytool -genkeypair -alias weblogiceckey -keyalg EC -keystore NONE - storetype CryptoServer -storepass 12345678 -providerpath "/opt/utimaco/lib/CryptoServerJCE.jar" -providerclass CryptoServerJCE.CryptoServerProvider -J-Djava.library.path=/opt/utimaco/lib/ -J-cp - J/opt/utimaco/lib/CryptoServerJCE.jar -providername CryptoServer -v

Provide information when prompted.

Here:

  • EC is the key algorithm.

  • NONE is the keystore for HSM.

  • CryptoServer is the storetype.

  • 12345678 is the slot PIN.

  • CryptoServer is the provider name.

  • weblogiceckey is the key name that will be generated on Utimaco HSM.

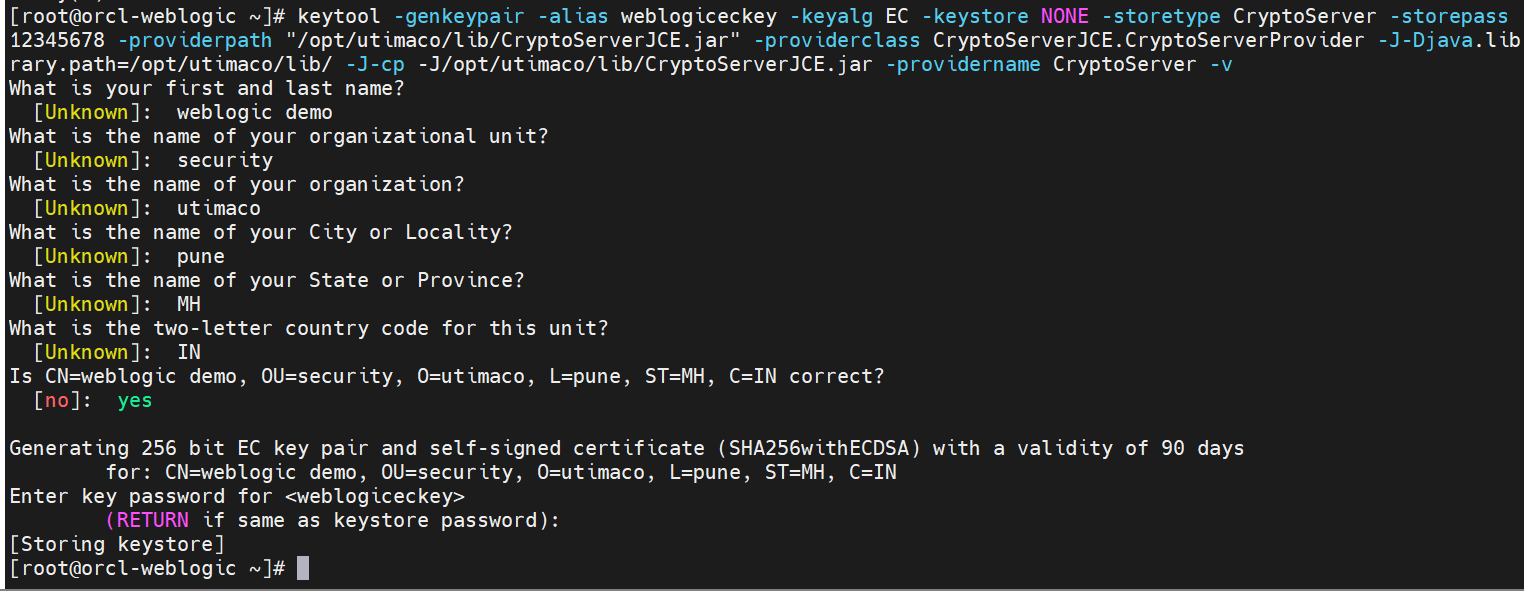

Key generation using keytool command

For OpenJDK 11 RSA key algorithm is not supported with Utimaco HSM.

2. Verify that the keys have been generated.

›_ Console

# keytool -list -keystore NONE -storetype CryptoServer -storepass 12345678 -providerpath "/opt/utimaco/lib/CryptoServerJCE.jar" - providerclass CryptoServerJCE.CryptoServerProvider -J-Djava.library.path=/opt/utimaco/lib/ -J-cp - J/opt/utimaco/lib/CryptoServerJCE.jar -providername CryptoServer -v

Here:

  • NONE is the keystore for HSM.

  • CryptoServer is the storetype.

  • 12345678 is the slot PIN.

  • CryptoServer is the provider’s name.

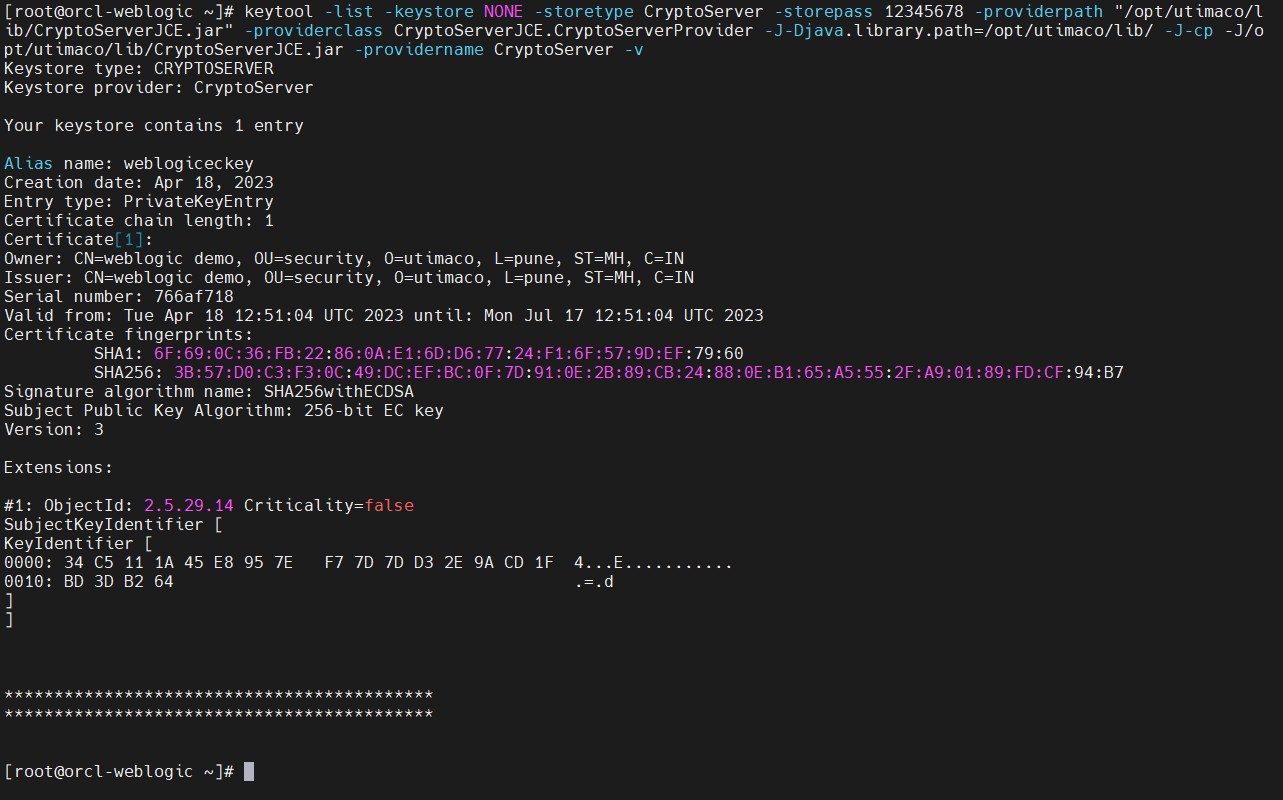

Listkeys output

  1. List the keys using cxitool.

›_ Console

# /opt/utimaco/bin/cxitool Dev=3001@127.0.0.1 Logonpass=weblogic,12345678 Group=Cryptoserver Listkeys

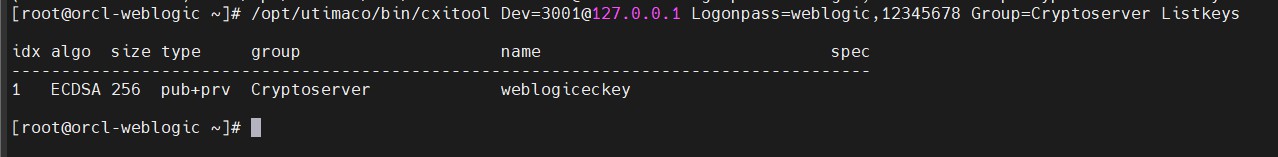

List keys output using cxitool

  1. Generate a CSR using keytool command.

›_ Console

# keytool -certreq -alias weblogiceckey -file webec.csr -keystore NONE - storetype CryptoServer -providerpath "/opt/utimaco/lib/CryptoServerJCE.jar" -providerclass CryptoServerJCE.CryptoServerProvider -J-Djava.library.path=/opt/utimaco/lib -J-cp - J/opt/utimaco/lib/CryptoServerJCE.jar/opt/utimaco/lib/CryptoServerJCE.jar

-providername CryptoServer -v

Provide the keystore password when prompted.

Here:

  • NONE is the keystore for HSM.

  • CryptoServer is the storetype.

  • CryptoServer is the provider name.

  • weblogiceckey is the key name.

  • webec.csr is the CSR file name that will be generated.

  1. Get this CSR signed by CA.

  2. Copy the signed certificate on the WebLogic server.

  3. Import the Root certificate into the HSM keystore.

›_ Console

# keytool -importcert -alias RootCA -file /home/LAbCA-Root.crt -storetype CryptoServer -keystore NONE -providerpath "/opt/utimaco/lib/CryptoServerJCE.jar" -providerclass CryptoServerJCE.CryptoServerProvider -J-Djava.library.path=/opt/utimaco/lib -J-cp - J/opt/utimaco/lib/CryptoServerJCE.jar -providername CryptoServer - storepass 12345678

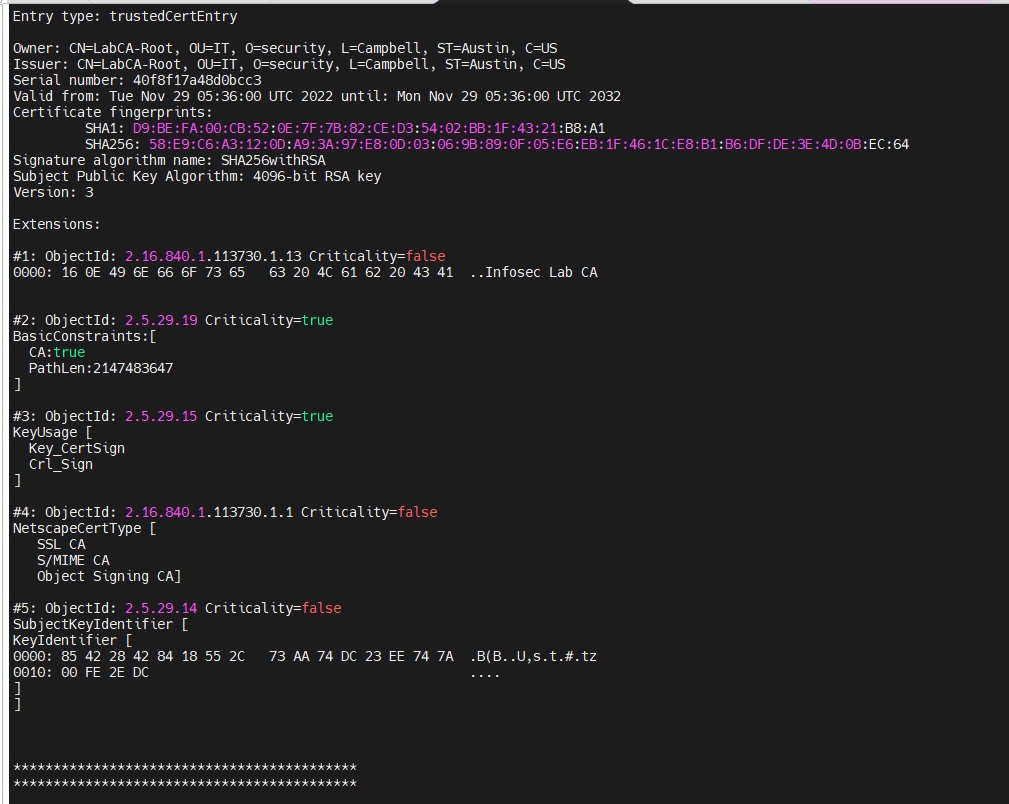

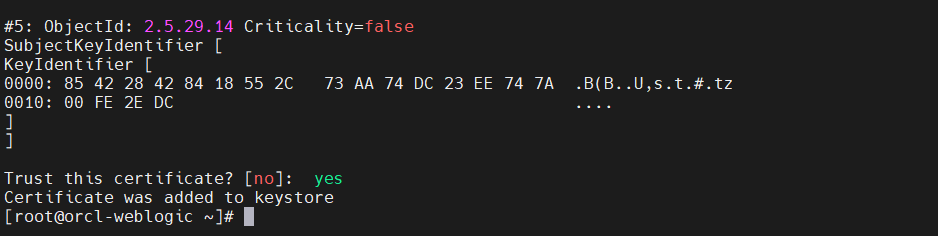

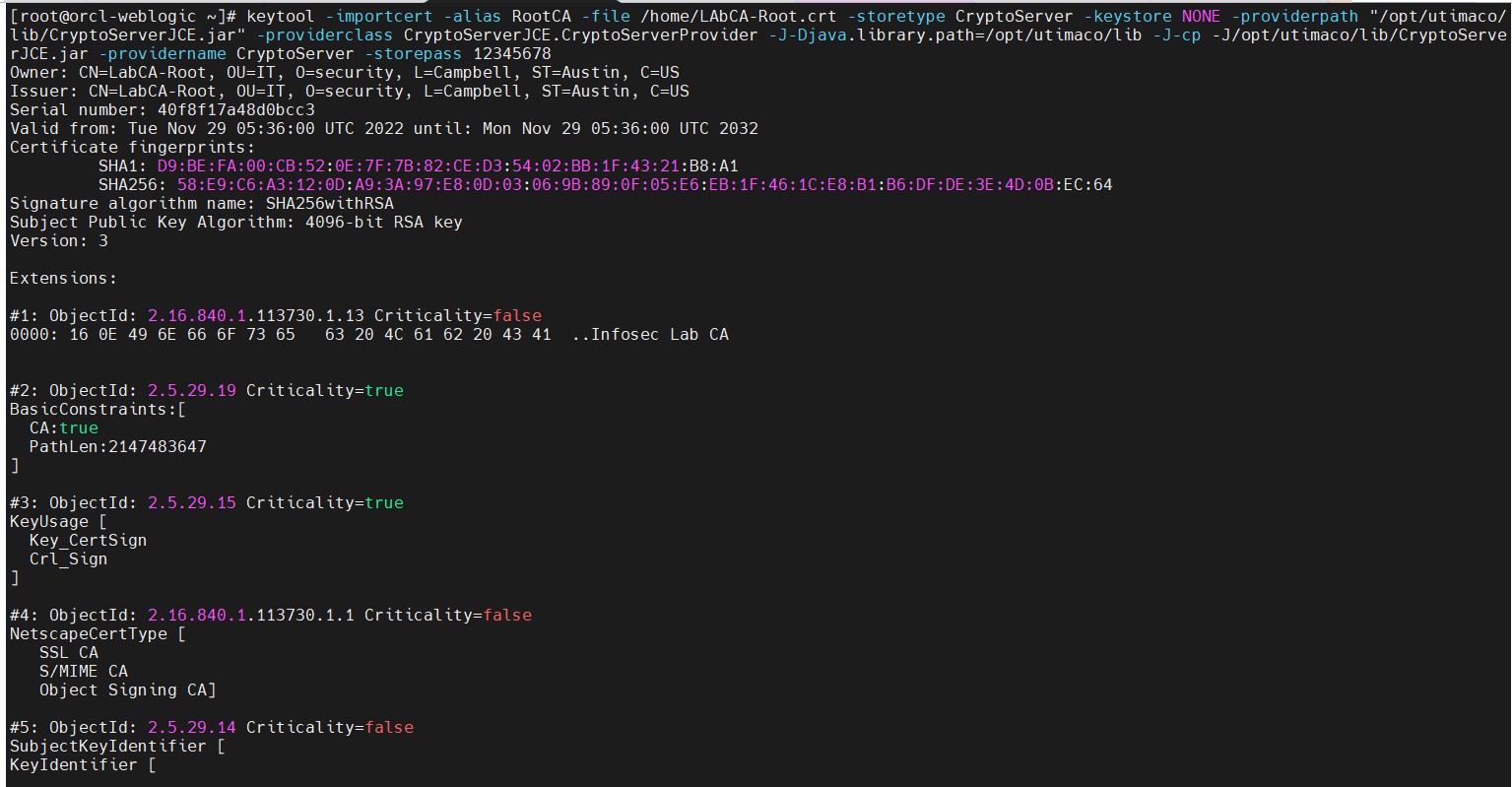

Importing root certificate into keystore

  1. Import the signed certificate reply using the command below.

›_ Console

# keytool -importcert -alias weblogiceckey -file /home/weblogic_demo.pem

-storetype CryptoServer -keystore NONE -providerpath "/opt/utimaco/lib/CryptoServerJCE.jar" -providerclass CryptoServerJCE.CryptoServerProvider -J-Djava.library.path=/opt/utimaco/lib -J-cp - J/opt/utimaco/lib/CryptoServerJCE.jar -providername CryptoServer - storepass 12345678

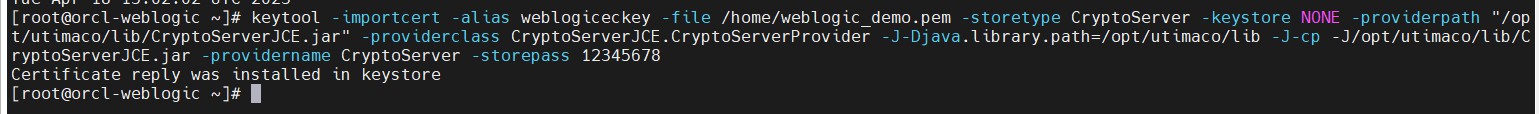

Import certificate reply into keystore

  1. List the keystore entries.

›_ Console

# keytool -list -keystore NONE -storetype CryptoServer -storepass 12345678 -providerpath "/opt/utimaco/lib/CryptoServerJCE.jar" - providerclass CryptoServerJCE.CryptoServerProvider -J-Djava.library.path=/opt/utimaco/lib/ -J-cp - J/opt/utimaco/lib/CryptoServerJCE.jar -providername CryptoServer -v

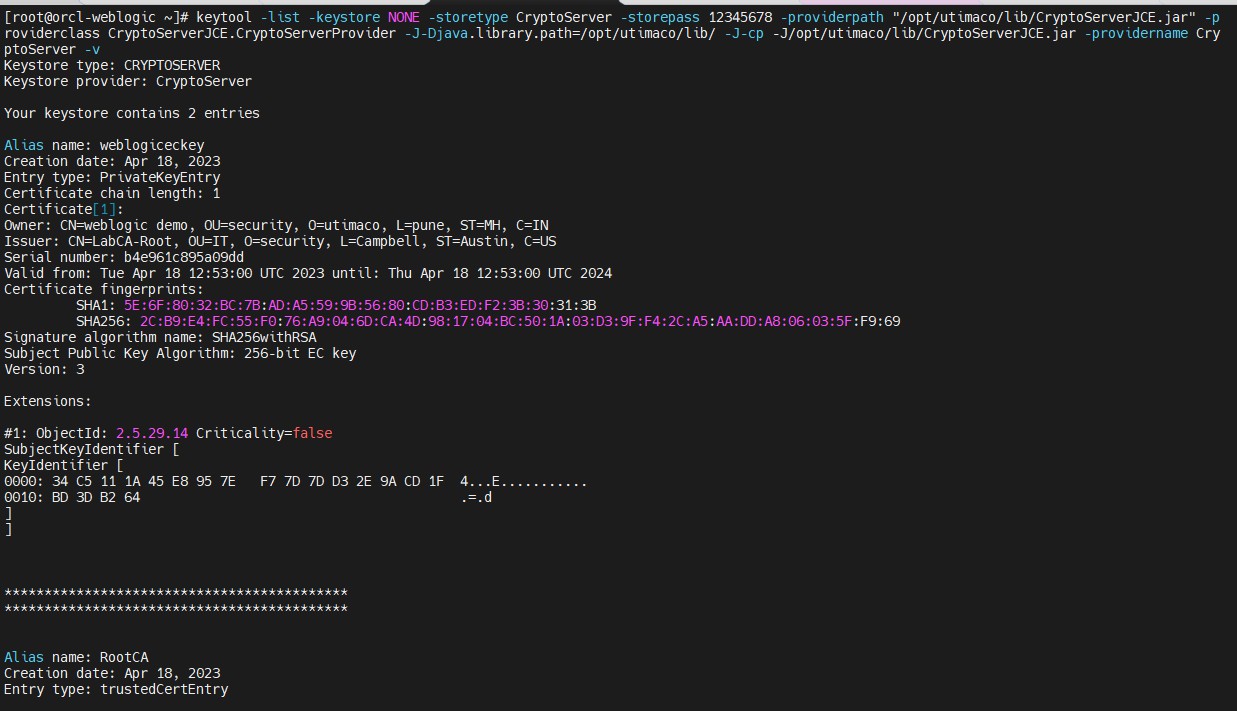

Listkeys output
