Configuration on Logstash

  1. Make sure Elasticsearch and Kibana are up and the Elasticsearch dashboard is accessible.

  2. Make sure ca.crt and ca.key files (created during Elasticsearch configuration) are available in the C:\elasticsearch\config\certs folder.

  3. Create an instance.yml file in the C:\logstash\logstash-certs directory and update it with the following configuration:

YAML
instances:
  - name: "server"
    ip:
      - "Logstash host IP"
    dns:
      - "<hostname>"   # hostname of Logstash machine
      - "localhost"

Replace <logstash_machine_ip> and <hostname> with the actual Logstash host IP and hostname of the Logstash server.

  1. Open PowerShell as an administrator from C:\elasticsearch\bin and enter the following command to generate a Logstash TLS certificate signed by CA:

.\elasticsearch-certutil.bat cert --pem --in "C:\logstash\logstash-certs\instance.yml" --out "C:\logstash\logstash-certs\logstash-certs.zip" --ca-cert "C:\elasticsearch\config\certs\ca.crt" --ca-key "C:\elasticsearch\config\certs\ca.key"

  1. Unzip logstash-certs.zip to C:\logstash\certs.

  2. Update the logstash.conf file in the C:\logstash\config directory with the following configuration:

input {
 tcp {
    port => 6514
    ssl_enabled => true
    ssl_certificate => "C:/logstash/certs/server.crt"
    ssl_key  => "C:/logstash/certs/server.key"
    ssl_client_authentication => none
    mode => "server"
  }
}
output {
  elasticsearch {
    hosts => ["https://<elasticsearch host IP>:9200"]
    user => "<elasticsearch user>"
    password => "<elasticsearch password>"
    ssl_enabled => true
    ssl_certificate_authorities => "C:/elasticsearch/config/certs/ca.crt"
    index => "eskm-tls-%{+YYYY.MM.dd}"
  }
 stdout => { code => rubydebug}
}

Replace <elasticsearch host ip> with the configured Elasticsearch server,<elasticsearch_user> and <elasticseacrh_password> with the created superuser credentials


  1. Open PowerShell as an administrator from C:\logstash\bin and enter the following command to start Logstash:

.\logstash.bat -f C:\logstash\config\logstash.conf

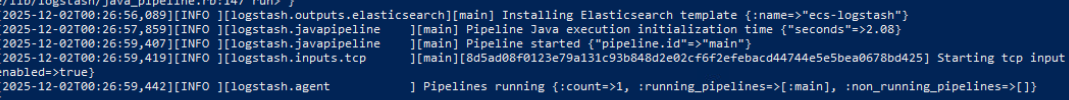

  1. Wait until the log displays Pipelines running, which indicates Logstash is fully operational.



Logstash started


  1. Open PowerShell as an administrator from C:\logstash\certs and enter the following command to generate a client certificate:


PowerShell
openssl pkcs12 -export -in server.crt -inkey server.key -certfile "C:/elasticsearch/config/certs/ca.crt" -out eskm-syslog-client.p12


If you are using a different machine to access the ESKM Web UI, copy the CA certificate and the client certificate to that machine so they can be uploaded to ESKM.
