Sign Reverse Lookup Zone

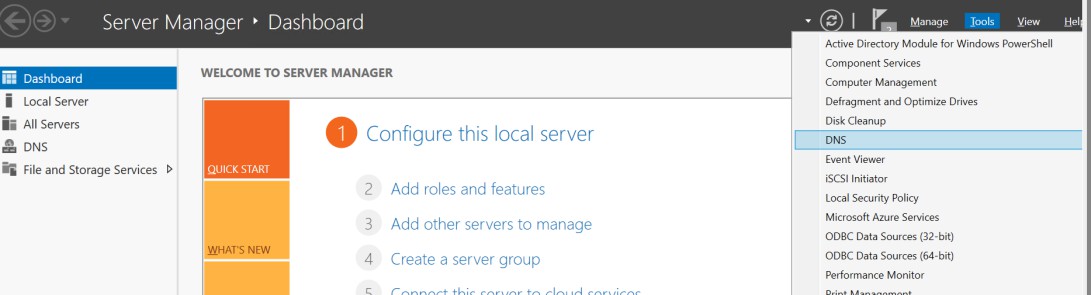

  1. Click on Server Manager by selecting Start > Server Manager > click Tools and open DNS Manager.


Server Manager

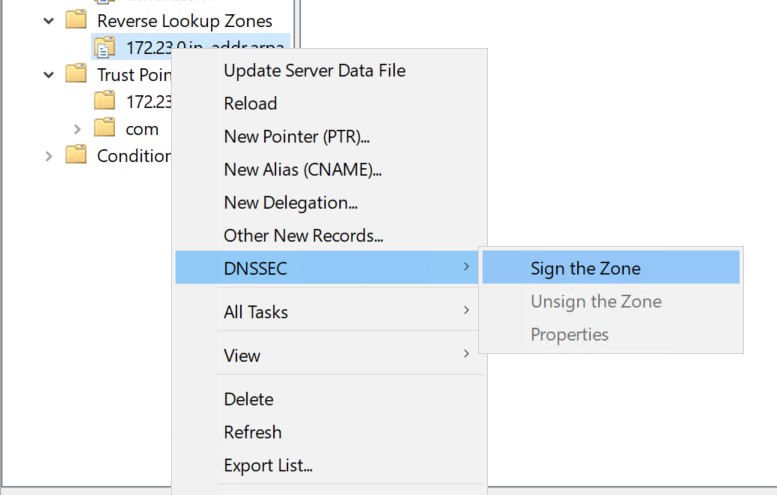

  1. In the DNS Manager, browse to your Domain name, then right click on Reverse Lookup Zone.

  2. Click DNSSEC and then click Sign the Zone.


Sign the Zone

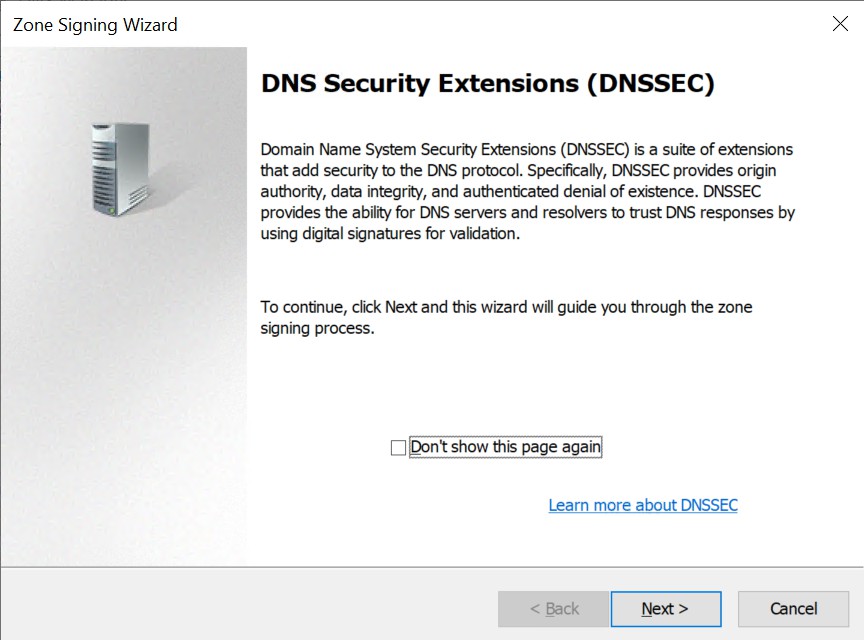

  1. In the Zone Signing Wizard, click Next.


Zone Signing Wizard

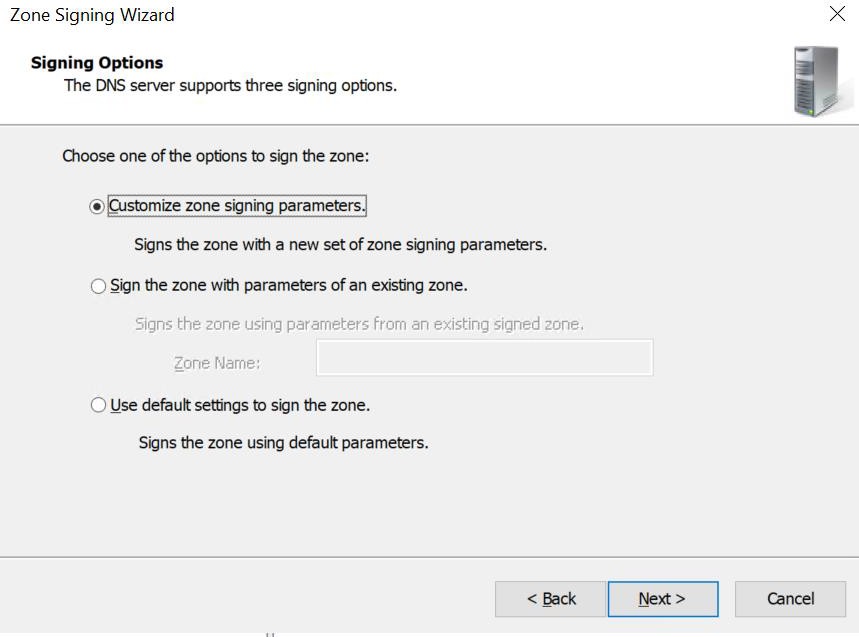

  1. On the Signing Options interface, click Customize zone signing parameters, and then click Next.


Zone Signing Parameters

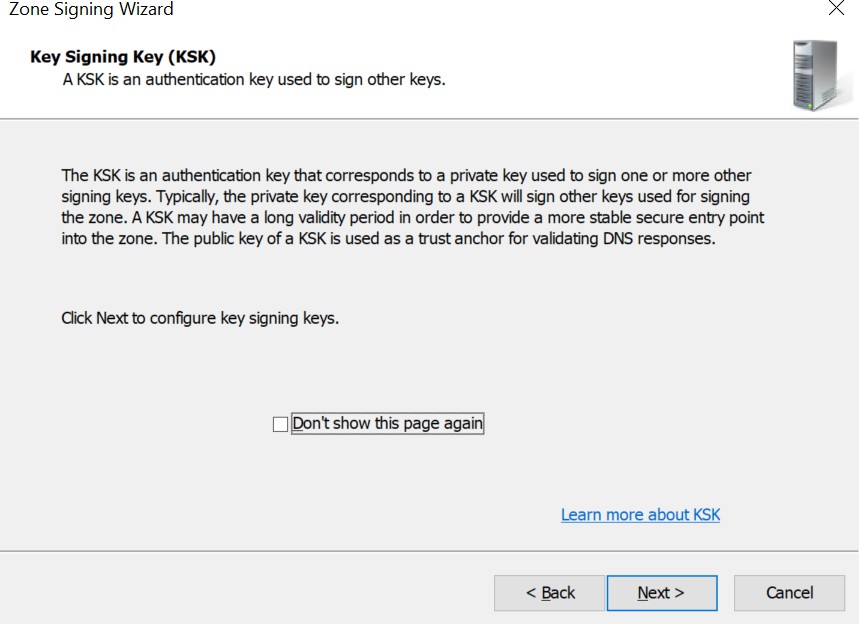

  1. On the Key Signing Key (KSK) Wizard, click Next.


Key Signing Key (KSK) Wizard

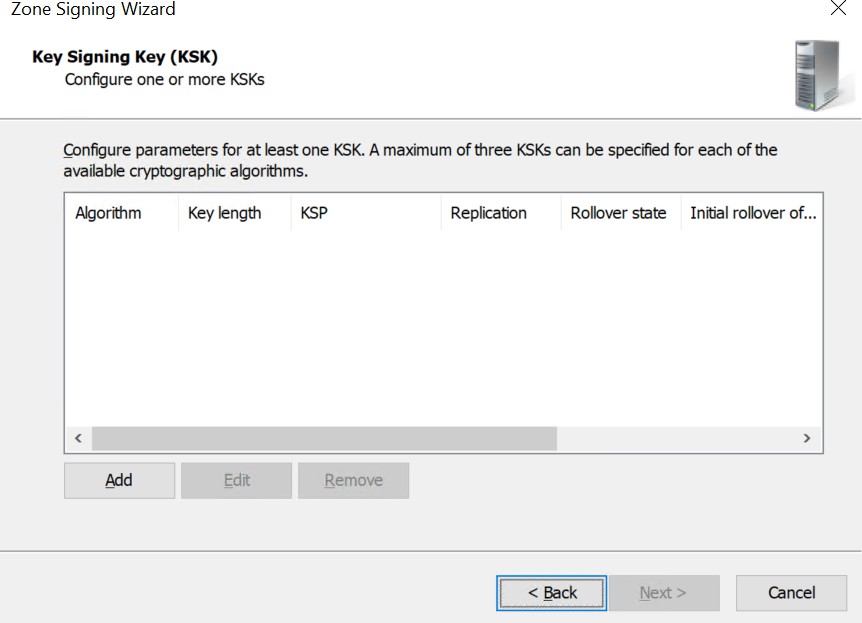

  1. On the Key Signing Key (KSK) Wizard, click Add.


Key Signing Key (KSK) Wizard

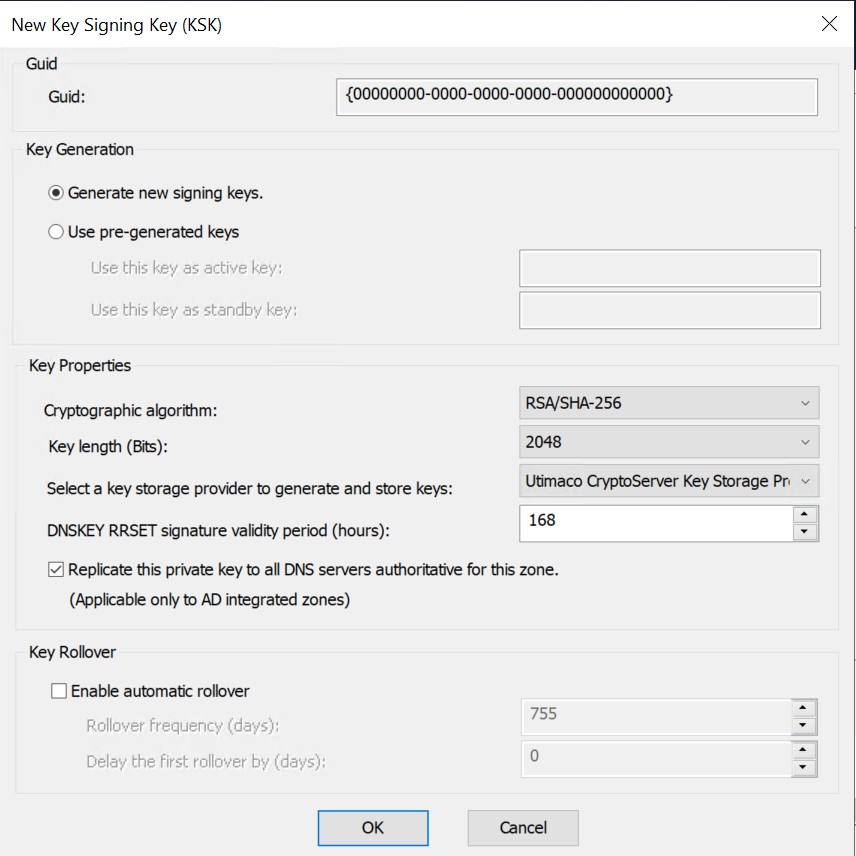

  1. On the New Key Signing Key (KSK) Wizard, from the dropdown of Select a key storage provider to generate and store keys, select Utimaco CryptoServer Key Storage Provider.

  2. Provide other information such as Cryptographic Algorithm and Key Length and then click OK.

  3. Uncheck the rollover option.


New Key Signing Key (KSK) Wizard

Automatic Key Rollover is not supported with Utimaco HSM. The user has to manually rollover the keys before its expiry.

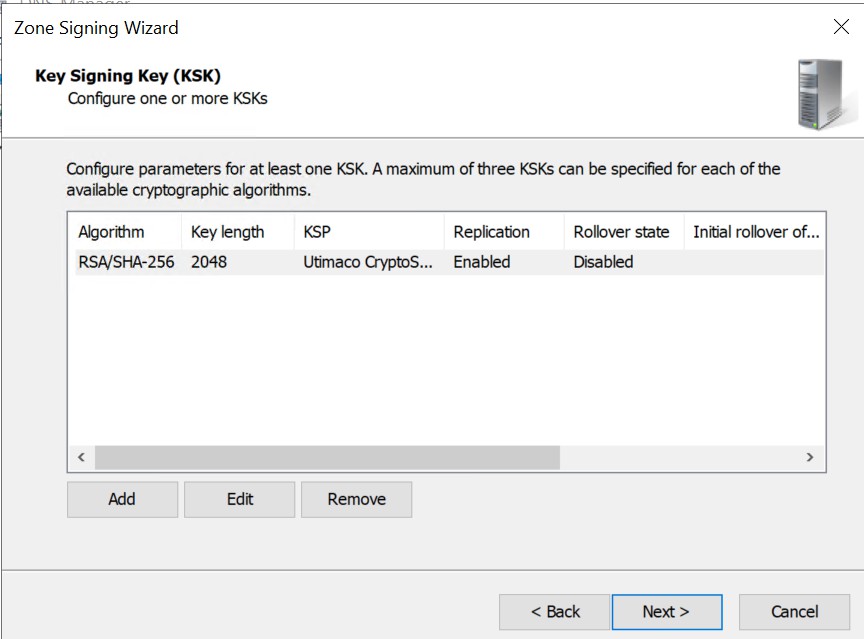

  1. On the Key Signing Key (KSK) Wizard, click Next.


Key Signing Key (KSK) Wizard

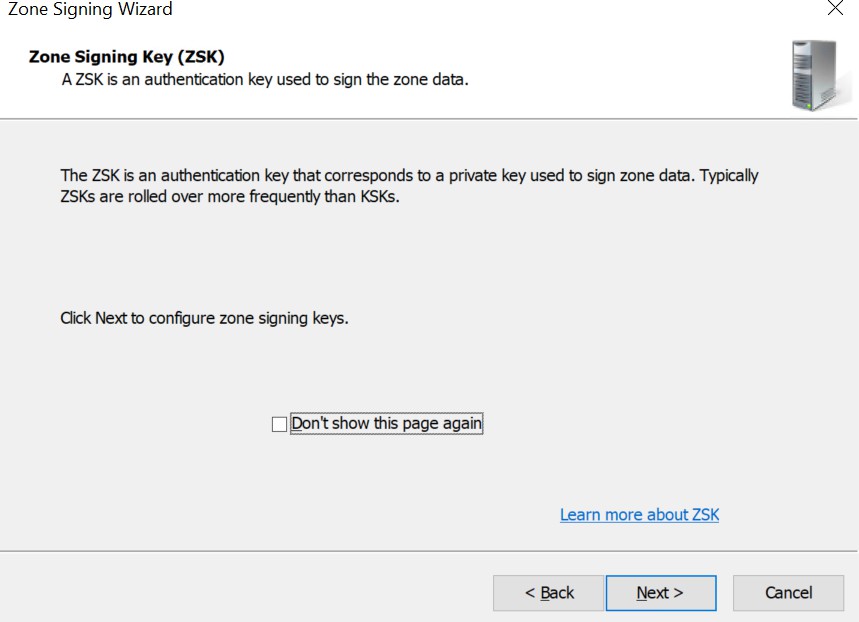

  1. On the Zone Signing Key (ZSK) Wizard, click Next.


Zone Signing Key Wizard

  1. On the Zone Signing Key (ZSK) wizard, click Add.

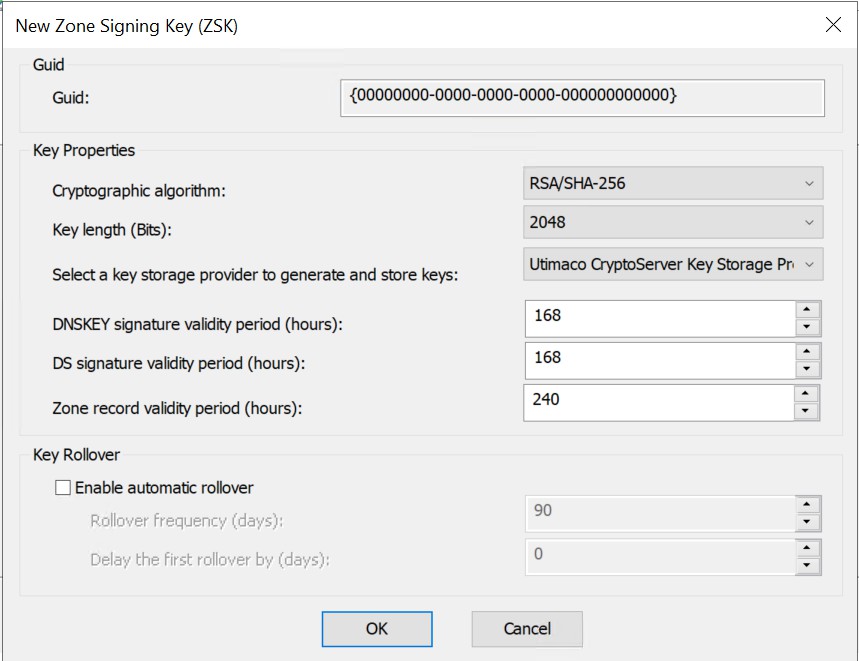

  2. On the New Zone Signing Key (ZSK) Wizard, from the dropdown of Select a key storage provider to generate and store keys, select Utimaco CryptoServer Key Storage Provider.

  3. Provide other information such as Cryptographic Algorithm and Key Length and then click OK.

  4. Uncheck the rollover option.


Zone Signing Key (ZSK) Wizard

Automatic Key Rollover is not supported with Utimaco HSM. The user has to manually rollover the keys before its expiry.

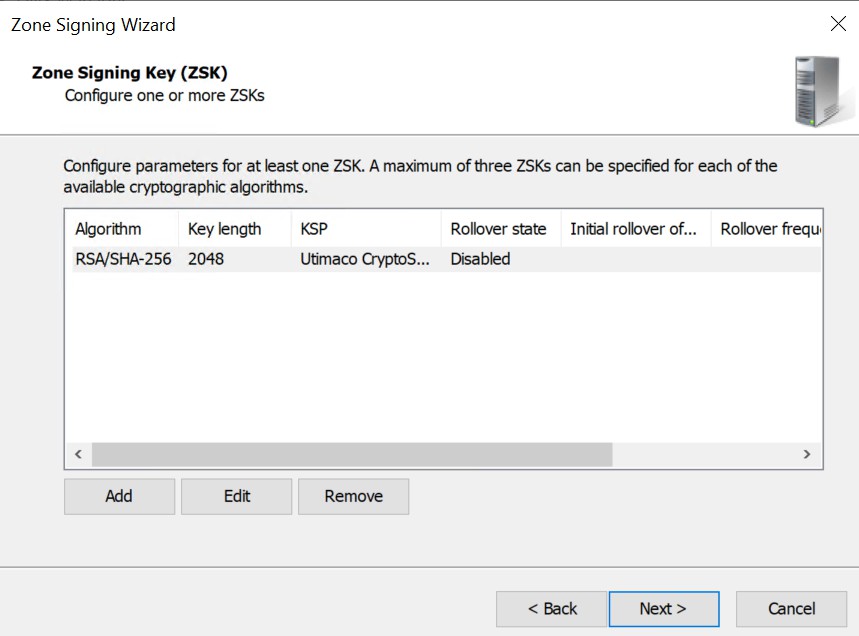

  1. On the Zone Signing Key (ZSK) Wizard, click Next.


Zone Signing Key (ZSK) Wizard

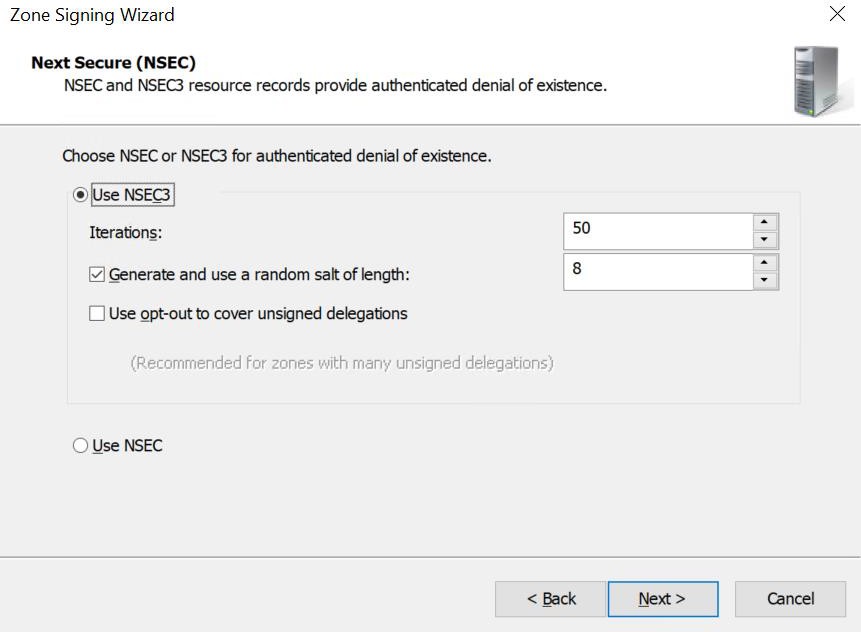

  1. On the Next Secure (NSEC) Wizard select use NSEC3, click Next.


Next Secure (NSEC) Wizard

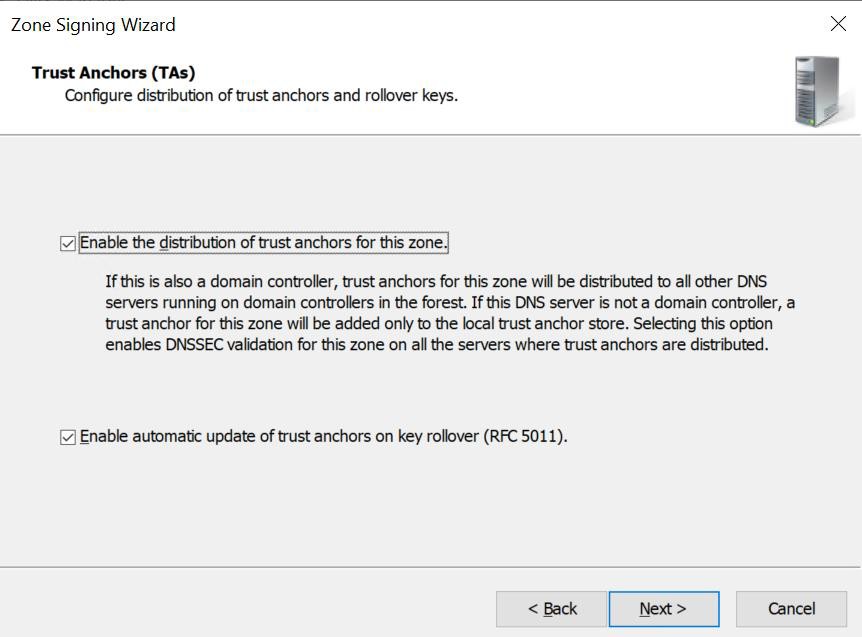

  1. On the Trust Anchors (TAs) Wizard, check the Enable the distribution of trust anchors for this zone check box, and then click Next.


Trust Anchors (TAs) Wizard

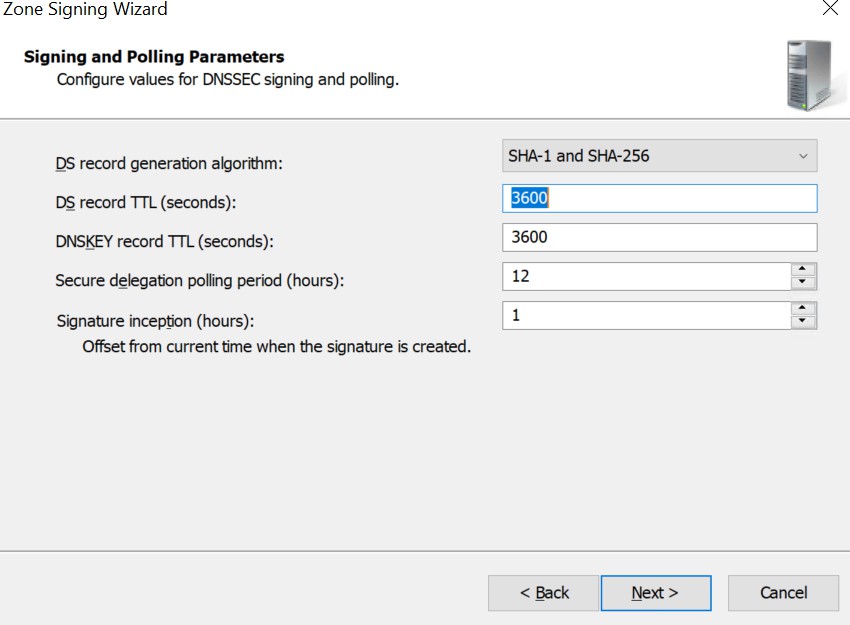

  1. On the Signing and Polling Parameters wizard, click Next.


Signing and Polling Parameters Wizard

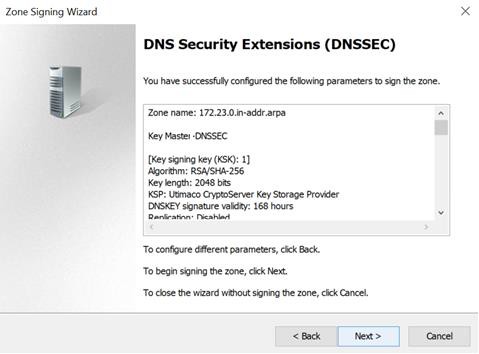

  1. On the DNS Security Extensions (DNSSEC) Wizard, click Next, and then click Finish.



DNS Security Extensions (DNSSEC) Wizard

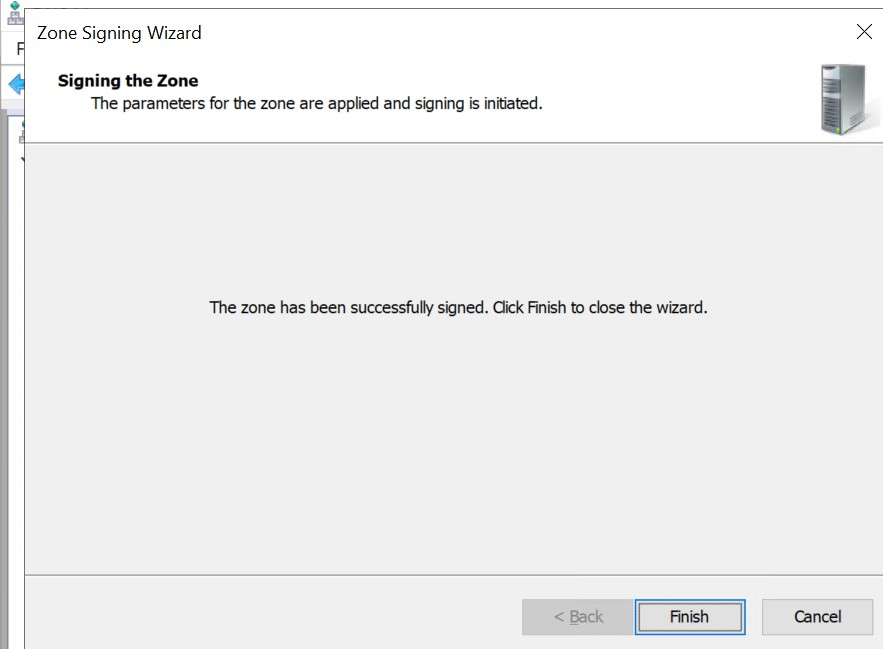

Signing the Zone
